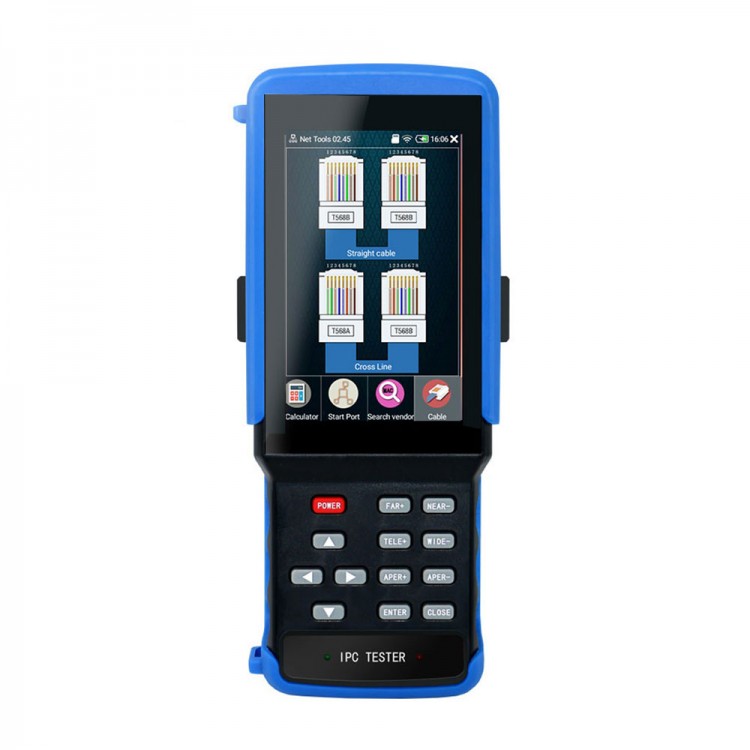

4K H.265 CCTV Tester Monitor AHD CVI TVI Analog CVBS IP Camera Tester IPC-9310S

4K H.265 CCTV Tester Monitor AHD CVI TVI Analog CVBS IP Camera Tester IPC-9310S

Description:
It adopts a smart operation system, mainly used for the installation and maintenance of network monitoring cameras, analog video monitor cameras and other security monitoring equipment, the instrument adopts a 4-inch HD IPS full view display screen, can clearly display the IP and analog camera video images. It is built in a variety of network tools including that for PING, IP address scan, and standard PoE power output, DC12V/3A power output, it is an essential tool for security monitoring projects and integrated wiring projects.

Main Functions:
- 2 in 1 IPC/Analog
- Touch screen + buttons + virtual keyboard
- One -click activation for Hikvision
- Rapid ONVIF function
- For PING, IP address scan

Features:
- One-click batch activation for Hikvision
- IP rapid detection
- Coaxial HD
- Camera focus test
- Channel name modification
- 12V 3A large current DC output
- For Android system
- PoE power
- 4-inch 800x480 capacitive touch screen. HD full-view screen
- One-click camera activation
- Horizontal and vertical screen switch to browse images
- Support IP PTZ control
- Support 4K H.265 HD preview
- Support for ONVIF, Hikvision, Dahua, ACTI and other more than 100 manufacturers of private camera network protocol testing

More Details:
4K H265 Main Stream Test:
Bid farewell to 4K H265 sub-stream test. It uses a new hard decoding technology, which can directly play 4K H265+/H265, H264, MPEG4, MJPEG network monitoring video images, picture quality is delicate and smooth, and the details are clearly visible.

Extreme-speed Version of IP Detection, One-key Drawing:
Using new IP full-segment detection technology, the efficiency of IP detection is increased by 3-5 times, greatly improving engineering efficiency. Automatically change the IP of the instrument to the same network segment as your camera. Without manual operation, it automatically jumps to ONVIF one-click image. Automatically log in, automatically record user name and password, support some camera password cracking, automatically identify inactive cameras for Hikvision, new cameras for Hikvision automatically add ONVIF protocol, one-click activation, can generate test reports.

Coaxial HD Upgrade Version 4.0 Test (Optional Module):
TVI coaxial HD for Hikvision supports up to 8MP resolution 3840*2156 15P, the image is clear and smooth, fully restores high-definition picture quality, supports image zooming, taking pictures, video playback, support coaxial video control menu call.

5MP AHD Camera:
AHD coaxial high-speed support up to 5MP, resolution up to 2560x1944@20fps, the image is clear and smooth, fully restore high-quality image, support image zooming, taking pictures, video playback, support coaxial video control menu call.

8MP CVI Camera:
CVI coaxial HD for Dahua support up to 8MP, resolution up to 3840x2156 15P, the image is clear and smooth, fully restore high-quality image, support image zoom, take pictures, video playback, support coaxial video control menu call.

Network Cable TDR Quality Detection:
It can directly test the status of network cable pair, and can directly display the parameters of network cable length, attenuation, quality, reflectivity, and impedance. The quality of network cable can be half a section at a time, and the maximum test length is 200 meters.

Network Cable Sorting Continuity Test:
It can directly display network cable continuity and connection status. The built-in network cable sequence diagram can intuitively identify whether your cable is the correct network cable or available network cable through the result icon.

WIFI Hotspot & Screen Projection:
Support wifi hotspot, you can debug wireless camera, and support screen projection, you can share the screen of the current instrument. Support for Android, Apple, computer, Winphone, and BlackBerry to watch.

Highly Customized System for Android:
More than 800 system optimizations, allowing the system to play various video images more smoothly, and support users to install various applications for Android independently. Support for Youku, iQiyi and other applications.

Add Virtual IPC Camera Function:
Connect CCTV tester to NVR recorder, NVR recorder can scan and identify virtual network camera, and can play image video, used to diagnose recorder function and diagnose line problems.

IPC Brand Professional Tool Customization:
There are many IP cameras on the market, and there are some differences in the agreements of various manufacturers. IPC-9310S specializes in customizing special software for various manufacturers to modify IP, view images and other operations.

PPPOE Dial-up Test:
It can realize PPPOE network dial-up test, which is convenient for broadband installation and debugging.

Focus Test & Lens Simulation:
●Focus test: You can clearly see the current signal information, as well as the focus quality and brightness. The instrument will analyze the overall picture in real time. The larger the focus value, the better the effect. The focus judgment result can be seen intuitively.
●Lens simulation: used to simulate the screen display area of different focal lengths. The lens can be divided into multiple sizes of 2.8 ~ 25mm lens, used to guide the purchase of lenses. It is not displayed by default, and can be configured and opened in the corresponding camera viewing screen.

Network Camera Test:
●Image display, magnification, video, photo and playback
●Support H265+, H265, H264, MPEG4, MJPEG and other formats, maximum support 12MP
●Support ONVIF camera test, stream function, free choice of main stream/sub stream
●Customizable private agreement
●RTSP playback
●Portable client software
●Support GB28181 national standard
●One-click batch activation for Hikvision camera
●The camera IP address can be changed
● Built-in browser

Analog Camera Test:
●Image display, magnification, video, photo and playback
●Analog video image display, NTSC, PAL automatic adaptation and standard display
● Supports more than 30 PTZ PTZ control protocols. Support for PELCO-P, PELCO-D, SAMSUNG, etc.

Customized Tools For Hikvision and Dahua:
Built-in ONVIF test tool, support PTZ control function; customizable network camera protocol, currently supports more than 100 manufacturers of cameras. For Dahua, Hikvision, Samsung and so on.

FTP Server Function:
You can read data without a card reader.

Silicone Protective Sleeve:
Not afraid of the loss caused by falling or collision.

Technical Parameters:
- Product model: IPC-9310S
- Control & operation: Capacitive touch screen + button + virtual mouse
- Touch screen: 4 inch G+G structure capacitive screen
- LCD screen: 4 inch resolution 800x480 IPS HD full viewing angle
- Ethernet port: 10/10/1000M adaptive
- WIFI: Built-in wireless WIFI, speed 150M
- IP monitoring test: Support for ONVIF tools Dahua, Hikvision, ACTI, Samsung and other private agreements of more than 30 manufacturers, can be customized. Support mobile client installation, support maximum resolution 4K, real-time browsing images without delay.
- CVBS analog monitoring test: 1 CVBS analog input, support PAL/NTSC standard self-adaptation
- Video image enlargement: Mobile high-definition video image can be enlarged in real time, the maximum magnification is 8 times
- Photographing, video recording, and playback: All video images support taking photos and video recordings. Support H265 code storage
- PTZ control: Support for more than forty protocols such as Pelco-D/P, Samsung, Panasonic, etc.
- Internal SD storage space: 8G
- Working temperature: -10℃ to 50℃
- Working humidity: 30%~90%
- Tester Dimensions: 23 x 9.2 x 4.1 cm

Package Included:
- 1 x Set of IP Camera Tester
