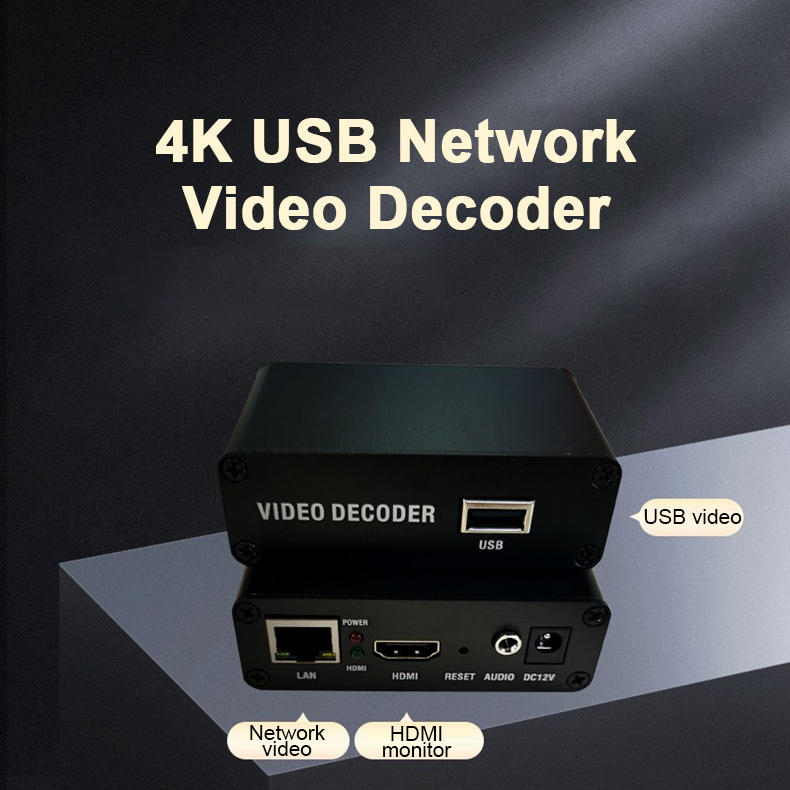

4K H265 H264 Audio Video Decoder HD USB Network Video Decoder Suitable for IP Cameras & Dome Cameras

4K H265 H264 Audio Video Decoder HD USB Network Video Decoder Suitable for IP Cameras & Dome Cameras

Features:

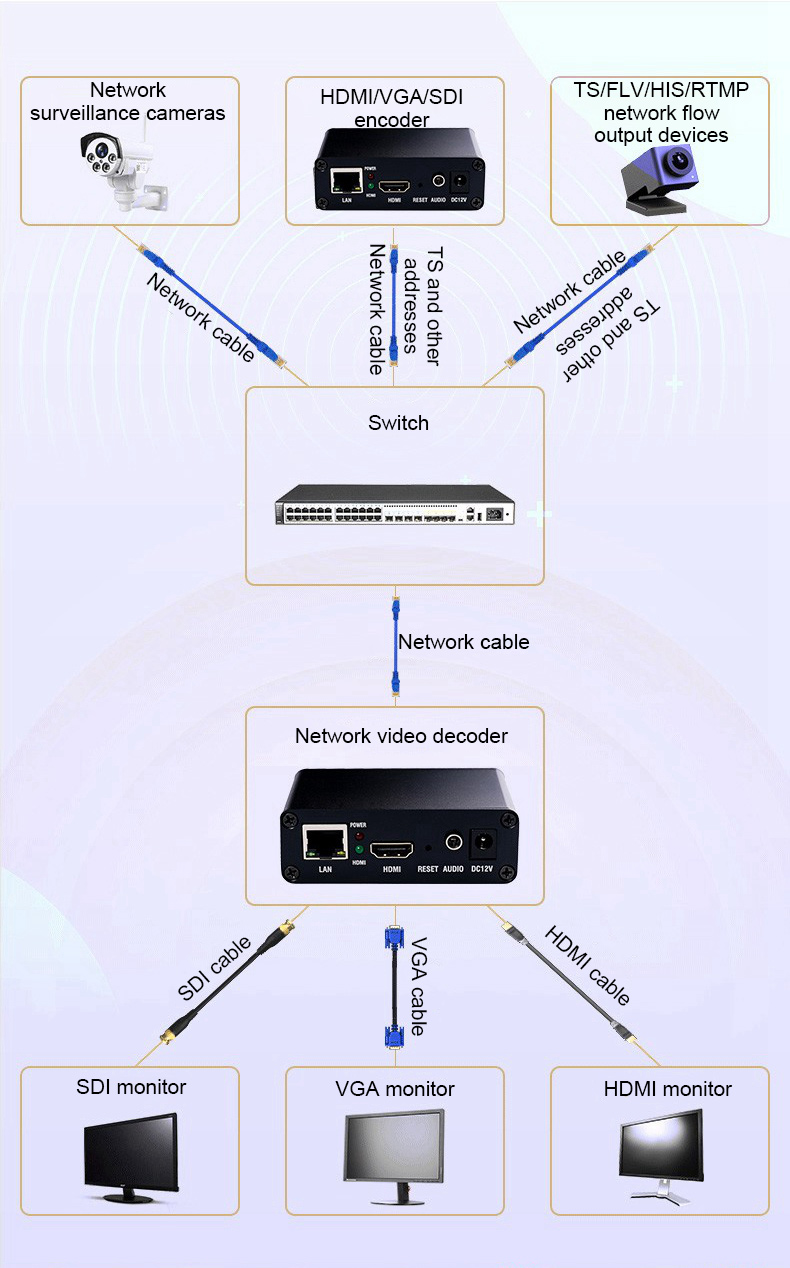

- H.265/H.265 4K ultra-low latency decoders can output SDI/VGA/HDMI signals
- The decoder supports 4 network flows, 4-screen display and layout settings
- Powerful video decoder: Decode 1-channel images of 4K 30 frames and output 3840*2160P30 image. The decoded video format is H.265/H.264
- Multiple protocols, including HTTP, can be decoded
TS/HLS/FLV/RTSP/SRT/RTMP/RTMPS/UDP/RTP/PTE
- Can connect to cameras for HIKVISION, Dahua, Sony, XM and Panasonic
- It can decode all IP cameras for ONVIF protocols and is compatible with 99% of IP cameras on the market, such as for Panasonic, Samsung, Sony, Hikvision, Dahua, YAAN and Bosch. Support Topsee, XM and JUAN network HD modules. It can also be used with other cameras for ONVIF network protocols and dome cameras

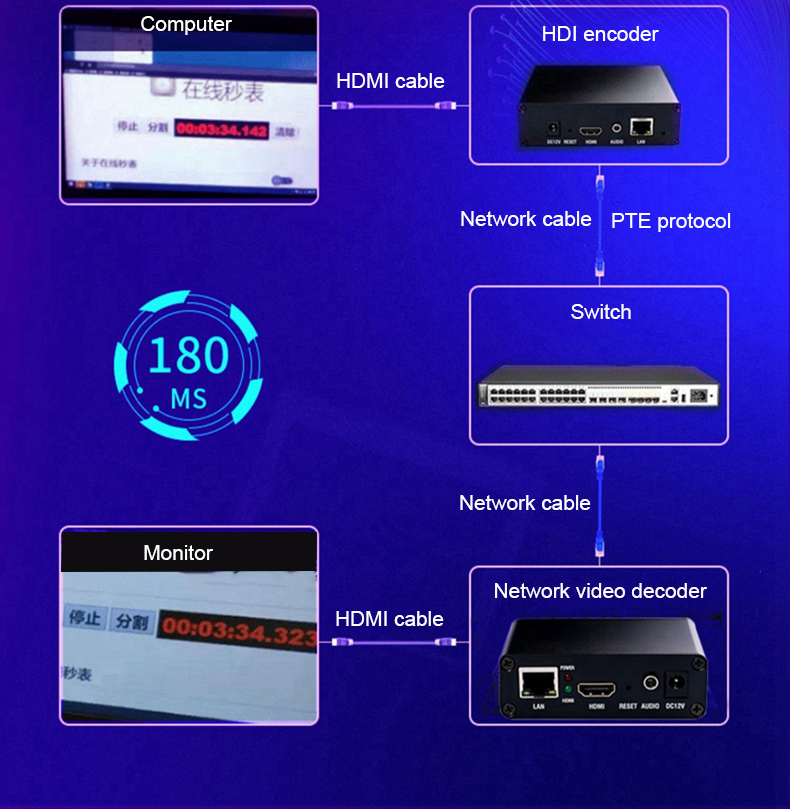

- Low latency: The decoder can be used with an encoder. Its transmission delay range is 80-200 milliseconds. In our test, the delay is 180MS
- Directly decode the SRT pull address
- OSD display: Users can add logo, time and text (including scrolling text) to multiple areas of the video screen. Support HTTP TS, HTTP FLV, RSTP, RTMP and multicast video steaming
- Customized screen layout: You can customize the layout of the screen through the decoder background configuration page. 1. Full screen mode: channel 1/2/3/4. 2. Quad screen. 3. Three screens at the top. 4. Three screens at the bottom. 5. Three screens are placed on the left side. 6. Three screens are placed on the right side
- Customizable screen and coordinate. Comes with a clipping function
- Applied to industries including network video teaching, large-screen splicing, IP TV, waiting hall signboard, hospital information industry and traffic command center

Specifications:
Media Access:
- Standard protocols: RTSP/HTTP TS/HTTP FLV/HTTP HLS/RTMP/UDP/SRT
- Private protocol: HTTP PTE

Video Decoding:
- Type: H.265/H.264
- Frame rate: 1-60
- Bitrate: 32-32000kbit
- Resolution: up to 2160P at 30
- Numbers of video input ports: 1 to 4

Audio Decoding:
- Type: G711A/G711U/AAC+/AAC++/MP2/MP3
- Number of channels: single/dual
- Sample rate: 8000/11250/22500/44100/48000Hz
- Numbers of audio input ports: 1

Video Output:
- HDMI: 1080P at 60/1080P at 50/1080P30/1080P25/720P60/720P50/576P50/480P60
- Color: Brightness, contrast, chromaticity, saturation, and adjustable volume

Audio Output:
- HDMI: 48KHz dual channel output
- 3.5MM: Dual channel output
- Enable: Enable/Off

General Parameters:
- Network: Gigabit
- Configuration management: via WEB
- Power supply: 12V/DC, 2A
- Power consumption: <1W
- Operating temperature: -20°C to +60°C
- Operating humidity: <90% and non-condensing

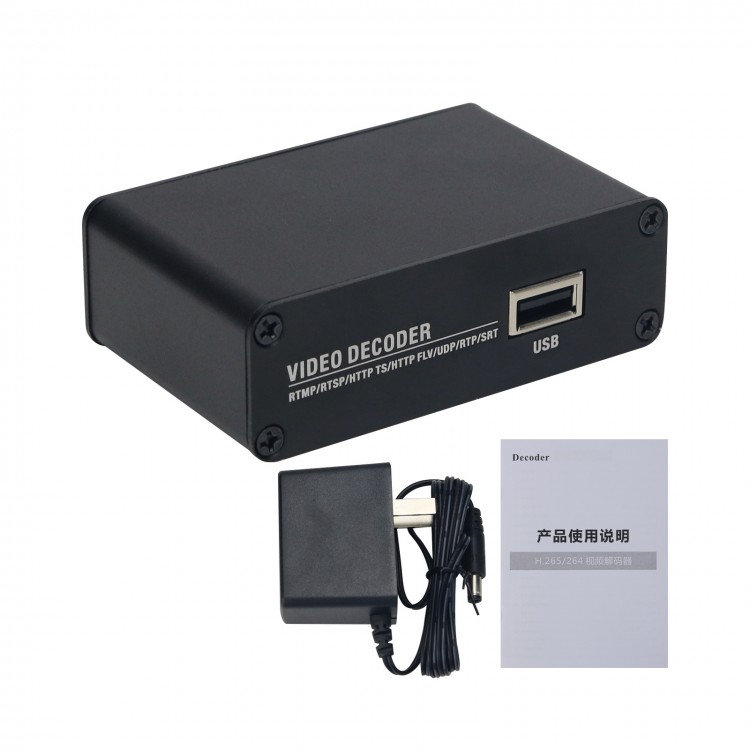

Package Included:
- 1 x Video decoder
