4K HDMI 5.1 Audio Decoder Bluetooth 5.0 Lossless Player For DTS U Disk RH-699X USB Sound Card Version

4K HDMI 5.1 Audio Decoder Bluetooth 5.0 Lossless Player For DTS U Disk RH-699X USB Sound Card Version

USB Sound Card Version:
Based on original functions, this version enables USB connections to your PC and decoder. After installing sound card driver, sound can be directly output from USB to your decoder for decoding.

Download Driver Here: https://pan.baidu.com/s/1M-WE0mGk5qiipB5fwkomUQ Password: va56

Upgraded Functions:
- It only takes three seconds to start playing and decoding.
- Support U disk to play any music. Output sound through optical fiber and coaxial or 5.1 interface.
- Support folder and file browsing and playing, you can choose any song to play.
- Larger screen display with light brown acrylic glass, protecting your eyes.
- Multiple buttons on the panel to support the operation of all functions.
- Support six output modes, including 5.1, 5.0, 4.1, 4.0, 2.1 and 2.0 channel.
- You can fine-tune 15dB volume per channel.

Features:
1: Supports one digital coaxial input, one digital optical fiber input, two HDMI inputs, one ARC audio return input, one AUX analog stereo input, one Bluetooth 5.0 input and one USB2.0 interface input. Different signal sources can be switched freely.
2: Supports a set of 5.1 channel analog audio output, supports 6 output modes of 2.0, 2.1, 4.0, 4.1, 5.0 and 5.1 channels when decoding and playing any signal input, and can be flexibly configured according to the number of speakers.
3: Support one path of optical fiber source code output and one path of coaxial source code output, which can be directly connected with power amplifier and active sound box.
4: The latest Bluetooth 5.0 transmission mode can automatically detect and be compatible with Bluetooth devices. PRO version supports BLE mobile phone APP control.
5: 24-bit/192khz audio DSP and fourth generation 24-bit/192khz DAC six-channel chip with power-on reset function.
6: Supports for decoding of Dolby digital AC3, DTS, LPCM, HDCD, PCM, Dolby Digital, Dolby Pro Logic II and other digital audio formats.
7: USB disk multimedia playback is supported, which can play multimedia contents such as 5.1 channel and lossless music, with a maximum capacity of 128G/FAT32 format.
8: Support folder selection for file playback, while the remote controller can also quickly select 1-10 songs for playback.
9: Supports fine tuning of each channel output by 15dB with 5.1 channel noise test function.
10: Support the switching of four playing modes: full circle playing, single circle playing, sequential playing and random playing.
11: High-quality sound quality, low noise, computer mute and reset function, better protection of rear stage and equipment
12: Switch input source with one key, which is convenient and fast to operate. It supports simple operation of panel keys and adjustment of volume with coding knob.
13: LCD display screen, tinted acrylic panel eye protection mode protection, external
multifunctional infrared remote control, everything.
14: The display screen can display the song name, playing progress, number of files, playing mode, file format, volume and output format.
15: All-aluminum brushed 6mm panel, high-end atmosphere is not inferior, all-black metal chassis, stable and decent, not low-key.
16: Power-off memory function, automatically switch to the signal channel used last time after restarting, and USB play memory files before power-off.
17: DC 12V/1A external power adapter is used for power supply, and DC(7-20V) can be used for power supply for wide voltage.
18: Three-dimensional dimensions of the product: 184mm (width) *97mm (depth) *53mm (height).

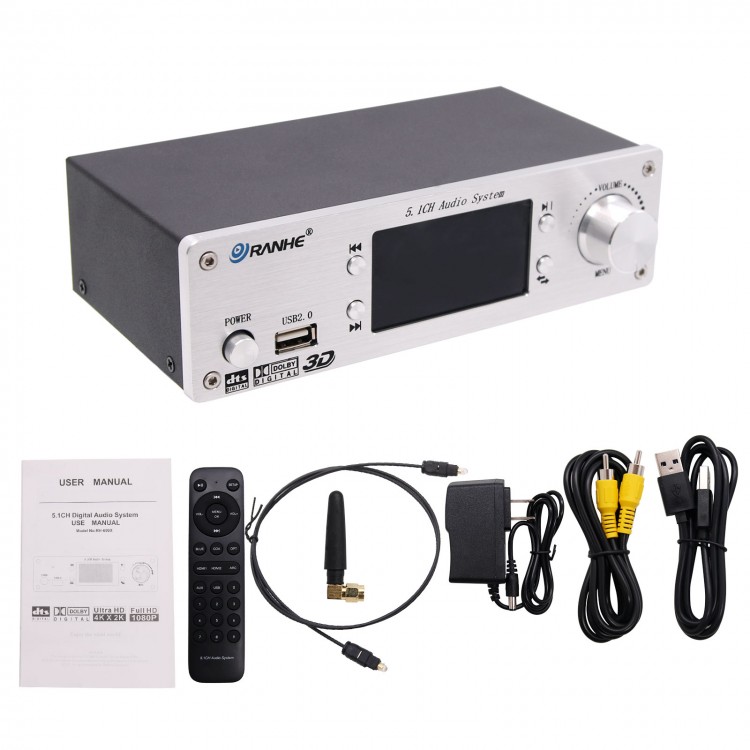

Package Included:
- 1 x Audio Decoder
- 1 x IR Remote Control
- 1 x DC12V/ 1A Power Adapter
- 1 x Bluetooth Receiving Antenna
- 1 x Digital Optical Fiber Cable
- 1 x Digital Coaxial Cable
- 1 x User Manual
