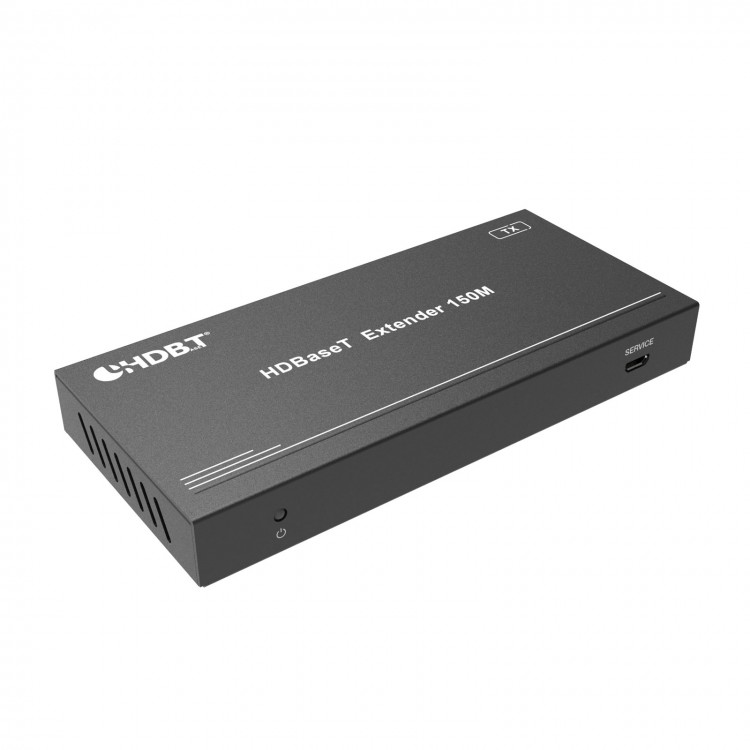

4K HDMI Extender Over Ethernet Cable Cat5e Cat6 18Gbps with Bi-Directional IR 150M HDC-EHB150CG
Description:
This 18Gbps HDMI Extender can extend high definition video / audio signal, RS-232, bi-directional IR, and the distance is up to 394ft / 120 meters between transmitter and receiver via a single CAT5e/6 cable (Using CAT6a/7 cable extends up to 492ft / 150M). It supports resolution up to 4K2K@60Hz 4:4:4, 18Gbps and HDCP 2.2. One HDMI loop port is available for output. It also supports de-embeded audio for L/R audio output and PoC function. In addition, the extender is equipped with two-way IR pass-through which allows for source and display control.
This HDMI extender includes two units: transmitter unit and receiver unit. The transmitter unit is responsible for catching HDMI input signal and carries the signal via one cost effective Cat5e/6 cable, and transmitting / emitting IR control signals. The receiver unit is responsible for receiving the HDMI signal and transmitting / emitting IR control signal.
The extender offers the most convenient solution for HDMI extension via a single Cat5e/6 with long distance capability, and is the perfect solution for any application.
Features:
- HDMI 2.0, HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
- Supports 18Gbps bandwidth
- Input and output video resolution is up to 4k2k@60Hz 4:4:4, extends distance up to 394ft / 120 meters via a single CAT5e/6 cable (Using CAT6a/7 cable extends up to 492ft / 150M)
- One HDMI loop output
- De-embeded audio to analog L/R output

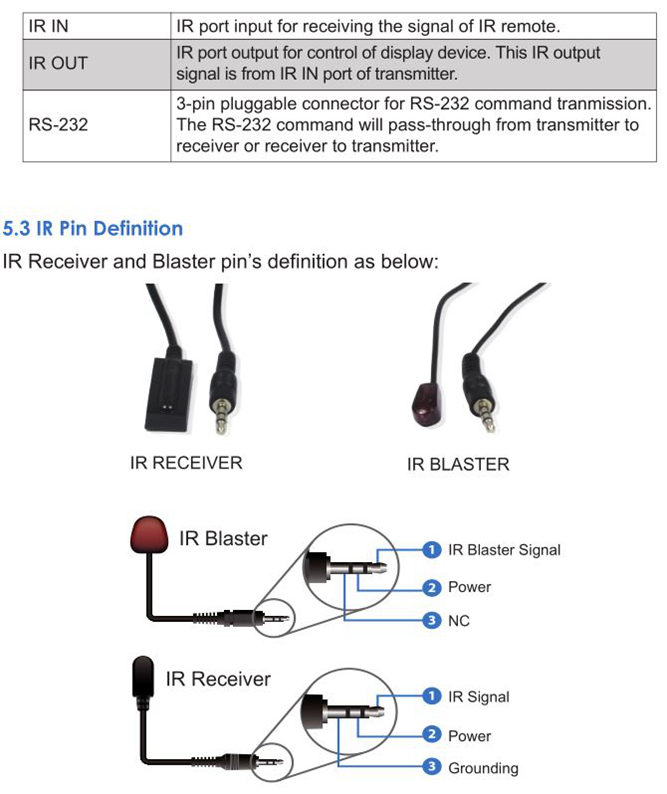

- With bi-directional IR, RS-232 pass-through
- HDR and Vision for Dolby function supported
- Supports PoC (Power over Cable) function, which means that either transmitter or receiver is powered by 24V/1A power adapter, the other doesn't need power supply
- Compact design for easy and flexible installation
Package Included:
- 1 x 18Gbps HDMI Extender (Transmitter)
- 1 x 18Gbps HDMI Extender (Receiver)
- 2 x IR Blaster Cables (1.5 meters)
- 2 x 20~60KHz IR Receiver Cables (1.5 meters)
- 4 x Mounting Ears
- 2 x 3-pin Connectors
- 1 x 24V/1A Locking Power Adapter
- 1 x User Manual
