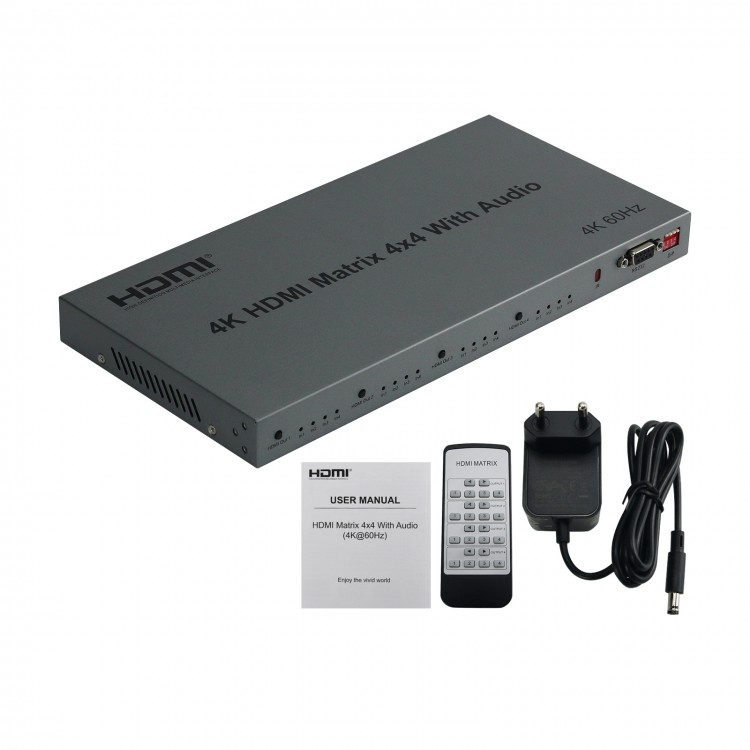

4K HDMI Matrix 4x4 with Audio Separation HDMI 2.0 4K 60Hz HDMI Matrix Switcher 4 IN 4 OUT
Introduction:
The HDMI matrix 4x4 can connect 4 HD signal sources to 4 HD display terminals with optical fiber and stereo headphone output at the same time via HDMI out 1 port.
The matrix allows four HDMI devices to be switched or split easily to four HDMI compatible monitors or projectors.
This HDMI matrix supports lossless transmitting and is widely used in space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
Features:
- Very compact structure
- Stable and reliable
- Via HDMI out1, support 3.5mm earphone jack and optical output at same time
- Economical and cost-effective
- Support 3D
- Support IR Remote Control
- Support RS232 Control
- The four outputs could show the same or different source simultaneously
Specifications:
- HDMI resolution: up to 4K/60Hz
- Support video format: 8/10/12 bit deep color
- Support audio format: for DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
- Max baud rate: 18Gbps
- Input cable distance: ≤ 15M AWG26 HDMI standard cable at 4K/30Hz; ≤ 5M HDMI 2.0 standard cable at 4K/60Hz
- Output cable distance: ≤ 15M AWG26 HDMI standard cable at 4K/30Hz; ≤ 5M HDMI 2.0 standard cable at 4K/60Hz
- HDMI Input: 4
- HDMI Output: 4
- Max working current: 0.8A
- Power adapter format: Input: AC (50HZ, 60HZ) 100V-240V; Output: DC12V/1A
- Operating Temperature range: -15 to +45℃
- Operating Humidity range: 5 to 90%RH (No Condensation)
- Dimension (L x W x H): 276x143x26mm
- Weight: 720g
Package Included:
- 1 x HDMI Matrix 4x4
- 1 x IR Remote Control
- 1 x 12V Power Adapter
- 1 x User Manual
Note:
- Installation parts are optional. If they are needed, please contact us. Thank you!
