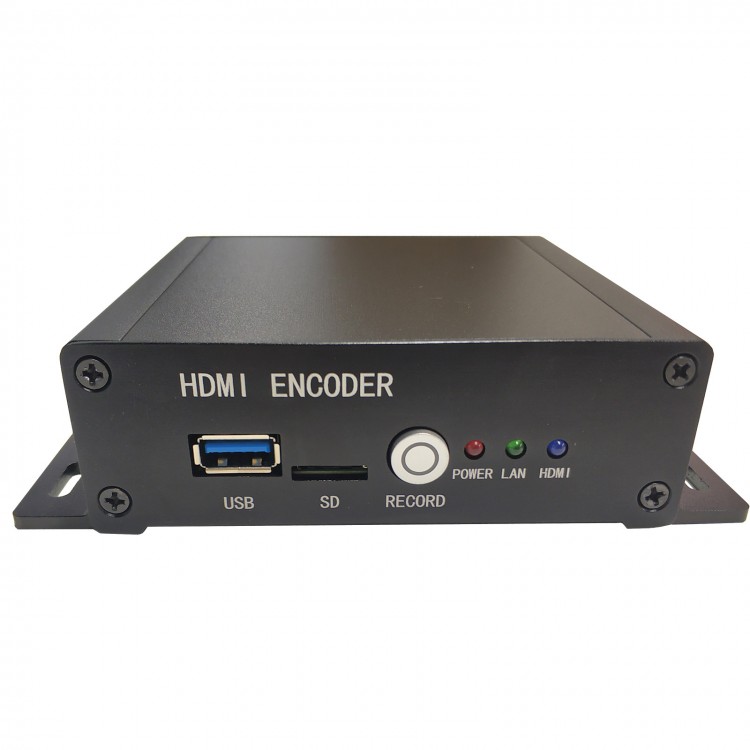

4K HDMI Video Encoder H.265 Encoder 2160P UHD Live Streaming For HLS XE9

4K HDMI Video Encoder H.265 Encoder 2160P UHD Live Streaming For HLS XE9

Advantages:
- 4K H.265 HD video encoder
- Support video cropping
- For connection to NVR for Hikvision and Dahua
- Support for live broadcast platforms
- Multiplayer live broadcast on LAN
- one-button to record video + support USB3.0 or SD card storage
- Each channel supports 1-way main bit stream and 3-way secondary bit stream
- 2160P@30P picture quality

Features:
- 4K H.265 video encoder
- UHD HDMI 2160P@30P input
- Video Preview
- Video Storage: Plug in U disk or SD card. The two cannot be plugged in at the same time. Press and hold RECORD button to start recording, and store it in U disk or SD card. Press and hold the RECORD button again to stop recording.
- Live Streaming: RTMP protocol is used for messaging major online live streaming platforms. Just input RTMP address of live broadcast platform into our configuration webpage.
- Support Live Broadcast Platforms: For aodianyu.com, live assistant, Huya.com, Douyu, Zhangyu, LETV, V.QQ.COM, mudu.tv.
- H.265 encoding
- UHD 2160P: UHD 2160P@30fps video source input encodes the same picture quality.
- HLS Video Stream: Output HLS stream, which can be played directly on browser for Apple.
- Multicast: Multicast can realize multi-person viewing on LAN.
- OSD Graphic Settings: You can add picture logo and text in multiple areas of video, and set color transparency and so on.
- Serial port transparent transmission

Specifications:
Audio & Video Input:
- Video Input: 1-way HDMI
- Audio Input: 1-way HDMI built-in audio, 1-way HDMI external audio

Video Encoding:
- Encoding type: H.265/H.264
- H.264 level: baseline/main/high optional
- Encoding frame rate: 5-60 adjustable
- Key frame interval (frame): 5-300 adjustable
- Bit rate (kbit): 32-32000 adjustable
- Resolution after encoding: 3840x2160/1920x1080/1680x1056/1280x720/1024x576/850x480/720x576/720x540/720x480/720x404/704x576/640x480/640x360/608x448/544x480/480x480/480x384/480x360/480x320/480x272/480x270/400x320/400x224/352x480 /352x228/320x256/320x240/320x180/240x180/176x144/same as input resolution
- Stream control: Cbr/vbr optional
- Streaming: Support for RTMP/RTSP/HTTP TS/HTTP FLV/HLS/UDP Multicast/RTP Multicast

Audio Encoding:
- Encoding sampling rate: 44100/48000 optional
- Coding method: AAC/AAC+/AAC++/MP3/MP2/AC3 optional
- Encoding bit rate (analog input is effective): AAC: 48000-320000 adjustable; AAC+: 24000-48000 adjustable; AAC++: 12000-32000 adjustable; MP3: 64000-320000 adjustable; MP2: 64000-320000 adjustable; AC3: 40000-640000 adjustable
- Digital volume: -50 to 50 adjustable
- RTSP stream uses G711A encoding: disable/enable optional

OSD:
- Transparency: 0-128 adjustable
- Type: text/picture/scrolling text
- Regions: 4 regions are optional
- X coordinate: 0-3840
- Y coordinate: 0-2160
- LOGO: 4 LOGOs can be uploaded for selection
- Font size: 8-72
- Background color: transparent/white/black
- Font color: RGB color optional

General:
- Network: Gigabit
- Configuration management: configuration management via WEB
- For ONVIF: Support for ONVIF to find and browse videos
- Power supply: 12V/DC, 2A
- Power consumption: < 5W
- Working temperature: -20℃ to 60℃
- Working humidity: < 90%, non-condension
- Product Size: 13.5 x 10.5 x 3.4 cm

Package Included:
- 1 x Set of Video Encoder
