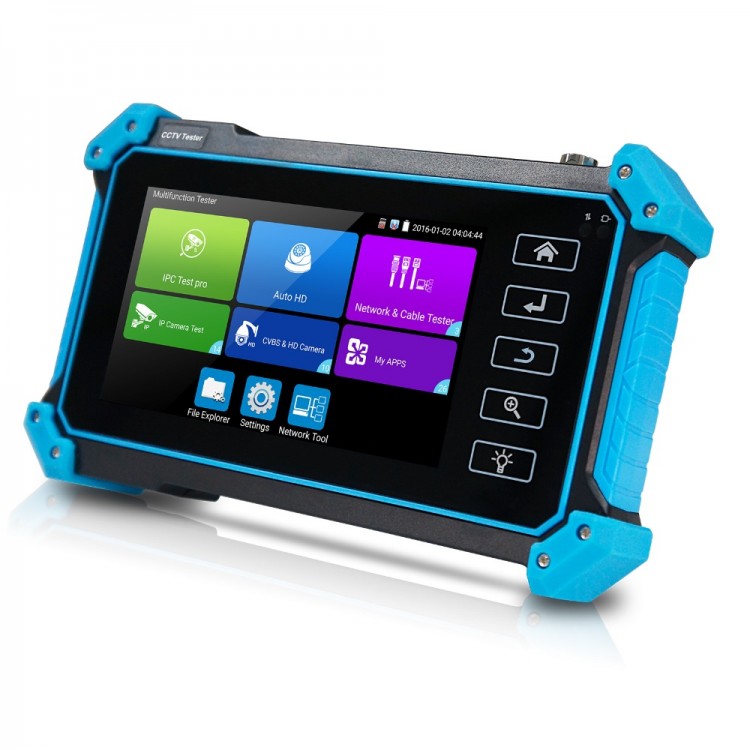

4K IP Camera Tester Security Camera Tester For IP AHD CVI TVI Support VGA HDMI Input IPC-5100 Plus

4K IP Camera Tester Security Camera Tester For IP AHD CVI TVI Support VGA HDMI Input IPC-5100 Plus

Main Functions:
IPC-5000 Plus: IP + AHD + CVI + TVI
IPC-5100 Plus: IP + AHD + CVI + TVI + VGA Input + HDMI Input
IPC-5200 Plus: IP + AHD + CVI + TVI + VGA Input + HDMI Input + SDI

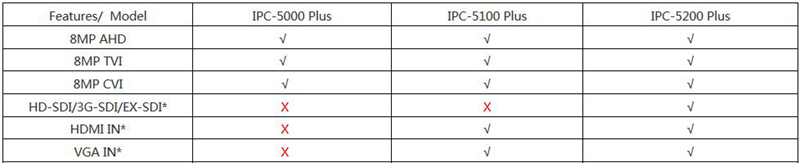

Comparison Table:


Applications:
The 5 inch IPS touch screen IP camera tester is designed for maintenance and installation of IP analog, HD coaxial cameras as well as other security equipment. The 1920*1080 resolution enables it to display network HD cameras and analog cameras in high resolution. The unit supports many ONVIF PTZ and analog PTZ control, and cable test functions. CCTV installers often need to carry a variety of testing tools to complete their work. If take the all in one camera tester, making working conditions safer and increasing productivity.

· CCTV system installation and maintenance
· Network cabling project installation and maintenance
· Dome camera, IP TVI CVI AHD 4K H.265 camera testing
· Video transmission channel testing
· PTZ controller

Functions:
Camera Test:
● 5 inch IPS touch screen, 1920*1080 resolutions
● H.265 & H .264 IP, 4K video display via mainstream
● 8MP TVI test, 3840 x 2160P 12.5/15 FPS, 4xzoom, video record & playback, coaxial PTZ control & call OSD menu
● 8MP AHD test, 3840x2160P 15 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu
● 8MP CVI test, 3840 x 2160P 12.5/15FPS, 4xzoom, video record& playback, coaxial PTZ & call OSD menu
● 8MP EX-SDI test, 3840 x 2160P 25/30FPS,4xzoom, video record& playback, coaxial PTZ & call OSD menu* (only for IPC-5200 Plus)
● HD-SDI test, 1920 x 1080P 25/30/50/60 FPS, 4xzoom, video record& playback, coaxial PTZ & call OSD menu*  (only for IPC-5200 Plus)
● 3G-SDI test, 1920 x 1080P 50/60 FPS, 4xzoom, video record& playback, coaxial PTZ & call OSD menu* (only for IPC-5200 Plus)
● Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record& playback, coaxial PTZ & call OSD menu.
● VGA input, up to 1920 x 1200P 60FPS, support snapshot, video record & playback.* (only for IPC-5100 Plus, IPC-5200 Plus)
● HDMI Input, up to 4K 30FPS, support snapshot, video record & playback.* (only for IPC-5100 Plus, IPC-5200 Plus)
● Rapid ONVIF, auto log in and display image, create testing report
● IPC test pro, auto scan all network segments IP, auto open PoE power and display the power. Input username and password, can scan camera image, can batch activate cameras for HIKVISION and Dahua. Jump to ONVIF interface and test tools.
● Test for AXIS, Hikvision camera, enter ONVIF app, input username and password to test
● Test tool for HIKVISION, support batch activate cameras for HIKVISION and modify IP address, modify password etc. Self-defined modify channel name, can quickly change H.264 and H.265 video, open wide dynamic mode. Factory restore, etc.
● Test tool for Dahua, support batch activate cameras for DAHUA and modify IP address, user name and password. Self-defined modify channel name.
● IP and analog display image at the same time
● IPC TEST (Non-ONVIF test), test tool for HIK (for Hikvision camera), test tool for DH (for Dahua camera)
● CVBS camera test, PTZ controller
● DC12V/3A power output, camera can be powered from DC 12 Voltage.
● Rapid video, just by one key to detect all network cameras and auto display
● Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot

Cable Test:
● Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized. Can detect the near-end, mid-end and far-end fault point of the network cable crystal head.
● RJ45 TDR cable test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc, can create test report.

Other Functions:
● Network tool: For Ping, IP scan, Port Flash, DHCP server, Trace Route
● Tester Play: Tester, mobile phone for Android and PC display at the same time
● Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters
● Customers self update software, you can install apps for Android version
● Media player, 4K video files and MKV/MP4 media files play
● Display its genuine resolution of the IP camera images
● Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools

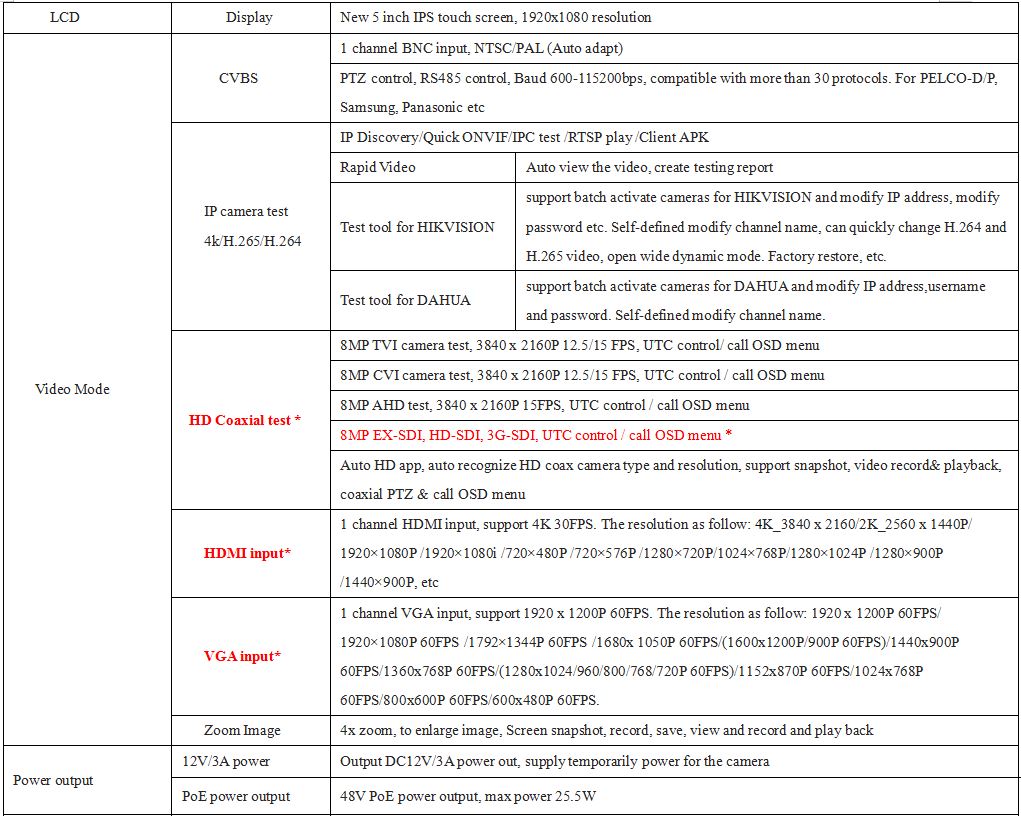

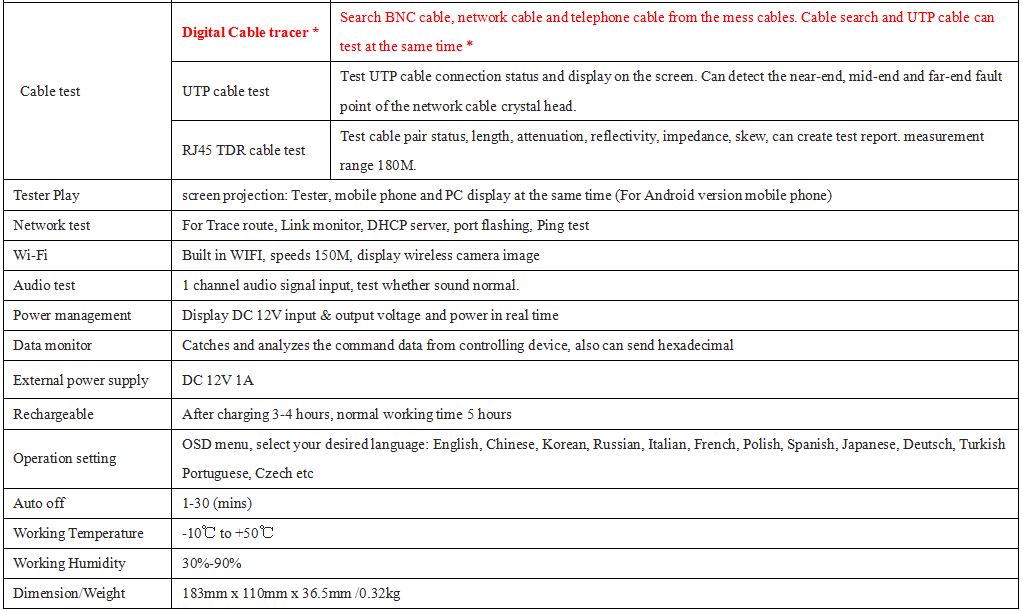

Specifications:



Package Included:
- 1 x Set of IP Camera Tester

Note:
- “*” sign mean functions are customizable. The data above is only for reference and any change of them will not be informed in advance. For more detailed technical inquiries, please feel free to contact us.
- Digital cable tracer is not included. If it is needed, please contact us to pay extra money. Thank you!
- Other items pictured are not included.

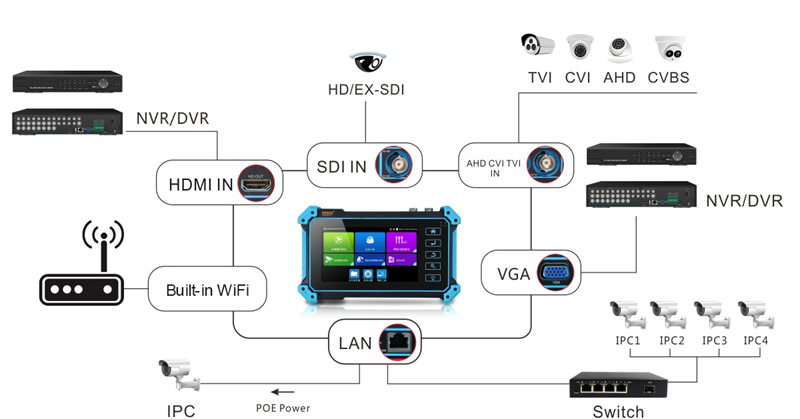

Connection Diagram:
