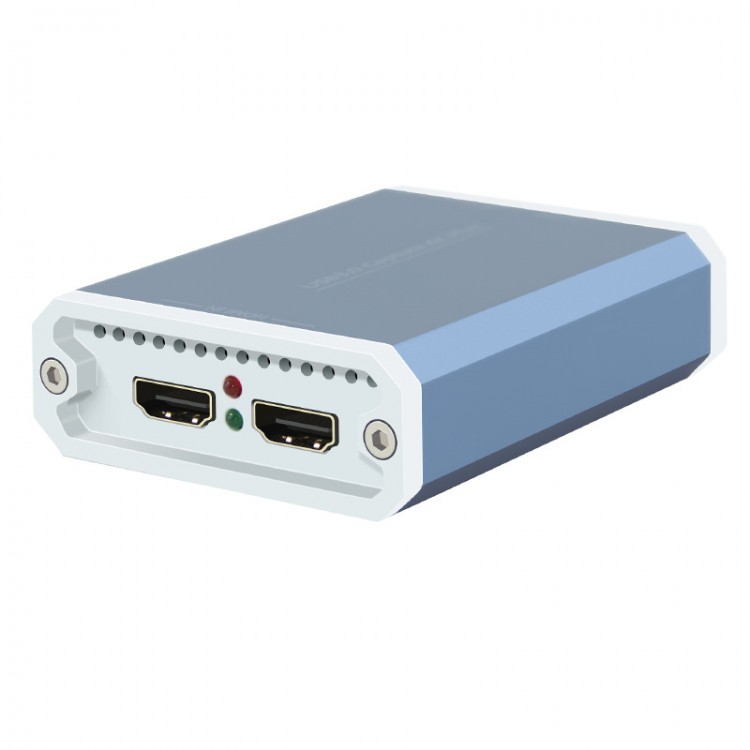

4K UHD Video Acquisition Box USB3.0 HDMI Video Acquisition Card for Recording Live Broadcast

4K UHD Video Acquisition Box USB3.0 HDMI Video Acquisition Card for Recording Live Broadcast

Description:
1. High-definition live video acquisition box, supports full HD 1080P 60 frame signal acquisition input, 4:2:2 video sampling, outputs lossless YUY color space data. It supports professional camera HD HDMI video signal, and various HDMI HD video equipment. Equipped with built-in on-board FPGA professional processing chip does not occupy CPU resources, it supports output resolution zoom function. Compatible with mainstream live coding software. No need to install drivers, fully compatible with Win7/8/10, LINUX, MAC, Android operating system.
2. Support a variety of main live broadcast software, compatible with QQ, skype instant messaging software, support video conferencing system, compatible with Amcap Potplayer Vmix Wirecast and other collection guide platform, support OBS Xsplit FMLE and other live broadcast software, compatible with mainstream platform live broadcast software.

Specification:
Interface
Interface: TYPE-C/USB3.0
Input interface: 1xHDMI main, 1xHDMI spare
Video specifications: 2160P30, 1440P60, 1080P50/60, 1080I50/60, 720P50/60, 576P, 576I, 480P
Audio: 1 channel PCM audio signal, when HDMI video signal is input, an external audio signal can be input simultaneously
Operating system: Windows(7, 8, 8.1, 10), Linux(kernel version 2.6.38 and above), OS X (10.8 and above)

Standard
Input format: conform to HDMI 1.4a standard, support 2160P30, 1440P60, 1080P/60Hz
Bandwidth: HDMI 165MHZ
Video specification: in line with UVC (USB video class) specification
Audio specification: in line with UVC (USB video class) specification
Color space: YUY2, NV12

General
Operating system: support ×86 & ×64 from Windows 7, 8.1, 10, Windows Server 2008 R2
Compatible software: Vmix, Wirecast, OBS, Windows Media Encoder, Adobe Flash Media Live Encoder, Real Producer Plus, VLC, Wire cast, AMCAP etc
Compatible development interfaces: DirectShow(Windows), DirectSound(Windows)
Upgrade: firmware upgrade
Size: 25 x 70 x 88mm
Power consumption: <=3.5W
Working temperature: 0~50℃
Storage temperature: -20~70℃
Humidity: 5%-90%

Features:
-Strong compatibility
-Long recording
-Dual port standby
-Easy to carry
-Custom resolution
-Support 2160P, 1080P, 720P, 576P

Package List:
1 x Video Acquisition Box

Note:
1. The actual USB3.0 transmission bandwidth is related to the host chipset and computer motherboard, and may be lower than the value written here.
2. Due to copyright protection, this product does not support the acquisition of HDCP-protected HD video signals; PS4 can collect video signals after closing HDCP in the system menu.
