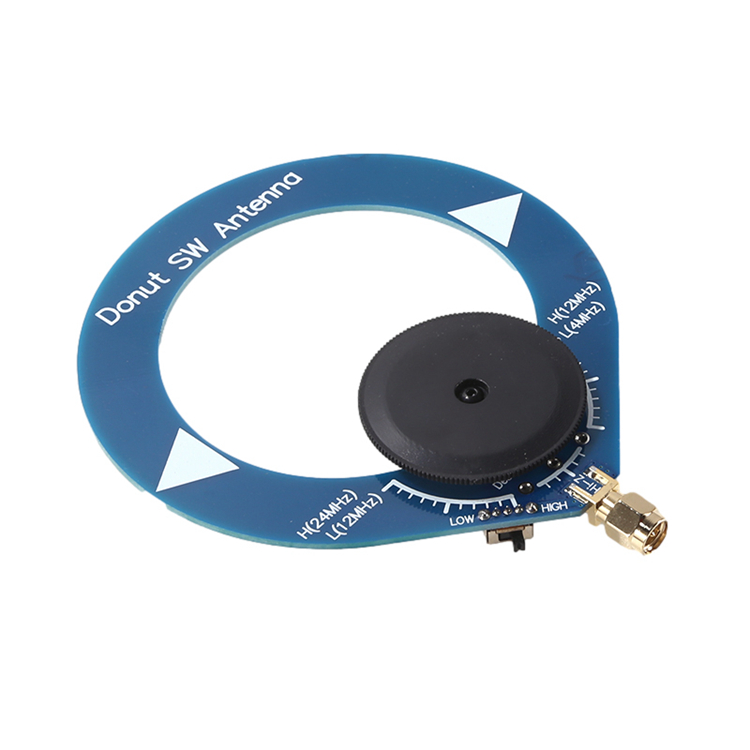

4MHz-24MHz Blue Donut SW Antenna Mini Loop Antenna Shortwave Antenna for Malachite Malahit Receivers
Description:
The frequency range of blue SW antenna is 4MHz-24MHz.
The loop antenna is a narrow-band, high-impedance resonant antenna (Hi-Z). Therefore, when connected to a malachite receiver, the antenna should be connected to the high-impedance antenna input (Hi-Z) of the malachite. Please ensure correct connection because wrong connection will cause the impedance of the antenna to mismatch, and it will cause the antenna to be detuned and not working.

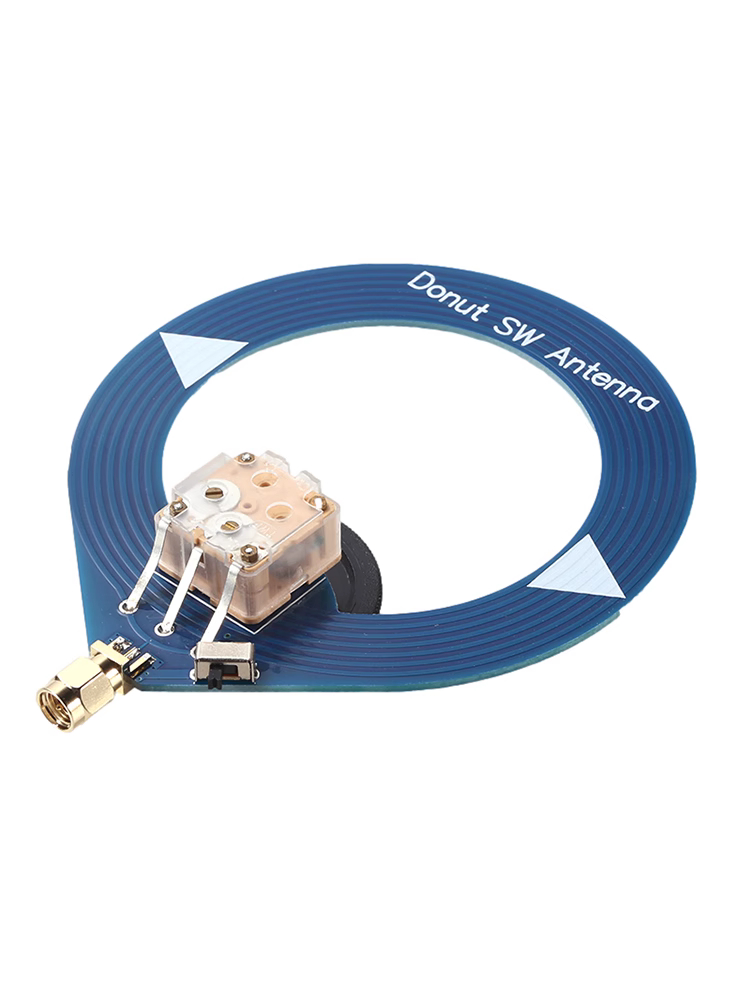

Compact size makes it easy to carry. The antenna uses the tuning of variable capacitor to improve signal reception. Thus, the antenna is ideal for malachite receivers.
Specifications:
- Frequency range of blue SW antenna: 4MHz-24MHz
- Interface: SMA connector with pin
Package Included:
- 1 x Donut antenna
Note:

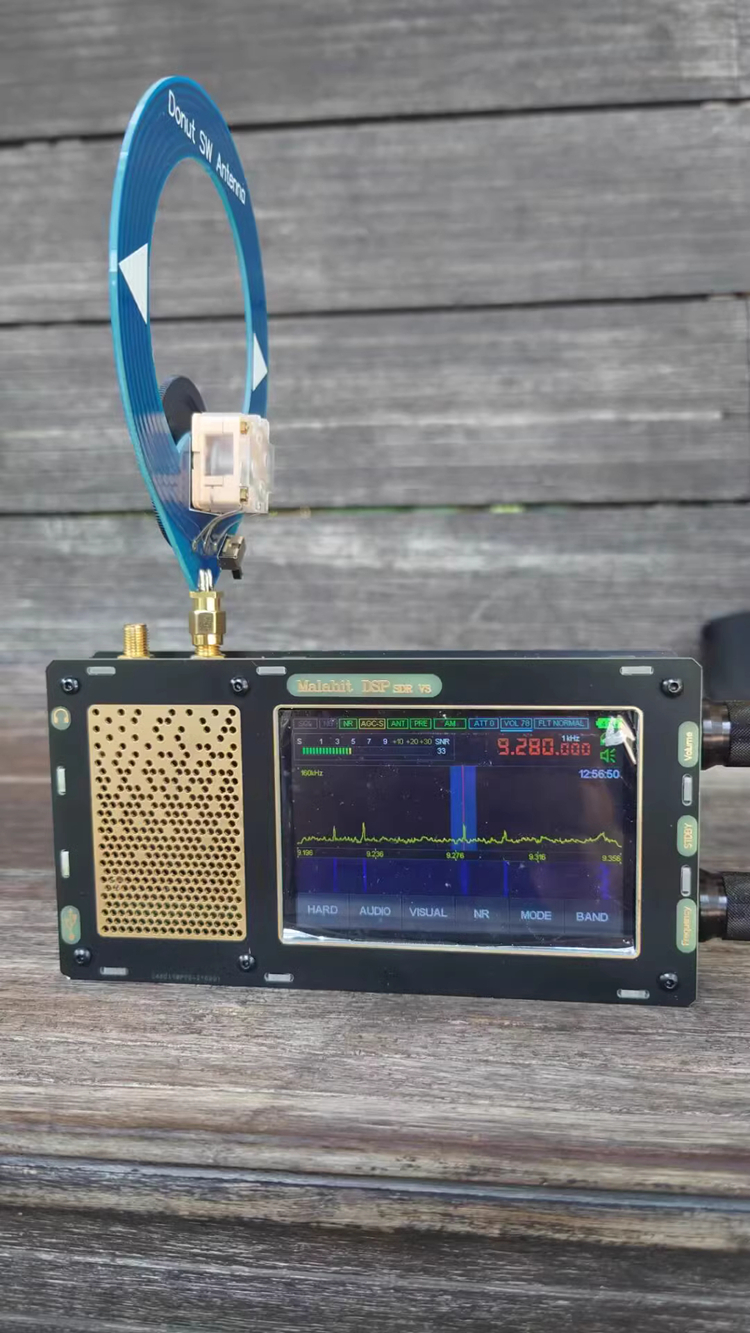

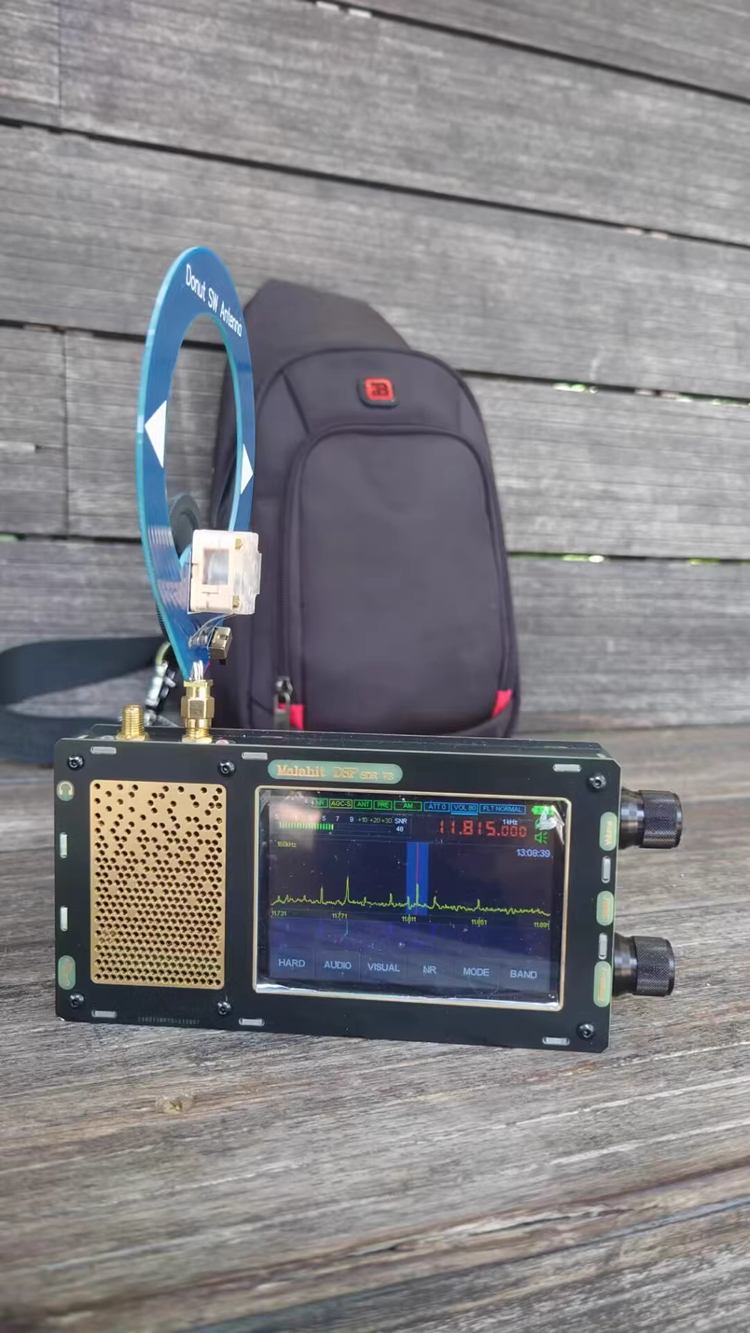

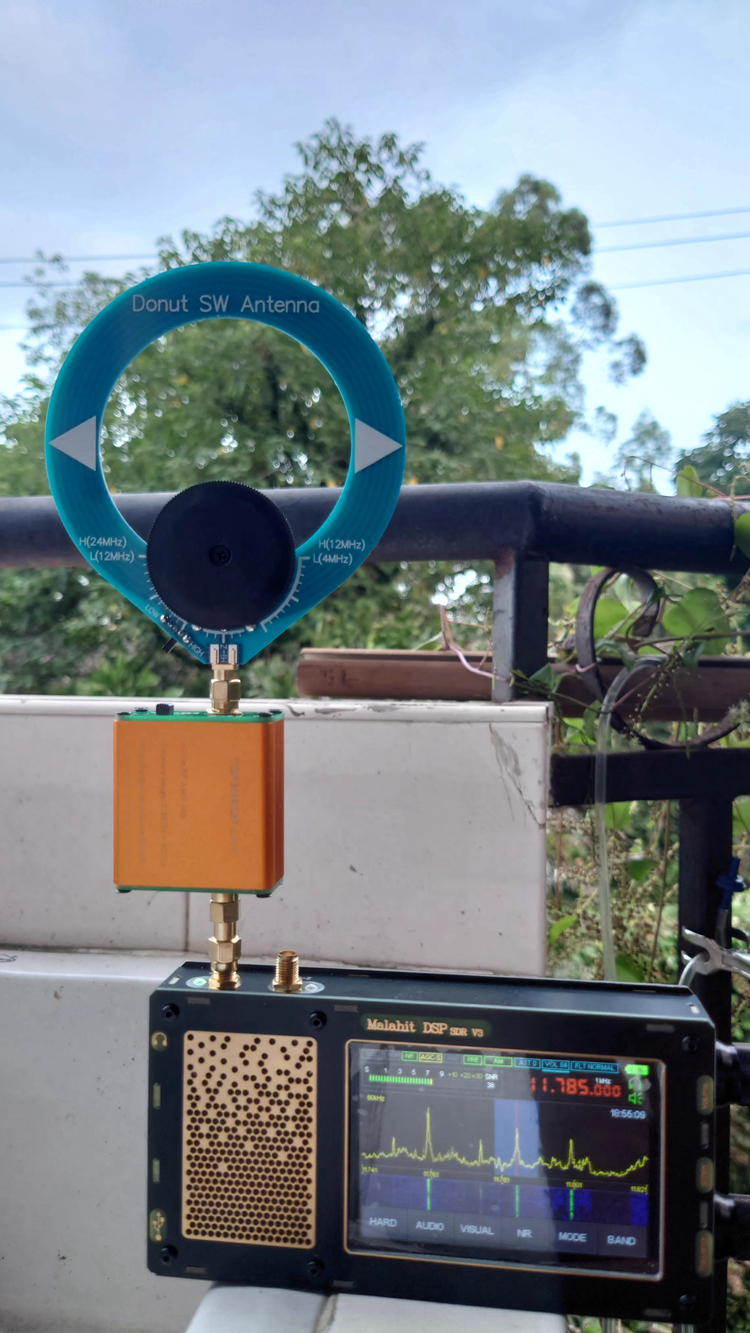

- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
