4pcs 2M542 4.2A 3 Axis Driver& Breakout Board Router 5 Axis Controller CNC Kit for CNC Engraving Machine
Stepper Motor Driver 2M542
- High performance, cost-effective
- Supply voltage up to +50 VDC
- Output current up to 4.2A
- Self-adjustment technology
- Pure-sinusoidal current control technology
- Pulse input frequency up to 200 KHz
- TTL compatible and optically isolated input
- Automatic idle-current reduction
- 15 selectable resolutions in decimal and binary, up to 25,000 steps/rev
- Suitable for 2-phase motors
- Support PUL/DIR and CW/CCW modes
- Short-voltage, over-voltage, over-current protections
|
Parameters |
2M542 |
|||
|
Min |
Typical |
Max |
Unit |
|
|
Output current |
1.0 |
- |
4.2 (3.0 RMS) |
A |
|
Supply voltage |
+24 |
+36 |
+50 |
VDC |
|
Logic signal current |
7 |
10 |
16 |
mA |
|
Pulse input frequency |
0 |
- |
200 |
kHz |
5 Axis Breakout Board
- The maximum matching 5-axis stepper motor driver
- The two-stage signal processing, signal transmission smooth, powerful anti-jamming
- 5 input interface to define the emergency stop, limit, points in the knife, etc.
- relay output control interface, can be accessed by the spindle motor or the air pump, water pump, etc
- five-axis job LED display, visual display products, working condition
Electrical Parameters:
|
Input Power |
5V DC power supply or computer USB to take power |
|
Work axis stepper |
Received the highest 5-axis independent driving |
|
Drive |
Pulse + direction + enable signal. |
|
Weight |
About 200g |

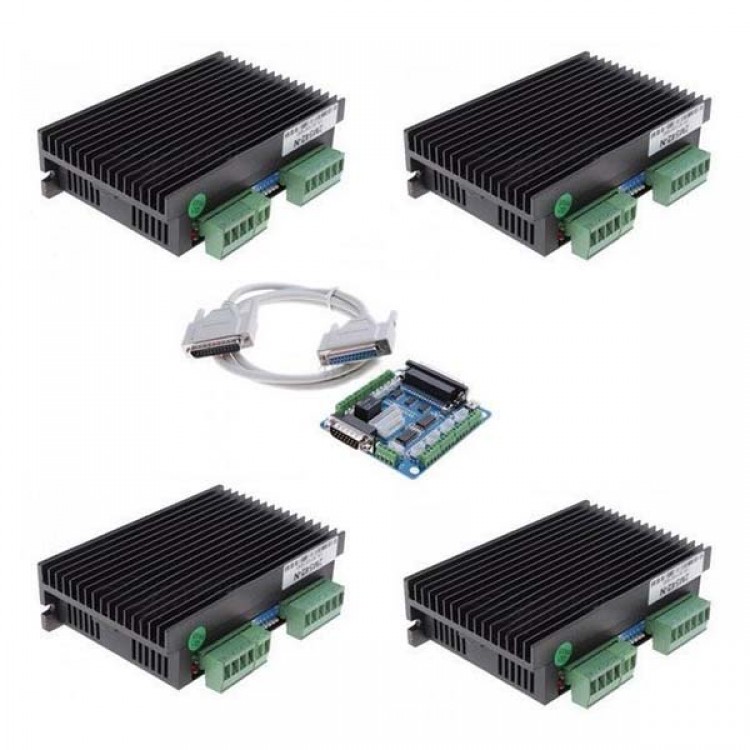

Package Content:
- 4 x stepper motor driver 2M542
- 1 x 5 Axis Breakout board
- 1 x PC Parallel Cable
- CD software (English Manual & Mach 3)
