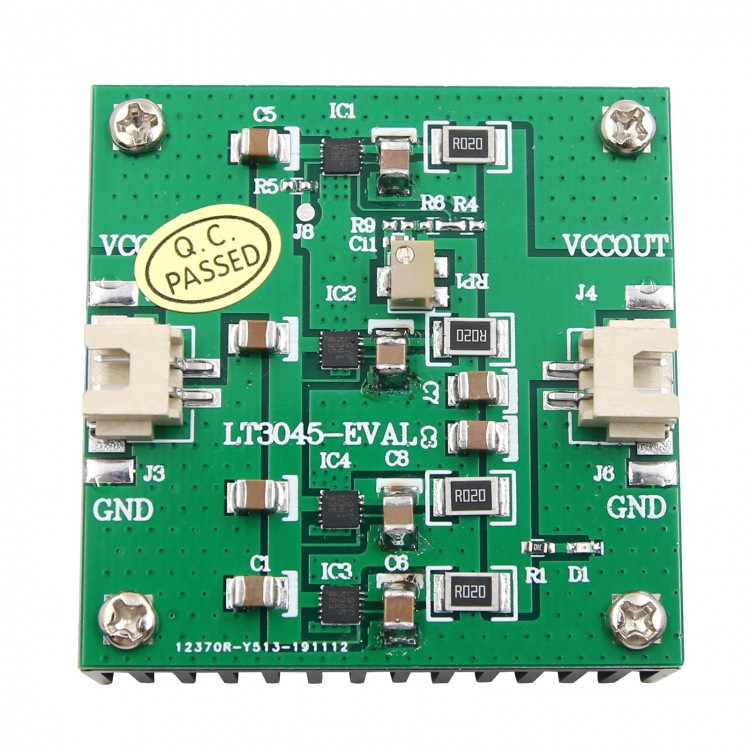

4PCS LT3045 2A Module Single Power Supply Module Linear RF Regulator Board Low Noise with Heat Sink

4PCS LT3045 2A Module Single Power Supply Module Linear RF Regulator Board Low Noise with Heat Sink

Parameter:
1. Input and output voltage range: IN: 1.8V to 20V; OUT: 0V to 15V
2. The default delivery input is greater than + 6V regulated to + 5V (other voltages can be adjusted through the potentiometer)
3. Size: 5cm * 5cm (heat sink height = 2cm)
4. The input and output interface adopts XH2.54 3PIN terminal block
5. Current: maximum 2A (4pcs paralleling)

Description:
-The LT3045 is a high performance low dropout linear regulator featuring LTC'S ultra-low noise and ultrahigh PSRR architecture for powering noise sensitive applications. Designed as a precision current reference followed by a high performance voltage buffer, the LT3045 can be easily paralleled to further reduce noise, increase output current and spread heat on the PCB.
-The device supplies 500mA at a typical 260mV dropout voltage. Operating quiescent current is nominally 2.2mA and drops to <<1μA in shutdown. The LT3045's wide output voltage range(0V to 15V)while maintaining unity-gain operation provides virtually constant output noise, PSRR, bandwidth and load regulation, independent of the programmed output voltage. Additionally, the regulator features programmable current limit, fast start-up capability and programmable power good to indicate output voltage regulation.
-The LT3045 is stable with a minimum 10μF ceramic output capacitor. Built-in protection includes reverse-battery protection, reverse-current protection, internal current limit with foldback and thermal limit with hysteresis. The LT3045 is available in thermally enhanced 12-lead MSOP and 10-lead 3mm x 3mm DFN packages.

Fertures:
-Ultralow RMS Noise: 0.8μV RMS (10Hz to 100kHZ)
-Ultralow Spot Noise: 2nV/√Hz at 10kHZ
-Ultrahigh PSRR: 76dB at 1MHz
-Output Current: 500mA
-Wide Input Voltage Range: 1. 8V to 20V
-Single capacitor improves noise and PSRR.
-100μA SET Pin current: ±1% initial accuracy
-Single resistor programs output voltage.
-High Bandwidth: 1MHz
-Programmable current limit.
-Low Dropout Voltage: 260mV
-Output Voltage Range: 0V to 15V
-Programmable power good.
-Fast start-up capability.
-Precision enable/UVLO.
-Parallelable for lower noise and higher current.
-Internal current limit with foldback.
-Minimum Output Capacitor: 10μF ceramic
-Reverse-battery and reverse-current protection.
-12-lead MSOP and 10-lead 3mm x 3mm DFN packages.

Applications:
-RF power supplies: PLLs, VCOs, Mixers, LNAs, PAs.
-Very low noise instrumentation.
-High speed/high precision data converters.
-Medical applications: imaging, diagnostics.

Package Included:
4 x LT3045(2A) Module + Heat Sink
