Omni A203 Omni Wheel Driving Wheel (203mm Diameter w/ Keyway Setscrew Fixed Coupling for 40KG Load)
$80.42

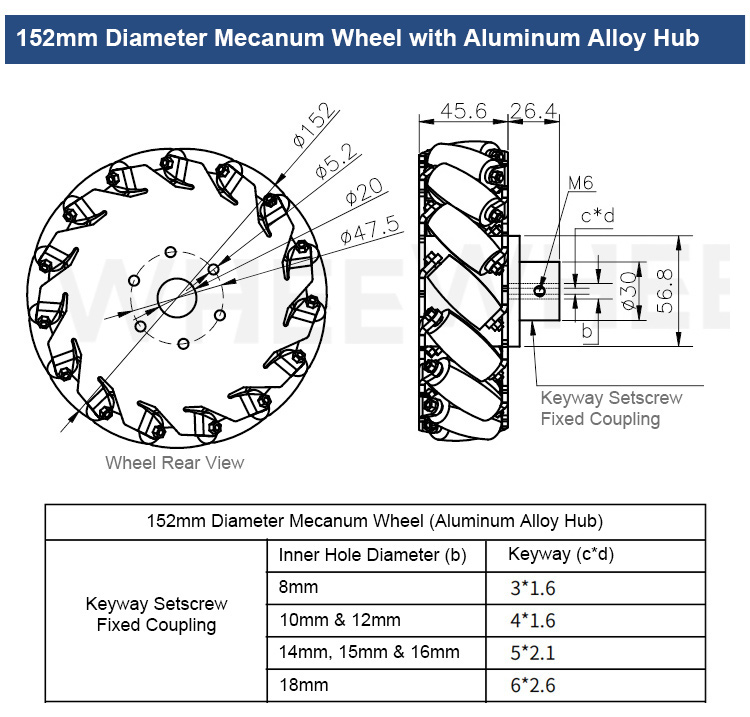

Omni A152 Omni Wheel Driving Wheel (152mm Diameter w/ Keyway Setscrew Fixed Coupling for 40KG Load)
$53.83

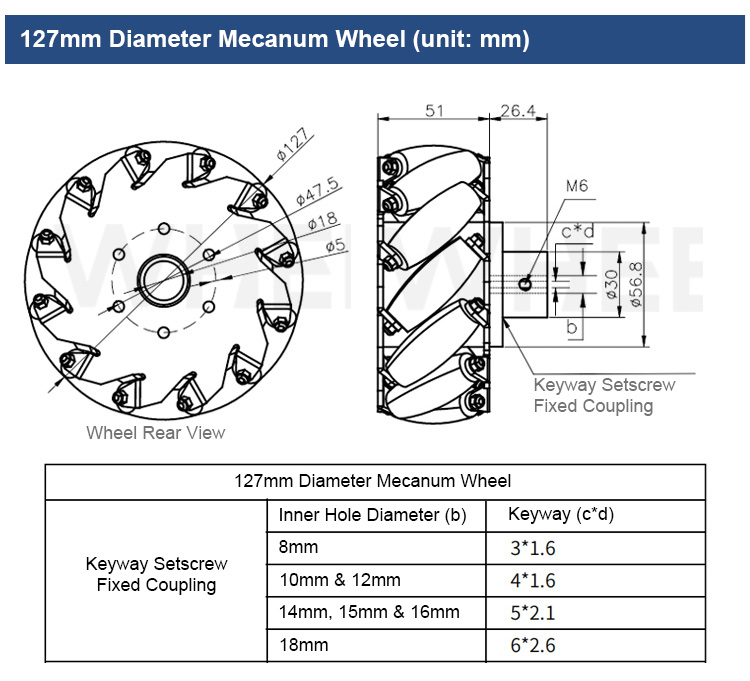

Omni A127 Omni Wheel Driving Wheel (127mm Diameter w/ Keyway Setscrew Fixed Coupling for 40KG Load)
$41.77
4PCS Mecanum Wheels (100mm Diameter with Keyway Setscrew Fixed Coupling and 40KG Load Capacity )
Features:
* WHEELTEC high-quality Mecanum wheels
* Metal coupling
* High-quality rubber
* High load capacity
* High-precision
* Metal wheel axle
* Video tutorials and development manuals provided
* Full metal machining
Keyway Coupling:
* If your motor shaft has a key-way, you can choose the key-way coupling for a more reliable connection.
* Note: The key-way option is only available for hole diameters of 8mm and above.
Application Case:
* The precision and stability of Mecanum wheels can meet advanced requirements such as ROS navigation and mapping. These wheels are also suitable for regular smart cars.

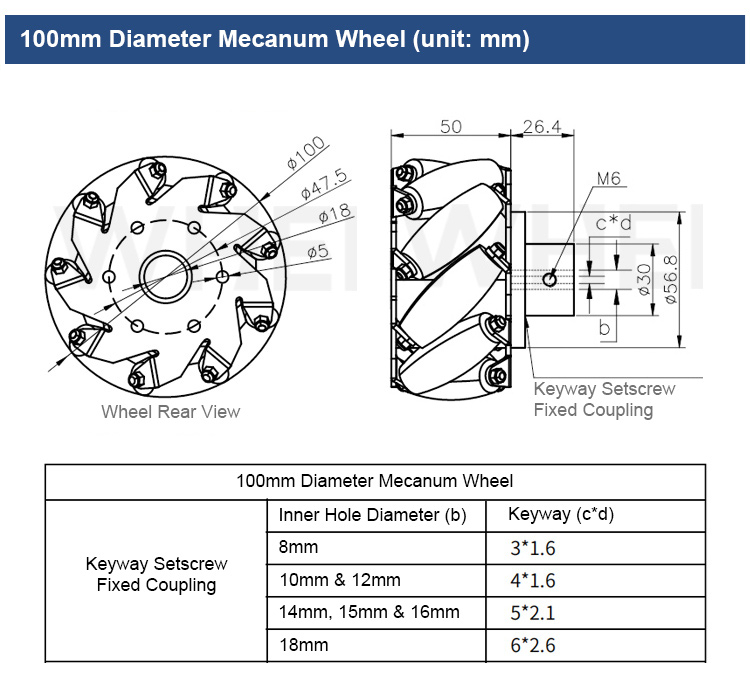

Specifications (100mm Diameter):
* Type: 100mm Diameter Mecanum Wheel
* Weight (One set of 4 wheels including coupling): 1.52 kg
* Maximum Load Capacity (4 wheels): 40 kg
Packing List:

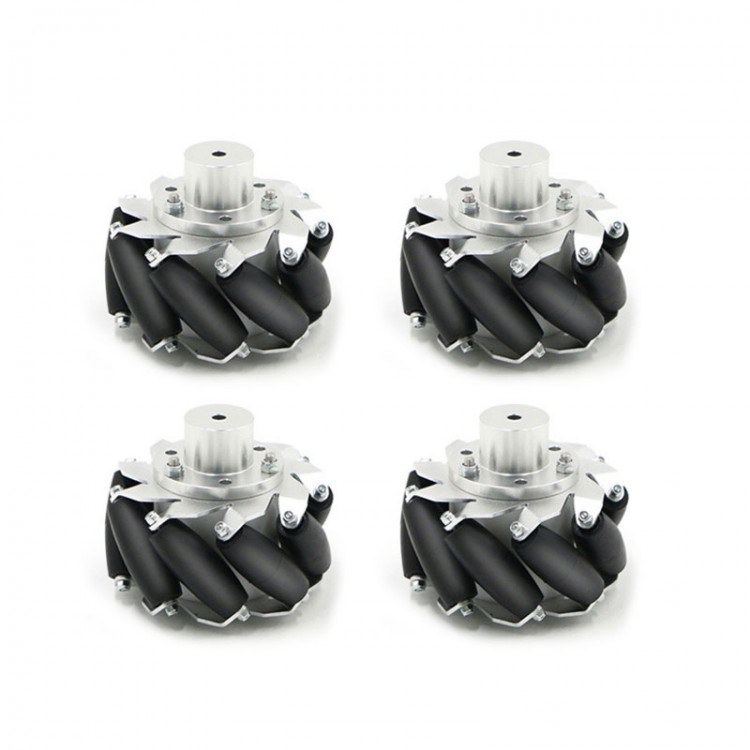

* 4 x Mecanum Wheels
Packaging Details (for 100mm Diameter Wheels):
* G.W.: 1.52kg
