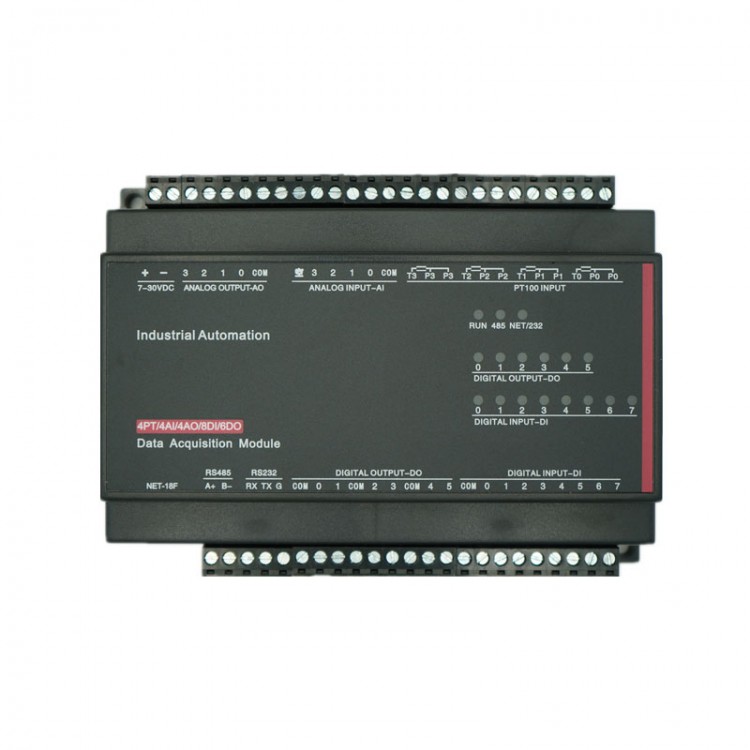

4PT100 Temperature 4AI Analog In 4AO Analog Out 8DI Digital In 6DO Digital Out Ethernet RS485 232 Version DAC Module

4PT100 Temperature 4AI Analog In 4AO Analog Out 8DI Digital In 6DO Digital Out Ethernet RS485 232 Version DAC Module

Features:
- Support configuration software such as Kingview, force control, MCGS and so on.
- Support RS232, RS485 interface, Modbus protocol touch screen, text screen.
- Support all standard Modbus device online communication.
- More details: http://pan.baidu.com/s/1i5BgUsH

Parameter:
- CPU: 32-bit ATMEL ARM high-speed processor, 72MHZ
- Operating system: GCOS, 10ms scheduling mechanism
- Communication interface: DC isolation design, 2500V lightning protection, ESD, overvoltage, overcurrent protection
- Dimension: 180 x 108 x 44mm
- Installation method: screw or rail mounting
- Environmental indicators: -40~85℃, 5%~95%RH Non condensation, IP20 protection
- Hardware watchdog: 1S hardware watchdog protection system
- Chanel isolation: 2500VDC isolation, anti-jamming protection design

RS485/RS232 Parameter:
- Baud rate: 1200~115200
- Communication protocol: MODBUS RTU
- Default parameters: 9600.N.8.1; station number is: 1

Ethernet parameter:
- Communication interface: RJ45 interface
- Communication protocol: MODBUS TCP protocol
- Communication rate: communication with the host computer, 1000 times/second or more
- Communication bandwidth: 10M/100Mbps, real high-speed Ethernet
- IP address: 192.168.1.75
- Port number: 502
- Support network cable: Both crossover and straight-through cables are available, and the module can adapt itself.

AI analog input:
- Input type: current: 4-20mA/0-20mA; voltage: 0-5V/0-10V
- Precision bit: 0.1% accuracy, 12 bits
- Refresh frequency: 0.1 seconds to update all I/O point data in the module
- Two wire system:

- Three wire connection:

- Four wire connection:


AO analog output:
- Output type: current: 4~20mA/0~20mA; voltage: 0~5V/0~10V
- Output precision: 0.2% accuracy, 12 bits
- Refresh frequency: 0.1 seconds to update all I/O point data in the module
- Output connection method:


DI digital input:
- Input method: NPN, PNP, dry node, wet node
- ON level: 5-30VDC
- OFF level: 0-1VDC
- Refresh frequency: 0.1 seconds to update all I/O point data in the module
- Wet node connection/NPN/PNP connection:

- Dry node connection:


DO Relay output:
- Output mode: Relay
- Resistive load: 5A/250VAC, 5A/30VDC
- Isolation protection: Optocoupler isolation + relay isolation
- Response time: 0.01S (10ms)
- Wiring mode:


PT100 Thermal resistance input:
- Input mode: PT100
- Accuracy: 0.1℃
- Temperature range: -200 ~ 320℃
- Wiring mode:


Package Included:
- 1 x Module
