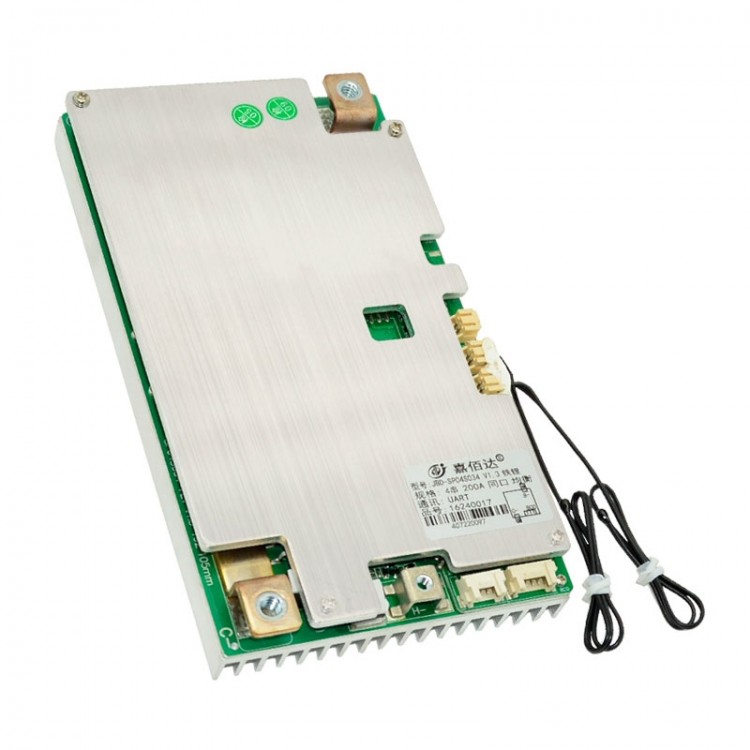

4S Smart BMS 12V Lifepo4 Battery Protection Board Continuous 200A with Balanced UART Communication

4S Smart BMS 12V Lifepo4 Battery Protection Board Continuous 200A with Balanced UART Communication

Features:
- Support UART communication

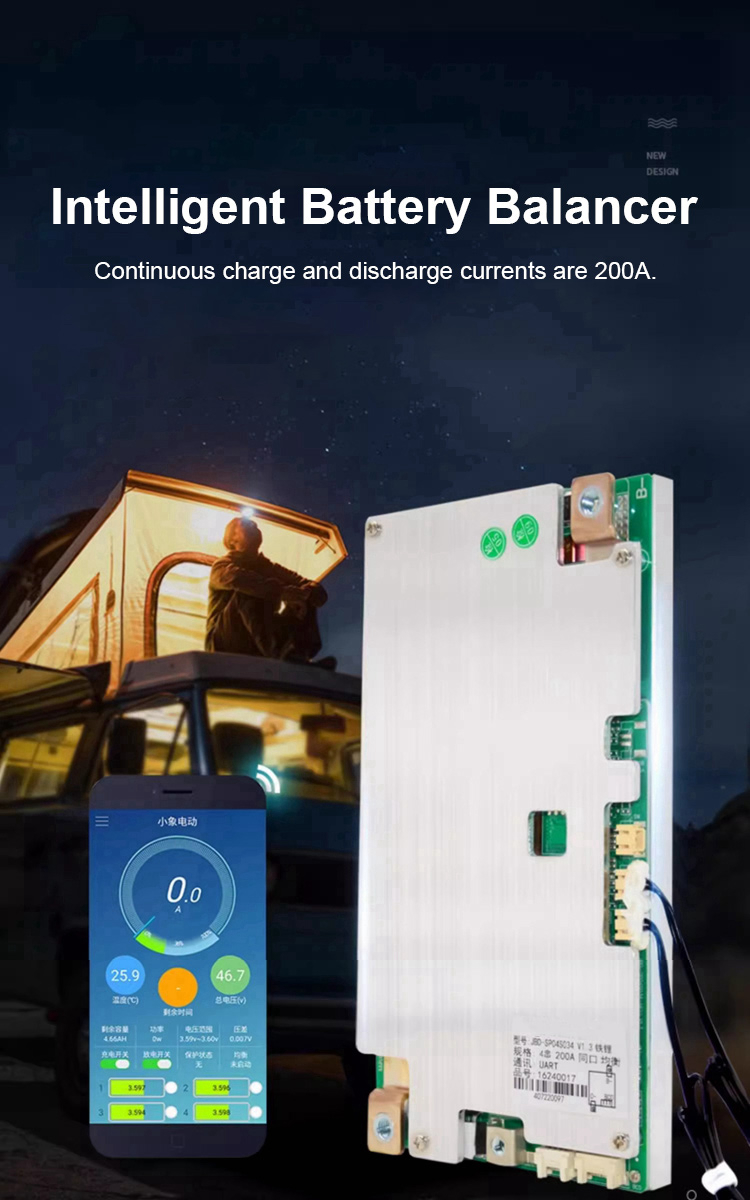

- Intelligent battery balancer: Continuous charge and discharge currents are 200A. 150mA high current balancing
- Multiple protections: Overcharge, over-discharge, over-current, short-circuit, temperature-controlled and balanced protection

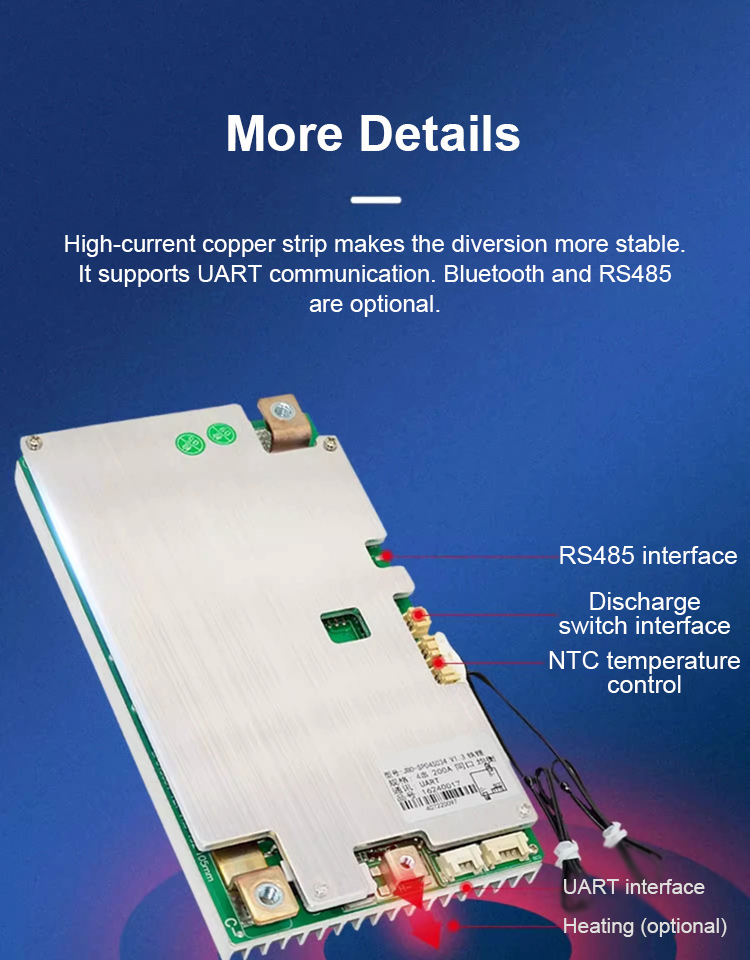

- High-current copper strip makes the diversion more stable

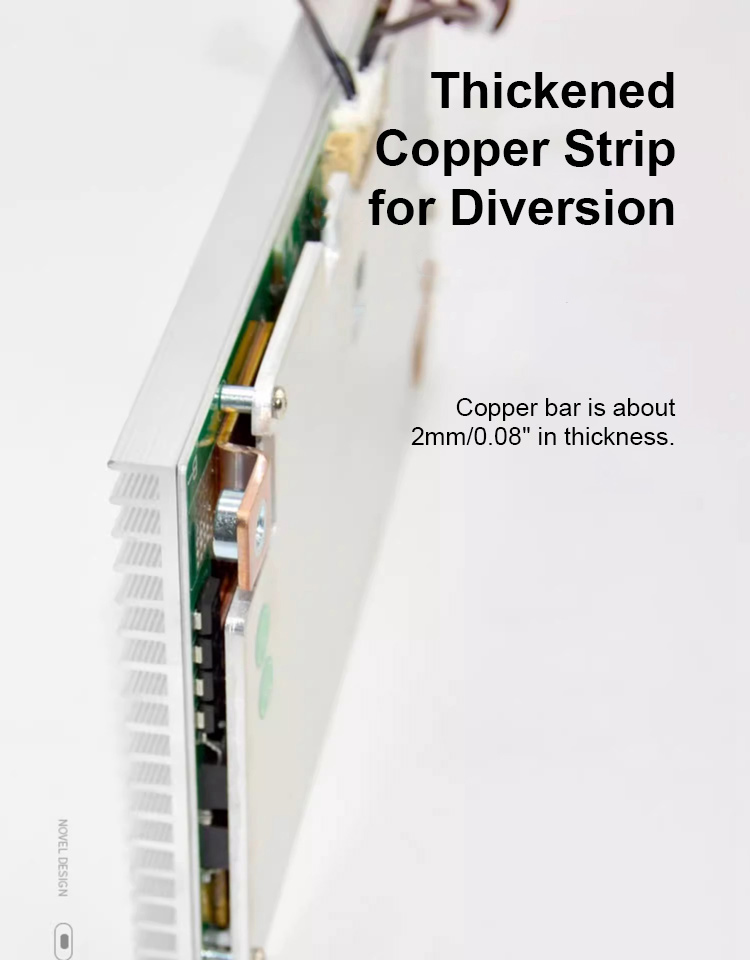

- Thickened copper strip is used for diversion. Continuous charge and discharge currents up to 200A. Copper bar is about 2mm/0.08" in thickness
- Board size: 192 x 105 x 20mm/7.6 x 4.1 x 0.8"
- Using front-end acquisition chip and MCU
- Phone APP: Battery parameters can be modified. Read the detailed parameters of battery through the APP. And the parameters can be customized and modified (*The software interface is optimized, and there may be differences in the interface, but it does not affect the use of functions*)

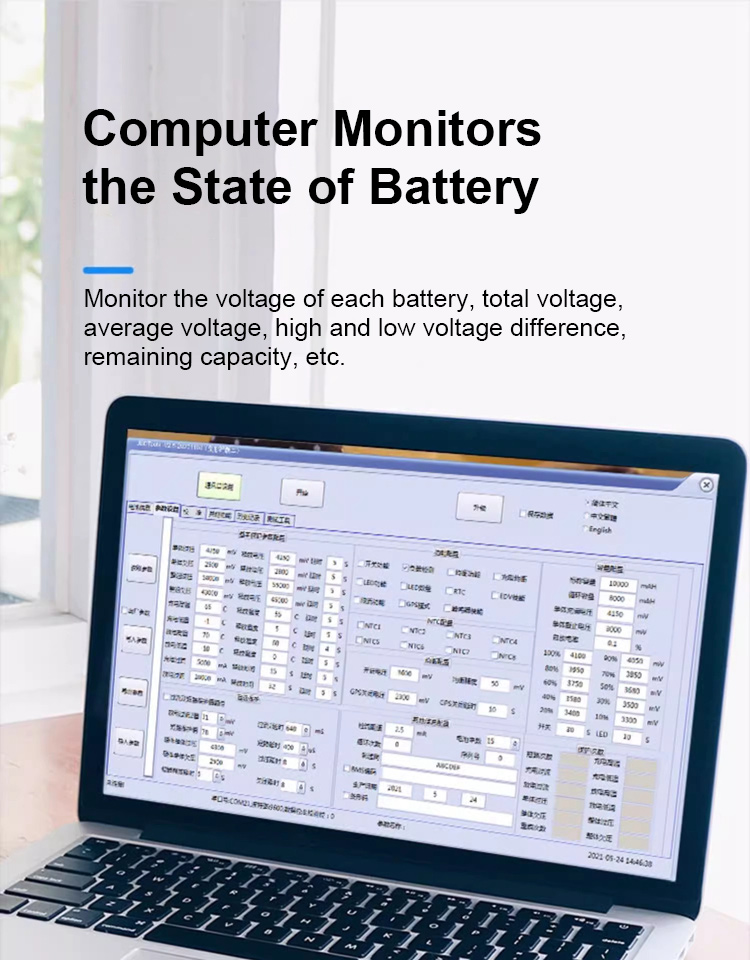

- Host computer monitors the state of battery use: Monitor the voltage of each battery, total voltage, average voltage, high and low voltage difference, remaining capacity, etc.
- Stable operation: Set up an independent watchdog for real-time detection procedures plus secondary protection
- Temperature-controlled detection: Built-in balanced 2-channel temperature monitoring
- APP and upper computer: It can lock battery and battery cannot be discharged. It supports Chinese and English interfaces

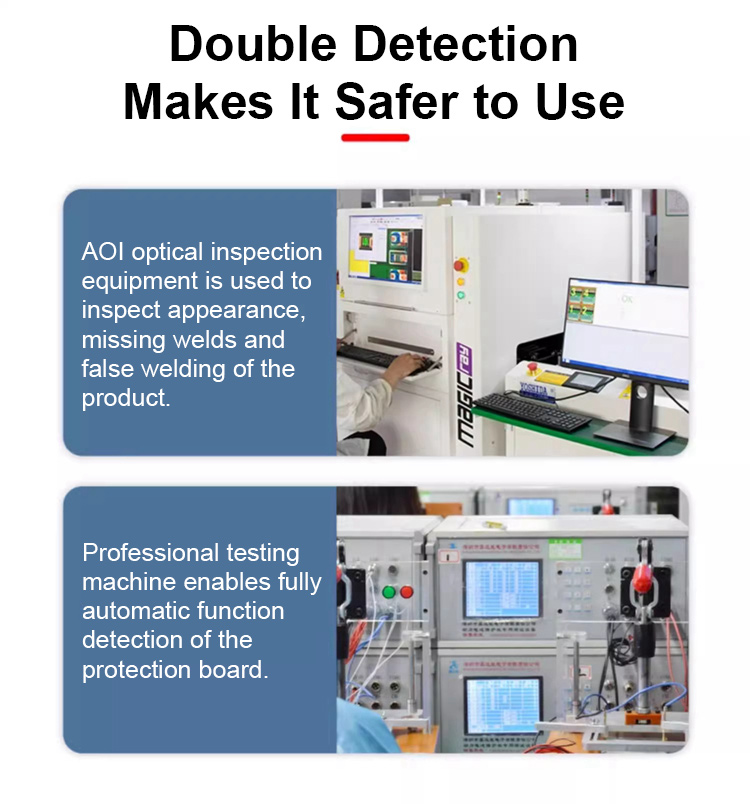

- Double detection makes it safer to use: AOI optical inspection equipment is used to inspect appearance, missing welds and false welding of the product. Professional testing machine enables fully automatic function detection of the protection board

Product Information:
- Discharge current: 200A
- Discharge over-current protection value: over-current protection (1): 230A delay 20S; Over-current protection (2): 440A delay 320mS
- Internal resistance of the main circuit on: ≤10mΩ
- Charging current [same port]: 200A
- Charging current [split]: NA
- Charging voltage: the number of lithium iron battery strings X3.65V

Battery Cell Over-voltage Protection:
- Detection voltage: lithium iron 3.65±0.05V
- Detection delay: 1000~3000mS
- Recovery voltage: 3.45±0.05V for lithium iron

Battery Cell Over-Discharge Protection:
- Detection voltage: lithium iron 2.5±0.1V
- Detection delay: 1000~3000mS
- Recovery voltage: lithium iron 3.0±0.1V

Short Circuit Protection:
- Trigger condition: Short circuit of external load
- Detection delay: 200-800uS
- Cancellation condition: Disconnect the load

Self-consumption:
- Operating power consumption: ≤25mA
- Sleep and over-discharge power consumption: ≤300uA
- Operating voltage range: 9.2V~15.0V

Equalization Voltage:
- Start voltage: Lithium iron ≥3.4V
- Cancellation: Lithium iron <3.4V
- Equalization current: 50-150mA

Charging Over-Current Protection:
- Over-current protection value: 210~250A
- Over-current delay: 5~15S
- Cancellation condition: automatic recovery after a delay of 32 seconds

Temperature Protection:
- Discharge over-temperature protection: 75℃±20℃
- Charging over-temperature protection: 60℃±5℃
- Cancellation condition of charge and discharge high temperature: can be customized

Operating Temperature:
- Temperature range: -30°C/+70°C

Attention:
- Short circuit description: A short circuit current less than the minimum value or higher than the maximum value may cause the short circuit protection to fail. If the short-circuit current exceeds 3000A, short-circuit protection is not guaranteed, and short-circuit protection test is not recommended.
- The above data is obtained from the manufacturer's laboratory and is for reference only. Please refer to the actual product for specific parameters.

Package Included:
- 1 x BMS board
- 1 x Set of FFC cable
- 1 x Temperature probe

Note:
- Battery is not included.
- Bluetooth and heating functions are optional.

Packaging Details:
- G.W.: 0.9kg
