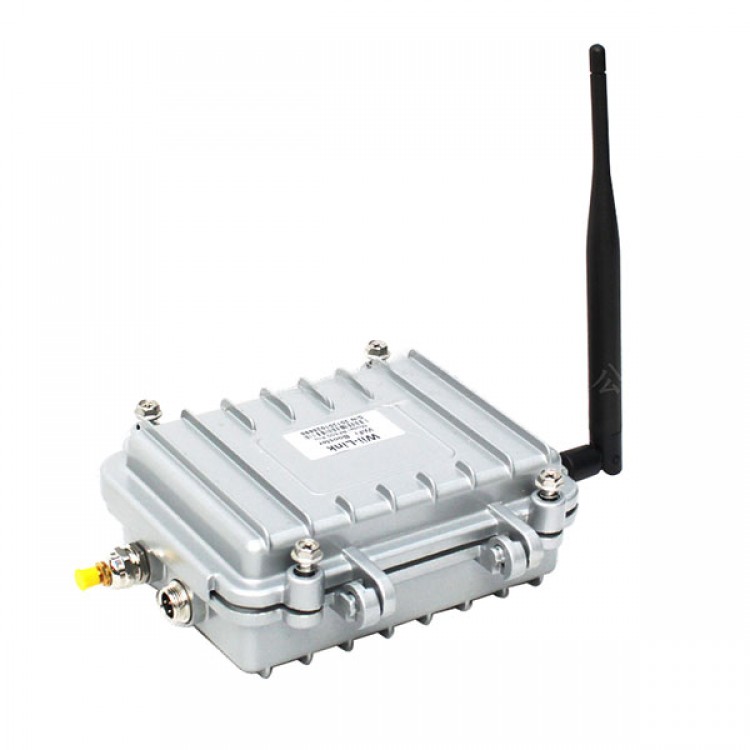

4W 2.4G WLAN Bidirectional Amplifier WIFI Signal Amplifier b/g/n Universal
Features:
- Gaining is adjustable, more wireless device is compatible
- Reverse receving transmitting simultaneous control terminal, realizing "zero consumption" transmission of high speed data
- Upgrade plan, super reliable product performance
- Working voltage range: power supply: 9-36V
Parameters:
- Working frequency band: 2400-2483.5MHz
- Working mode: TDD
- Signal standard: IEEE 802.11b/g/n
- Input power range: 3dBm---26dBm
- Max output power: 36dBm(4W)
- Upper gainning: 15+-1dB
- Down gaining: 10dB-17dB adustable
- Noise <2.5dB
- Time delay: <1us
- Working temp: 9-36V
- Temp: -25---60degree
- Dimension: 190*138*61mm
- AP/ WLAN interface: SMA female head
- Antenna interface: RP-SMA male head
- Working current:
9V power supply, supply power has to be >1500mA
12V power supply, supply power has to be >1000mA
15V power supply, supply power has to be >800mA
18V power supply, supply power has to be >600mA
24V power supply, supply power has to be >500mA
36V power supply, supply power has to be >400mA
Package includes:
- Amp RF600 Pro x 1
- High quality power x 1
- Power cable x 1
- Professional screening cable x 1
- 6DB omnidirectional antenna x 1
- Manual x 1
