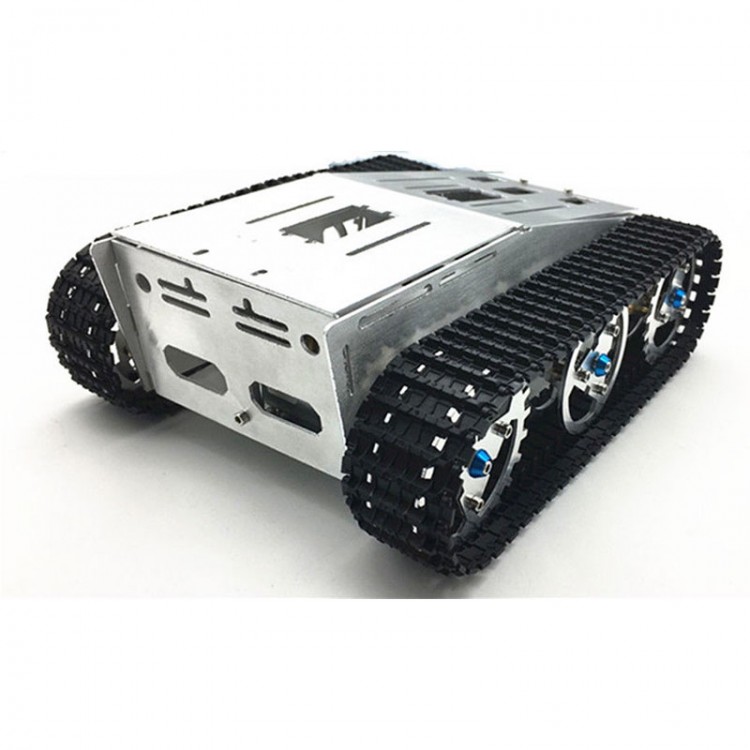

Specification:
- Body material : Aluminum alloy
- Color: silver
- Input voltage: 12v
- Size: Length 270x Width 195 x Height 90mm
- Wheel material: engineering plastic
- Motor : aluminum alloy
- Motor speed: 100 rpm
- Product condition: assembly completed
Motor specification:
- 25GA370 DC Geared Motor Speed Reducer Motor Low Speed Motor High Torque Slow Speed Motor 12v
- The motor reduction ratio (variation ratio): 1; 46
- No-load current MA is less than or equal to: 60
- No-load speed ratio RPM : 130
- Rated torque KG, CM: 1.0
- Rated speed rpm: 100
- Rated current A: less than or equal to 0.45
- Maximum torque KG. Cm: 3.6 KG. Cm
- Stop current A: 1.3A
Package list:
- Tank chassis x1
- Wrench x2
- Pendant x1
- Several screws
