4WD RC Car Mecanum Car 370 Encoder Motor Changeable Version Without Battery Electronic Control

Availability: In stock, usually dispatched in 1 business day

  • Price:$140.33
  • Price in reward points: 1403 Reward Points: 14
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $137.52 $134.72 $130.51 $124.89 Contact US
Quantity:

4WD RC Car Mecanum Car 370 Encoder Motor Changeable Version Without Battery Electronic Control

Features:

* Mecanum wheel omni-directional movement: 360-degree free movement.
* Four-wheel ground suspension: high-strength stainless steel guarantees running strength, ball bearings guarantee smooth rotation.

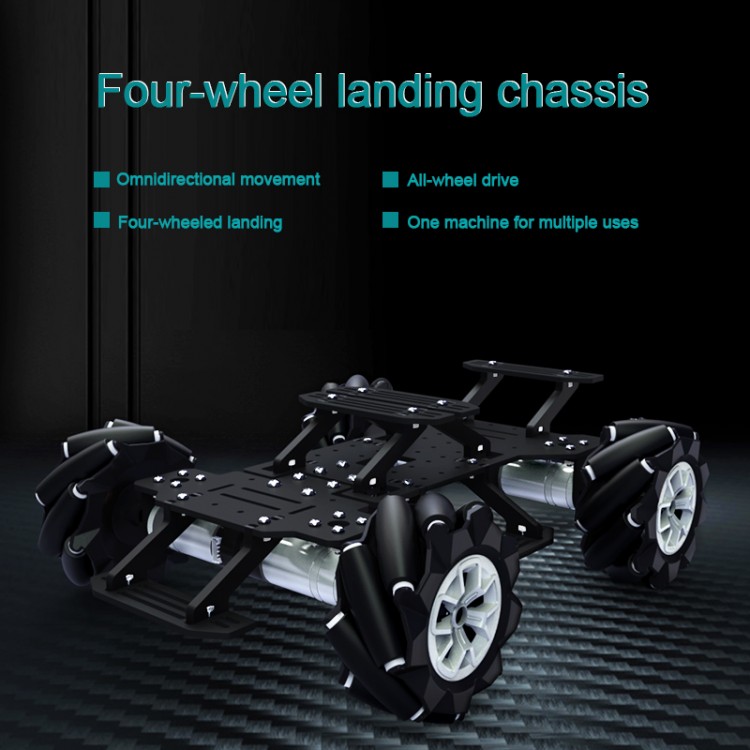

* Four wheels on the ground: When the ground is uneven or over obstacles, the chassis keeps the real-time four wheels under force.
* Changeable frame: Modular design space can be expanded as you want (you can install and design the car according to actual needs).
* One vehicle for multi-purpose. Suitable for multiple scenarios, and more gameplay is waiting for you to develop. Used for automatic visual capture, expansion of robotic arms, expansion of infrared line patrol, ultrasonic, slam lidar automatic driving.
* Hard plastic and soft rubber wheels are stronger
* The structure design of the wheels makes operation smoother
* Glass fiber board frame is processed by CNC, with high hardness and long life

Overall Performance Parameters (Changeable Version):
- Size: 332 x 252 x 108mm
- Max. Load Capacity: 10kg
- Max. Speed: 1.3m/s
- Wheels: Mecanum wheels 360-degree omnidirectional movement (compatible with a variety of conventional tires)
- Power: Full-time four-wheel drive
- Encoder: AB bidirectional incremental magnetic Hall encoder

Strong Magnet Motor:
-Suitable for scenes with small size, large load and high speed
- Rated voltage: 12V
- Rated current: 2.6A
- Rated speed: 460RPM
- Rated torque: 3.5kg.cm
- Locked-rotor current: 16A
- Reduction ratio: 1:34
- Attention: For maximum power, a driver above 10A is required

Encoder Parameters:

- Type: AB two-phase incremental magnetic Hall encoder
- Input voltage: DC 3.3/5.0V
- Interface: PH2.0-6P
- Output signal: square wave AB phase
- Response frequency: 100Khz
- Pulse: 11/RPM (resolution = pulse * reduction ratio)


Package Included:
Frame:
- Chassis plate-front axle    1pcs
- Chassis plate-rear axle    1pcs
- Universal support              12pcs
- Aileron                                  6pcs

Four-Wheel Landing Rotating Assembly (Installed before delivery):
- Linear bearing                    2pcs
- Steel shaft 8x60                 1pcs
- Metal shaft sleeve             1pcs
- Thrust washer                    2pcs

Motor Chakra Assembly:
- Mecanum wheel-left         2pcs
- Mecanum wheel-right      2pcs
- Coding gear motor           4pcs
- Motor base                         4pcs
- Coupling                            4pcs

Screws:
- M4x14          14pcs
- M3x6             8pcs (for motor and bracket)
- M3x8             24pcs (Aileron fixing screw)
- M3x10          16pcs (for motor bracket and frame)

Fastening Screws:
- M2.5       4pcs

Nuts:
- M3          40pcs

Note:
- Battery and electronic control are not included.
- Assembling is needed.
- 4pcs HP2.0-XH2.54-6P flat cables are not included.
