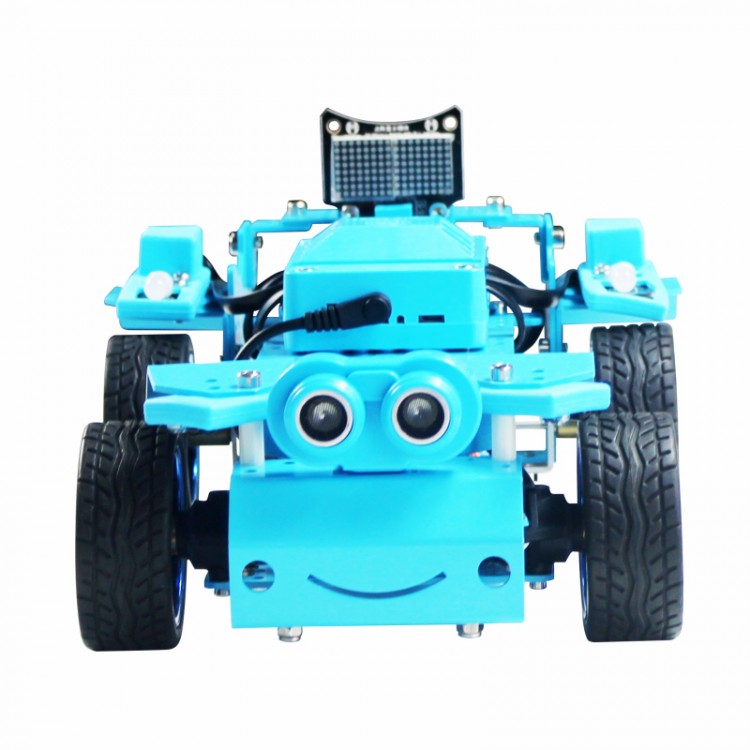

4WD Smart Robot Car Kit AI Remote Control Car Kit Unassembled Version For Scratch

4WD Smart Robot Car Kit AI Remote Control Car Kit Unassembled Version For Scratch

Description:
This is an intelligent programming educational robot that integrates robot hands-on assembly, sensor learning, power control learning, programming education learning, and creative design learning.

Features:
- AI programming education robot.
- Land remote control smart car.
- DC Motor: The power source of the robot.
- Servo: The core of robot joints and steering control.
- Ultrasonic Sensor: Use the principle of ultrasonic to measure distance and avoid obstacles, and explore the scientific and mysterious world of sensors.
- Infrared Sensor: Use the sensor to control and detect obstacles.
- RGB Light: Program control the color of the car light and enjoy the colorful experience.
- Mobile phone APP wireless programming control for Android system. After the Bluetooth connection, online programming can be set in the APP, DIY programming program anytime, anywhere, open up your creative thinking.
- Graphical programming on PC side. Version for Scratch: Hello Maker Code is based on that for Scratch 3.0. Version for Micro:bit: Web version of the official one for Micro:bit and Hello Maker Bit based on that for Micro:bit.
- Graphical programming controller. Professionals (university students, scientific researchers, technology enthusiasts, etc.) conduct secondary development, provide schematics and source code, and can be equipped with a variety of sensors and electronic modules.
- H1 Main Control Board: For or Scratch version. It is developed based on open source hardware architecture for Arduino UNO, using chip for ATmega328P, developed in development environment for Arduino IDE.
- Rich Peripheral Interfaces: I2C, digital sensor interface, analog sensor interface, four-way DC motor interface, four-way PWM servo interface, and other special interfaces, so that your programming is no longer limited, and do more tricky robots for later sufficient preparation.
- Reliable Technical Support: Provide graphical programming materials, provide schematics and C language source code, and support secondary development.
- Provide source code for Micro:bit, source code for Scratch, source code for Arduino. Provide schematic diagram.
- Various functions guarantee fun. DIY colorful lights, infrared obstacle avoidance detection, automatic ranging and obstacle avoidance.
- A variety of gameplay and fun operations: Through APP operation, it can move forward, backward, left and right, finish obstacle avoidance and other actions. You can also customize programming movement mode.

Specifications:
- Controller: H1 main control board (version for Scratch) /Main expansion board (version for Micro: bit)
- Motor: GM25GA-310TA DC geared motor; speed ratio: 1:34
- Sensors: multiple sensors can be expanded
- Power supply lithium battery: 11.1V lithium battery (battery is not included)
- Product Size: about 31 x 20 x 13 cm (LxWxH)

Package Included:
- 1 x Main Control Board
- 2 x RGB Sensors
- 1 x Ultrasonic Sensor
- 2 x IR Obstacle Avoidance Sensors
- 1 x Dot Matrix Display Module
- 1 x 6V 13RPM Motor
- 4 x Horizontal Wings
- 1 x Motor Bracket
- 6 x 2020L Brackets
- 2 x L Brackets for Rear Wheel
- 1 x 3080 Board
- 2 x 1070 Strips
- 2 x Vertical Wings
- 1 x Multifunctional Servo Bracket
- 3 x 80140 Boards
- 1 x Front Cover
- 4 x M4*45 Double-pass Copper Columns
- 2 x 4mm Short Copper Couplings
- 2 x 4mm Lengthened Copper Couplings
- 2 x Steering Knuckles
- 1 x Short Ball Head Tension Rod
- 1 x Long Ball Head Tension Rod
- 1 x 3mm Transmission Shaft
- 1 x M5 Copper Gear
- 1 x M5 Small Copper Gear
- 1 x Set of HM-MS07 Servo
- 4 x 65mm Rubber Wheels
- 2 x M3*6 Bearings
- 2 x M4*7 Bearings
- 2 x M4*18 Nylon Columns
- 1 x Half Rudder Angle
- 1 x Bag of Parts (Include wrench, data cable, connection cable, screwdriver, screws, etc.)

Attention:
- It is an educational product of AI robot programming for primary and secondary school students.
- Version for Scratch and version for Micro:bit are available. Except for different types of control board and programming software, their functions are basically the same.

Note:
- Assembling is needed. Assembly instructions is provided.
- Please follow the teaching materials to learn programming development. Beginner children need to learn under the guidance of parents.
- Optional Colors: Peacock Blue, Pearl White. Please choose the color you want when purchasing.
- The picture is for size reference only. Only the version for Scratch comes with dot matrix display module.
- Battery pictured is not included in the package.
