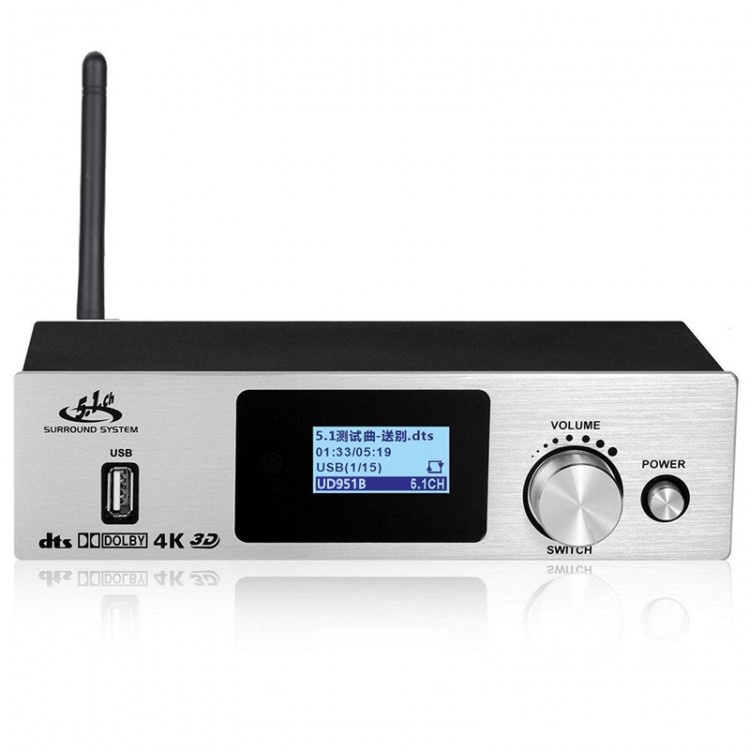

5.1 Audio Decoder DAC USB Sound Card Bluetooth Receiver 5.1CH Digital Audio System UD951B Silver

5.1 Audio Decoder DAC USB Sound Card Bluetooth Receiver 5.1CH Digital Audio System UD951B Silver

UD951B:
HDMI 2.0 version supports 4K at 60HZ maximum. HDCP version 2.2 supports HDR.

Functional Parameters:
- Input interface: HDMIx3 + ARC + coaxial + optical fiber + PC-USB + AUX + USB music player + Bluetooth 5.0

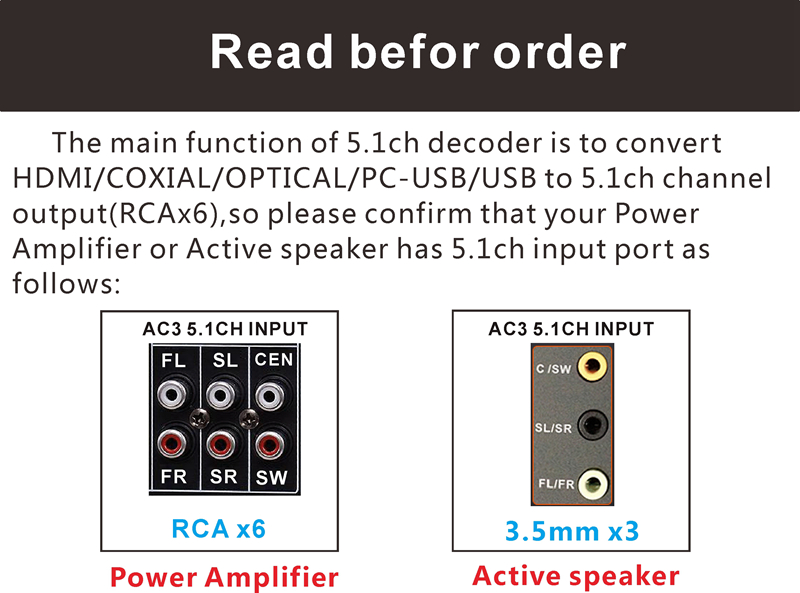

- Output interface: 5.1ch + optical fiber + coaxial
- HDMI resolution: maximum 4K*2K at 60hz (UD951B)
- Display interface: LCD panel
- Operation mode: button operation and remote control
- Decoding capability: For DTS/DTS-ES/AC3/DTS-HD/DolbyTrue HD
- USB playing support: DTS/AC3/WAV/DTS-ES/APE/FLAC/HDCD/MP3, etc.
- Decoding performance: support hard decoding (true 5.1) and soft decoding (virtual 5.1)
- Bluetooth receiver version: V5.0
- Bluetooth receiver distance: within 20m/65.6ft

Specifications:
- Product model: UD951B
- HDMI input: 3ch HDMI version 2.0 (4K at 60Hz)
- HDMI(ARC) output: 1ch
- Optical input: 1ch
- Coaxial input: 1ch
- PC-USB input: 1ch independent PC-USB port
- AUX input: 1ch
- Optical output: 1ch
- Coaxial output: 1ch
- Bluetooth receiver: 1ch, high-quality version 5.0
- USB music player: dts, ac3, wav, ape, flac, m4a and mp3
- Support sampling rate: up to 192khz/24bit
- Volume adjustment: knob or remote control
- Mono volume adjustment: support
- DAC chip: 3pcs crystal original CS4354
- Interface technology: HDMI/audio base all adopt gold-plated technology
- Product weight: 950g/2.1 lb
- Product size: 202 x 103 x 53mm/8 x 4.1 x 2.1"
- Working voltage: DC-12V
- Working current: 0.4A

Functions:
- For dts digital, Dolby digital, Ultra HD 4KX2K, APT lossless and FLAC lossless
- Support HDMI, optical, coaxial, PC-USB, USB 2.0, AUX and Bluetooth
- Support FLAC, APE, DTS, DTS-ES, AC3, WAV, HDCD, AAC, MP3, M4A and the like
- Support HDMI to optical + coaxial + 5.1ch + HDMI
- Support ARC to optical + coaxial + 5.1ch
- Support optical to optical + coaxial + 5.1ch
- Support coaxial to optical + coaxial + 5.1ch
- Support PC-USB to optical + coaxial + 5.1ch
- Support AUX to optical + coaxial + 5.1ch
- Support Bluetooth to optical + coaxial + 5.1ch
- Support U disk playing to 5.1ch (cannot output from optical/coaxial)

Advantages:
- HDMI 2.0, 4K at 60HZ. HDCP version 2.2 supports HDR
- 8.3 million pixel value. 4K resolution 3840*2160,. Compared with 1808P, the picture quality is 4 times clearer
- Support hard decoding and soft decoding
- Support source devices such as Blu-ray players, for PS3, computers, set-top boxes, network players, etc.
- All-round audio decoder
- Support for soft decoding, hard decoding, and DTS/Dolby decoding
- 5.1/2.0 channel output
- Support U disk
- Full format supported
- LCD screen
- Remote control function
- Full interface support
- The voice is clear and loud
- 4Kx2K
- Enjoy 5.1 channel surround
- Surround sound for Dolby provides you with a shocking experience. Shocking stereo sound, 360-degree surround, gives you an immersive sense of reality
- Multichannel. Using professional digital audio processing chip
- Exquisite craftsmanship and smooth texture

Product Features:
1. Support HDMI (x 3) + coaxial + optical +PC-USB + AUX + USB + Bluetooth input interfaces
2. Support HDMI (ARC) + optical + coaxial + 5.1ch output interfaces
3. HDMI supports version 2.0 (UD951B), with a maximum resolution of 4Kx2K at 60fps
4. USB playing support for DTS, DTS-ES, AC 3, WAV, FLAC, APE, etc.
5. Computer USB sound card supports system source code input such as for winXP/Win 7/win 8/win 10
6. All input interface signals (including USB playing) can decode 5.1ch output
7. All input interface signals (except USB playing) can be output via optical fiber or coaxial
8. If the audio source is 5.1 format, then hard decoding is true 5.1. If the audio source is 2.0, then soft decoding is virtual 5.1
9. Supports two output channels of 2.0 and 5.1 channels. Connect to FL/FR in 2.0 output mode
10. Support remote control or panel keys to switch input sources, and display the corresponding channel name

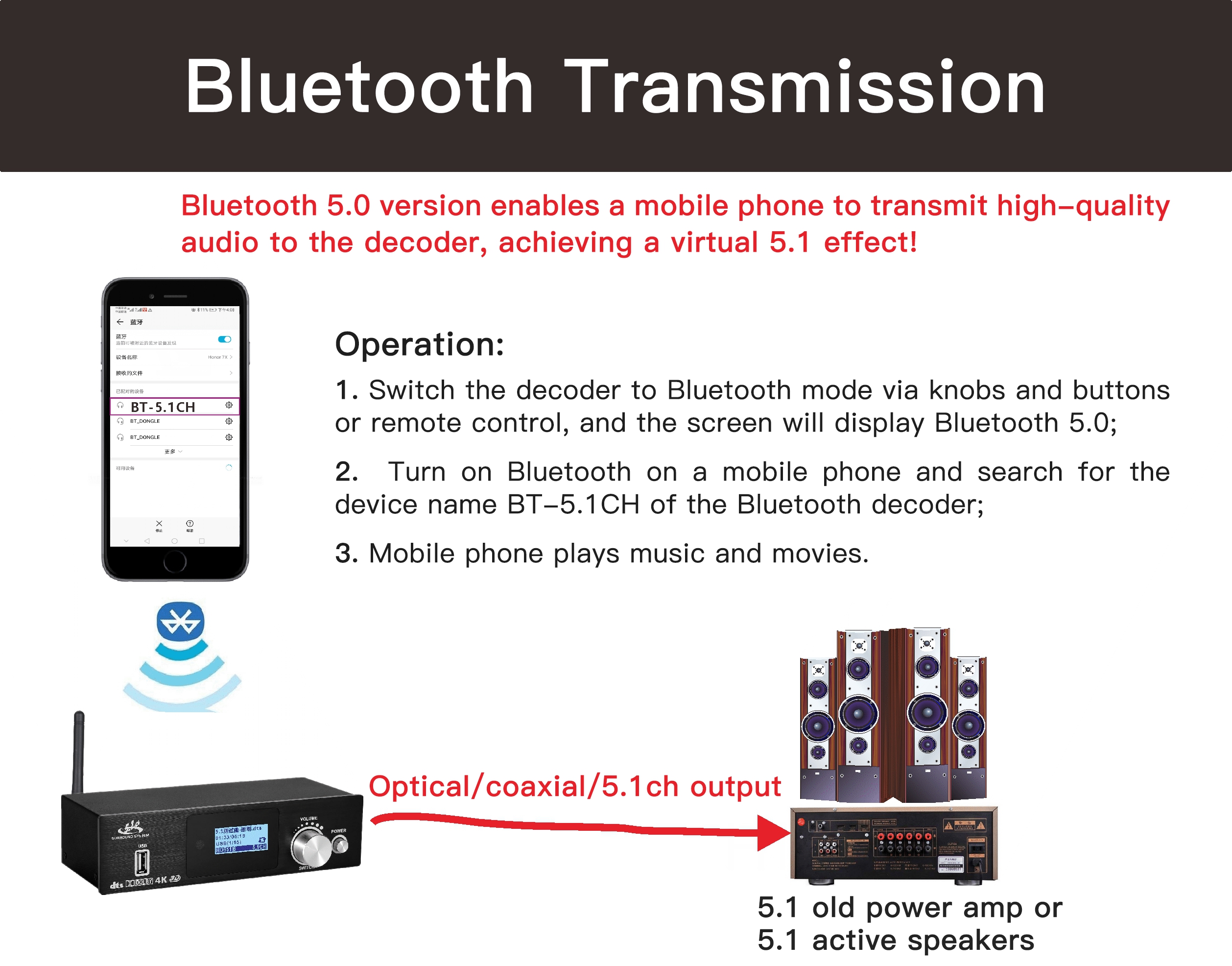

11. Bluetooth supports version 5.0, and transmission distance is up to 20m/65.6ft
12. Support channel selection power-off memory and USB playing track power-off memory function
13. USB playing supports Previous/Next/Single Cycle/Repeat All and other operations
14. Use DC12V/1A external power adapter for power supply

More Details:
- U disk jack supports dts/dts-es/wav/ape/flac/mp3 and other formats. Support Previous/Next/Single Cycle/Repeat All, etc.
- LED display shows the playing time
- Volume knob. Rotate VOLUME to adjust the volume
- HDMI input port. Resolution supports 4K*2k 30fps max. Compatible with various network boxes/Blu-ray players/computers/for PS4, etc.
- Support ARC function. One HDMI cable easily connects it to TV or projection expansion sound system
- Optical/coaxial input. Support 192Khz, compatible with digital output of various playing devices

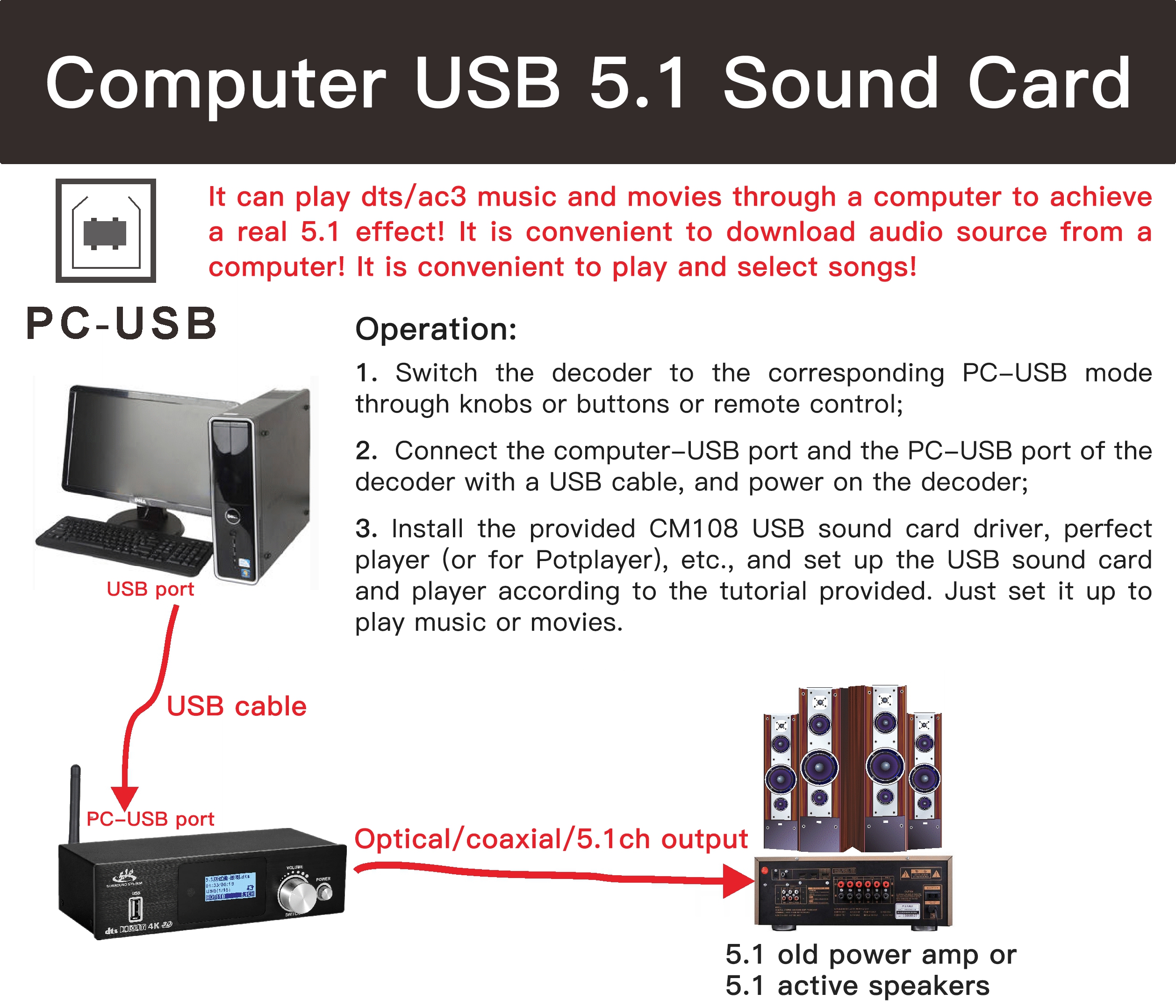

- Computer USB sound card. Supports laptops and desktop PC. Support for WinXP/Win 7/Win 8/Win 10 and other systems

Package Included:
- 1 x Audio Decoder Host
- 1 x IR Remote Control
- 1 x DC 12V/1A Power Adapter
- 1 x Digital Optic Fiber
- 1 x User Manual
- 1 x Bluetooth Antenna

Note:
- 1.5V AAA batteries for the remote control are not included.
- Other items pictured are not included in the package, for demonstration purposes only. Thank you for your understanding!
