5.1 Channel Home Theater Subwoofer Amplifier Bluetooth 5.0 350W PM-01 Silver w/ 24V Power Adapter

5.1 Channel Home Theater Subwoofer Amplifier Bluetooth 5.0 350W PM-01 Silver w/ 24V Power Adapter

Features:
* 5.1-channel home theater amplifier has stunning sound effects. Lossless U disk playing, DSP independent decoding, high-definition Bluetooth connection
* Built-in DSP decoder: multi-channel algorithm application and dynamic separation technology, providing excellent intelligent noise reduction, precise positioning and stereo surround feeling
* Can be used with cinema speakers. Its surround sound effects are not all heard from the surround speakers. A good sense of positioning and separation from the box can be formed between the surround speakers and the front speakers, so as to achieve the integration of sound and picture
* Sturdy body and superb craftsmanship. The shell adopts an all-aluminum alloy metal body, and the whole design is integrated and beautiful
* Wireless Bluetooth, convenient and enjoyable. Wireless Bluetooth 5.0, support for aptX-HD HD protocol, high-speed and stable transmission, and enjoy the fun of wireless transmission. Support the mainstream music and audio playing software in the market
* Home TV coaxial/optical SPDIF signal can be input directly
* Support multiple formats, support for lossless playing APE, WMA, FLAC, MP3, WAV and other formats. HD decoding, lossless sound quality. Restore high-fidelity sound quality, get rid of the confusion caused by poor sound quality
* The number of channels is adjustable, suitable for various scenarios. Button to select 2.0 channel/2.1 channel/5.1 channel output. It is recommended to use with KTV speakers, 5.1 home theater, bookshelf speakers
* You can enjoy 5.1-channel surround sound at home. Only an ordinary TV + 5.1 channel speakers + our power amplifier, you can realize the enveloping theater-level shocking sound enjoyment
* Professional DSP decoding: The power amplifier is equipped with a DSP decoding chip to apply professional algorithms and dynamic separation technology. Only by connecting the power amplifier and coaxial/optical fiber of TV, it can automatically distribute and simulate the 2.1 and 5.1 channel positioning and sound effect. Even playing a 2.0-channel audio file can also bring a sense of surround and integration in 6D surround
* Multi-channel surround home theater amplifier

Indicators Introduction:
Start Indicator:
* Standby-----green
* Start ----- blue

InPut Indicator:
* Blue---Bluetooth mode
* Yellow-U Disk
* Green---2.0CH INPUT
* Red---5.1CH INPUT
* Purple---COAX IN
* Cyan--OPT IN

Outmode Indicator:
* Red---5.1CH output
* Green---2.0CH output
* Blue---2.1CH output

Technical Parameters:
* Model: PM-01 (Not support U disk to play)
* Power IC: TPA3116
* Product name: Multi-channel Bluetooth power amplifier
* Front main channel: 50W+50W (3-8 inches recommended)
* Surround channel: 50W+50W (3-8 inches recommended)
* Center channel: 50W (3-8 inches recommended)
* Bass channel: 100W (5-10 inches recommended)
* Music power: 350W
* Harmonic distortion: 0.01% (at 1Khz)
* Signal to noise ratio: ≥102dB
* Frequency response: Front channel: 10Hz~40kHz; Surround channel: 10Hz~40kHz; Center channel: 10Hz~40kHz; Subwoofer channel: 10Hz~180Hz
* Treble adjustment: front channel ±10dB (±2dB)
* Bass adjustment: front channel ±10dB (±2dB)
* COAX IN: Support 44.1~192khz (16~32bit)
* OPT IN: Support 44.1~192khz (16~32bit)
* PM-01 Bluetooth: Support 44.1~48khz (16~24bit)
* PM-01 Bluetooth: Bluetooth 5.0, QCC3031 (for SBC/AAC/APTX/APTX-HD)
* Net weight: 1.35KG
* Power source: DC24V
* Dimensions: 260 x 48 x 170mm

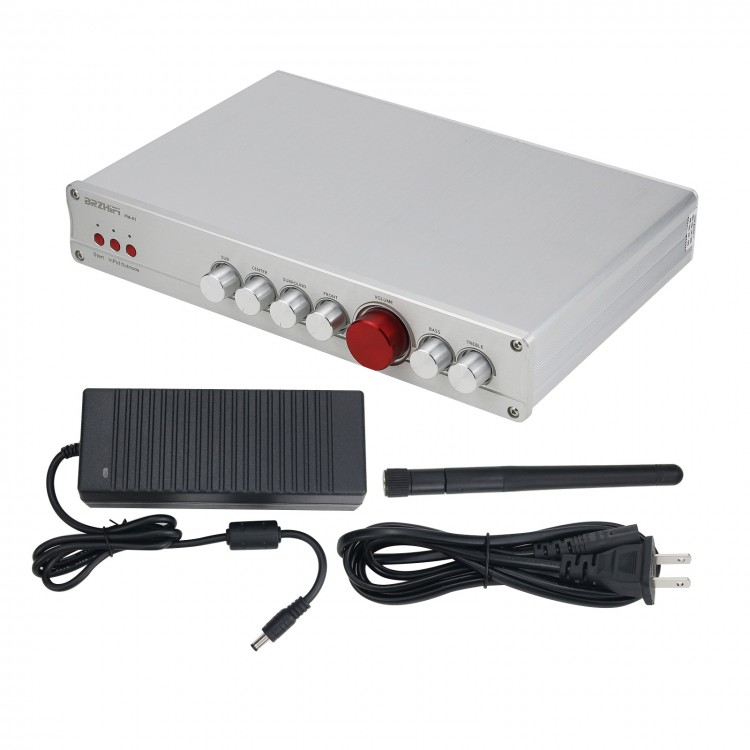

Package Included:
* 1 x Set of Bluetooth Power Amplifier

Note:
* It is assembled.
