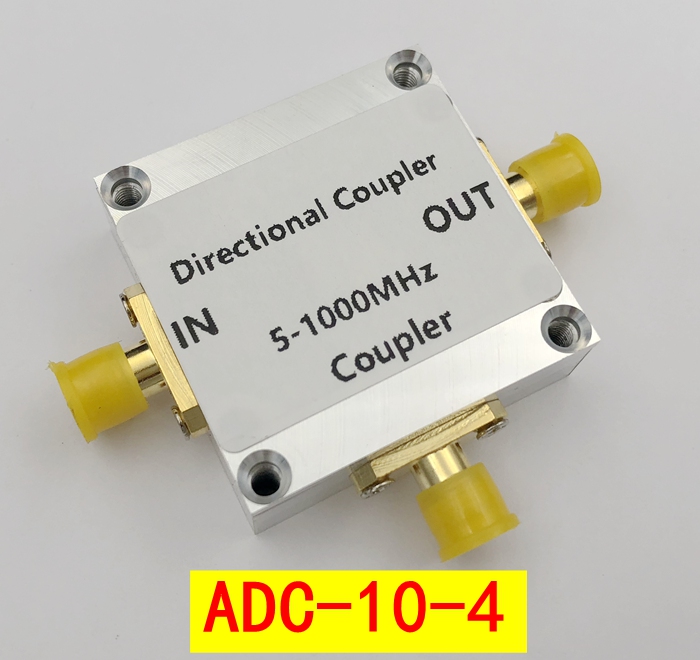

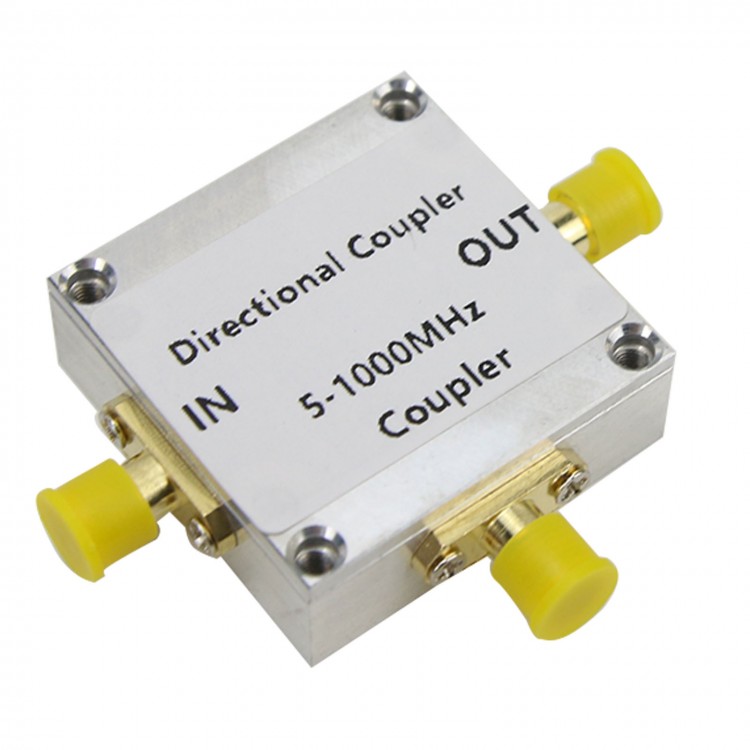

5-1000MHz RF Directional Coupler Wideband Directional Coupler SMA Connectors ADC-10-4

Availability: In stock, usually dispatched in 1 business day

  • Price:$32.34
  • Price in reward points: 323 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $31.69 $31.05 $30.08 $28.78 Contact US
Quantity:

5-1000MHz RF Directional Coupler Wideband Directional Coupler SMA Connectors  ADC-10-4

Description:

This directional coupler is suitable for signal sampling in the shortwave and VHF frequency bands.

Specifications:
- Model No.: ADC-10-4
- Impedance: 50Ω
- Insertion Loss: <0.5dB (see the measured S21 curve for details)
- Coupling: 10 dB (see the measured S21 curve)

Interfaces:
- RF In (RF signal input terminal): SMA-F
- Input Signal Coupling End: SMA-F
- RF Out (RF signal output terminal): SMA-F

Package Included:
- 1 x Directional Coupler

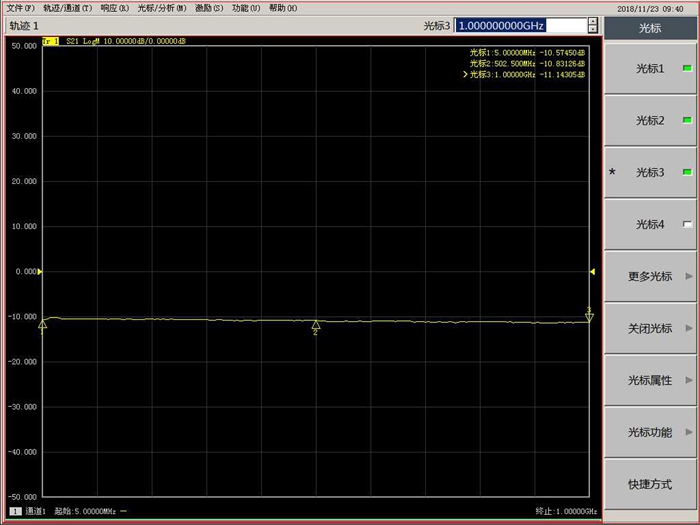

Measured input signal to coupled signal 10DB


Measured input signal to output signal
