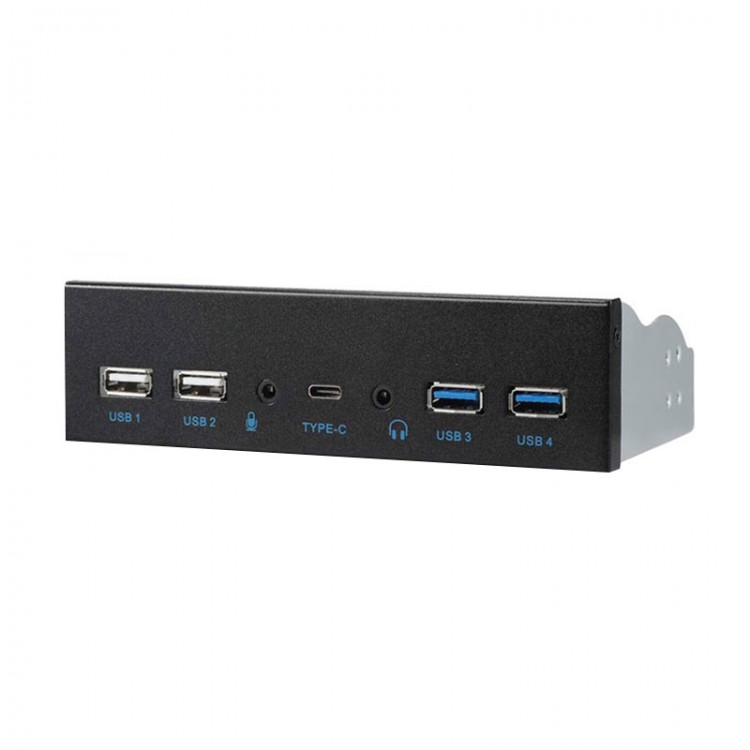

5.25" Optical Drive PC Front Panel Hub Supports Type-C USB3.0 USB2.0 Microphone Input Audio Output
Version Advantages:
- Front Panel USB3.1 TYPE-C + 2*USB3.0 + 2*USB2.0
- USB Data Transfer Rate: Upto10Gpb/s USB3.1, 5Gpb/s USB 3.0 Supper Speed and USB 2.0 480Mbps
Attention:
- This panel is installed in optical drive position of your computer chassis. It fits 5.25 inch optical drive. It is Not for a floppy disk.

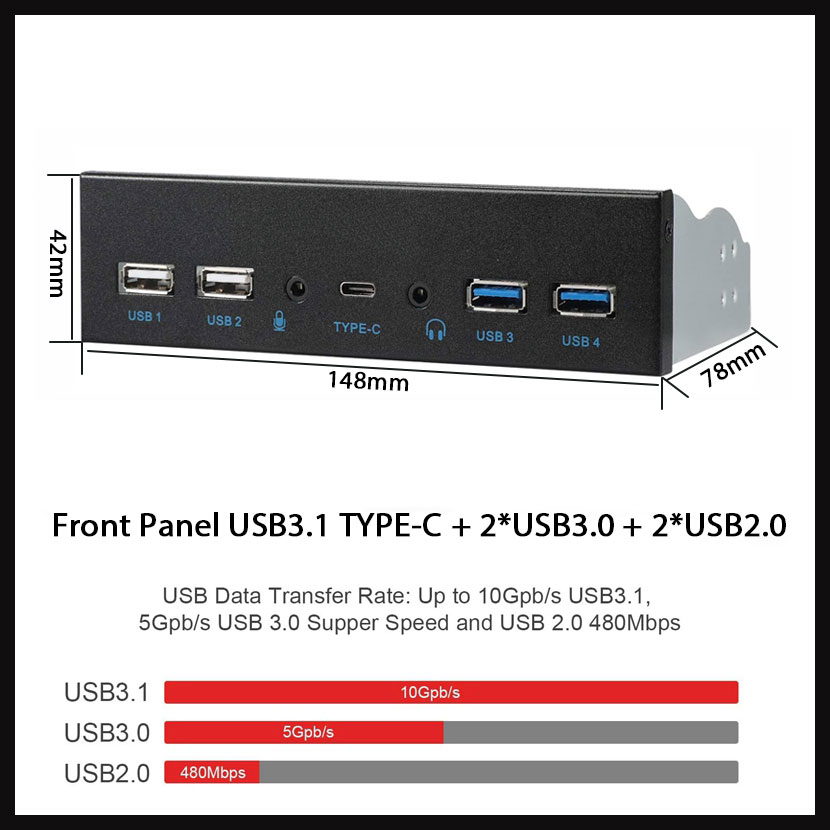

- When purchasing, please check whether the fixing screw hole of the optical drive of your case is a long hole. If it is a round hole, please check the size (the size diagram is below) to avoid installing an uneven case and causing unnecessary trouble!
- There may be a slight deviation from the color and size of your case. The color of the panel and the bracket are different. Buyers who have high requirements on appearance and are afraid of trouble think twice before purchasing.
- In order to protect it during production, a protective film is specially added. After receiving the product, please test before removing the protective film.
Specifications:
- Model: PAN4U1T-N01
- Interfaces: 1*USB3.1 TYPE-C, 2*USB3.0, 2*USB2.0, 1*microphone input port, 1*audio output port

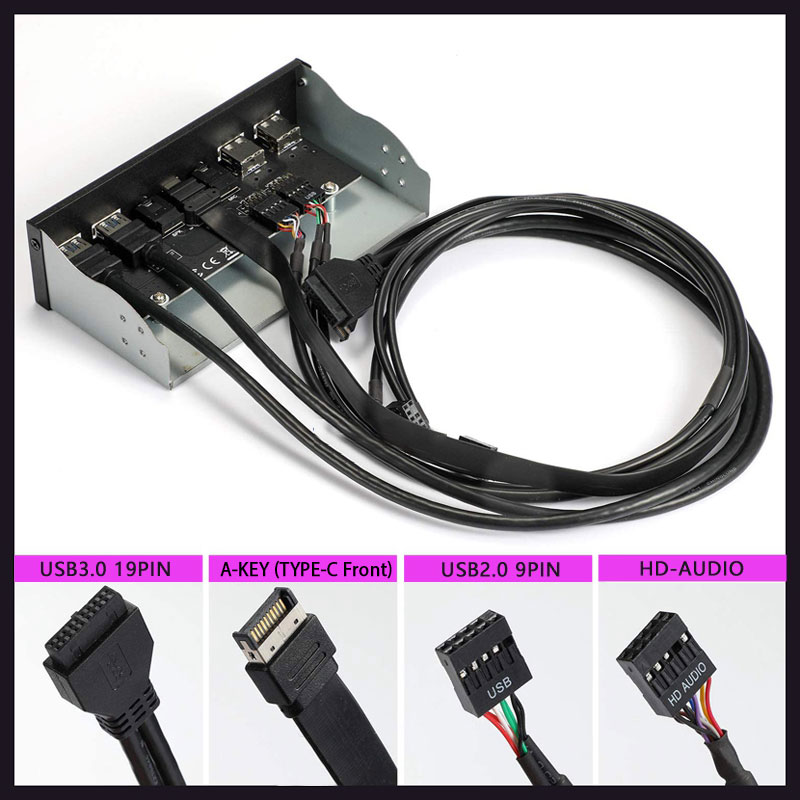

- Input interfaces: TYPE-C, USB3.0 19PIN, USB2.0 9PIN
- Interface rates: 10Gbps, 5Gbps, 480Mbps
- Installation location: optical drive position
- Working environment: -30 to 70℃
- System support: For WIN XP/WIN 7/8/10/2003/MAC/LINUX
Package Included:
- 1 x Set of Front Panel
Product Usage:
Because there are more and more USB devices now, USB ports on your PC chassis are not enough! You can use this device to directly convert PCI-E interface on the motherboard to 4 USB interfaces, and install them in an idle optical drive position. This provides front USB interfaces and a audio interface, no need to bend over to plug in. Very convenient to use.
Hardware Requirement:
A motherboard or a adapter card with PCI-E interface and a chassis with a free optical drive position are required.
