Description:

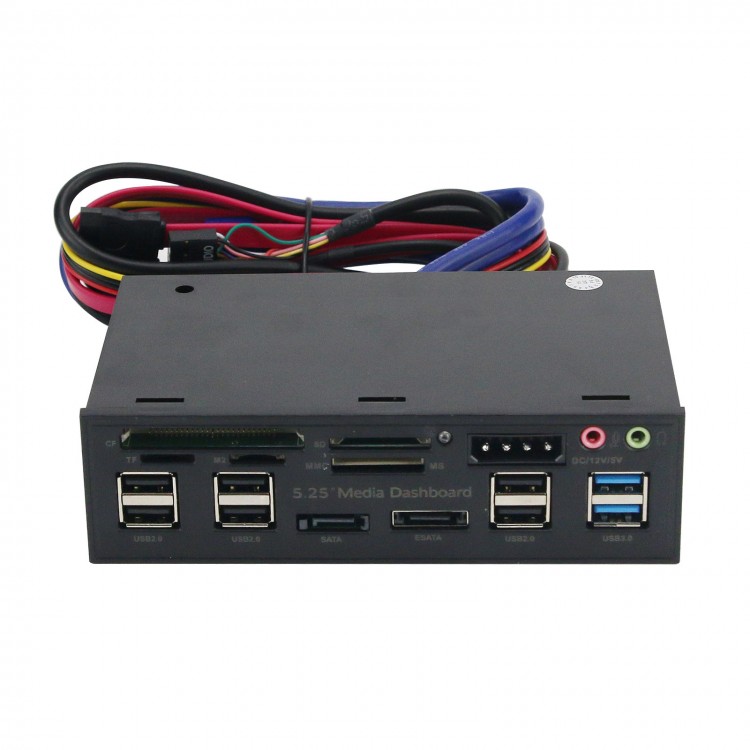

- 5.25inch Media Dashboard Front Panel USB3.0 + 3 port
USB 2.0 HUB + eSATA + SATA +M2/TF/SD/MMC/MS/CF Audio Multi Card Reader
for Computer Case Optical Drives Bay.
Features:
1. 2-port USB3.0 + 6-port USB2.0 front panel.
2. 1 SATA interface, 1 ESATA interface, 1 large 4PIN power supply, 1 microphone interface, 1 audio interface.
3. Support M2 / TF / SD / MMC / MS / CF slot (Max128GB memory card).
4. High-speed USB2.0 data transmission rate up to 480Mbps.
5. High-speed USB3.0 data transfer rate up to 5Gbps.
6. E-SATA interface, transfer speed up to 3.0Gpbs
7. Audio port, front speakers, including microphones to solve the inconvenience of plugging and unplugging the back of your chassis.
8. The LED indicator can indicate the card read and write status.
9. Support: WindowsXP / Vista / Win7 / 8/10; Linux / MAC OS system, etc.
10. Connect the motherboard interface: 1 20PIN 3.0 cable, 1 large 4PIN power cable, 1 DuPont USB2.0 cable, 2 SATA data cables, 1 AUDIO cable.
11. Front power supply 12V5V output (SATA 15PIN power interface), standard round 4PIN to 15PIN power cable, can directly supply power to SATA hard disk:
Specifications:
- Product Name: Desktop optical drive multi-function panel
- Product model: 525E
- Product size: 146*90*40mm
- Product weight: 0.34KG (excluding accessory packaging)
- Product material: ABS
- Output line length: 600mm
| MODEL NO. | 2.0 Card | USB2.0 HUB | USB3.0 HUB | e-SATA | SATA | L/R MIC | 12V 5A DC | 1394 | LCD | 3.0PC interface |
| 525 | CF/SD/TF/M2/MS | 2 |
| √ | √ | √ |
| √ | √ |
|
| 525A | CF/SD/TF/M2/MS | 8 |
| √ | √ | √ | √ |
|
|
|
| 525B | CF/SD/TF/M2/MS/SIM/SMARP | 4 |
| √ |
| √ | √ | √ |
|
|
| 525E | CF/SD/TF/M2/MS | 6 | 2 | √ | √ | √ | √ |
| √ | 3.0 20PIN |
| 525F20 | CF/SD/TF/M2/MS |
| 2 | √ |
| √ |
|
| √ | 3.0 20PIN |
| 529 | CF/SD/TF/M2/MS | 4 | 2 | √ |
| √ | √ |
|
| 3.0 20PIN |
Package Included:
- 1 x Optical Drive Panel
- 4 x screw
- 1 x manual
Notes:
1. Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2. Please allow slight dimension difference due to different manual measurement.
