5-50mm H.265 IP Camera 4MP PTZ Control Motorized Zoom Lens 1/3" CMOS OV4689 + Hi3516D IPC Module Board
Product Description:
- Product Name: 4MP IP Module
- Product Module: IPC 4MP MOTORIZED Series (3516D+OV4689,Support Auto-Focus and Zoom Lens)
4.0 megapixel Low-Illumination 38x38mm Single Board IP Camera Module, Hi3516D+OV4689 1/3" 4.0 Megapixels Chipset, the highest resolution of 2592*1520, low illumination 0.6Lux F1.2 (color); 0.08 Lux F1.2(B/W); IR - CUT (day/night), adapt Box, especially suitable for multi-function(WIFI,Alarm,Audio/Vedio) dome and conch camera.
Lens Feature:
- Lens meterial is glass and metal,no plastic.
- Lens can be suit for high temperature and cold environment(-40 to 60).
- Lens have 3MP resolution,it can be supported by 1080p sensor.(1/2.7" inch)
- Lens have a very quiet motor.It's very smooth to change the focal length (2.8mm to 12mm).
- Lens have a very precision gear structure, It's ensure that no loss of focal length.
- Lens have IRCUT,it can be used in the night.

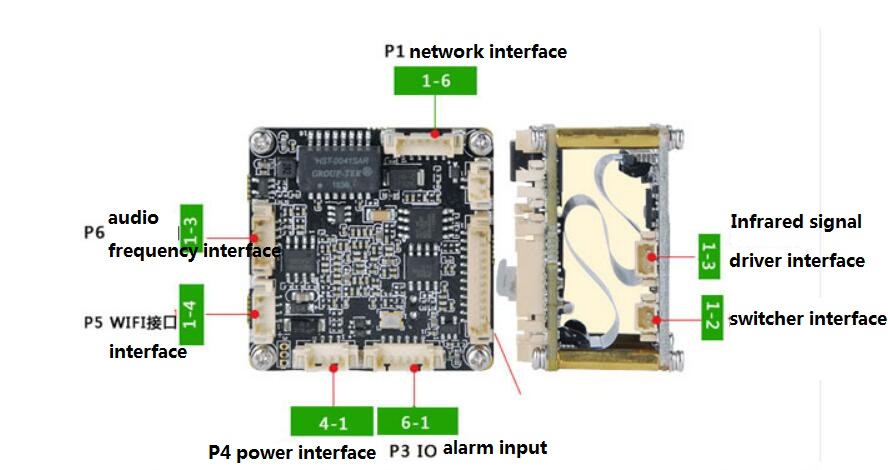

PWB Board Feature:
- Hisilicon Hi3516D
- Hisilicon Hi3516D 1/3" 4.0 Megapixels Progressive Scan OmniVision CMOS
- H.264 & H.265 MJPEG encoding
- Adjustable digital WDR
- Privacy Mask, Motion Detection
- Support Onvif 2.4 protocol
- Default IP:192.168.1.88 ,Login Name:admin,no password or password:admin.
- The software is:(English and Chinese Vision)
Product Specification:
- H.265 compression
- 1/3" OmniVision CMOS OV4689 image sensor resolution 2592 x 1520.
- 1080P resolution 1920 x 1080 (1080P, 25fps) / 2048 x 1536 (3MP, 25fps) / 2592 x 1520 (4MP, 18fps).
- Suport external USB WIFI module (chip RT3070). without connector, but have to soldering wires on the PCB.
- Working Temperature:-30° C-60° C;Humidity<95%
- Power:2W

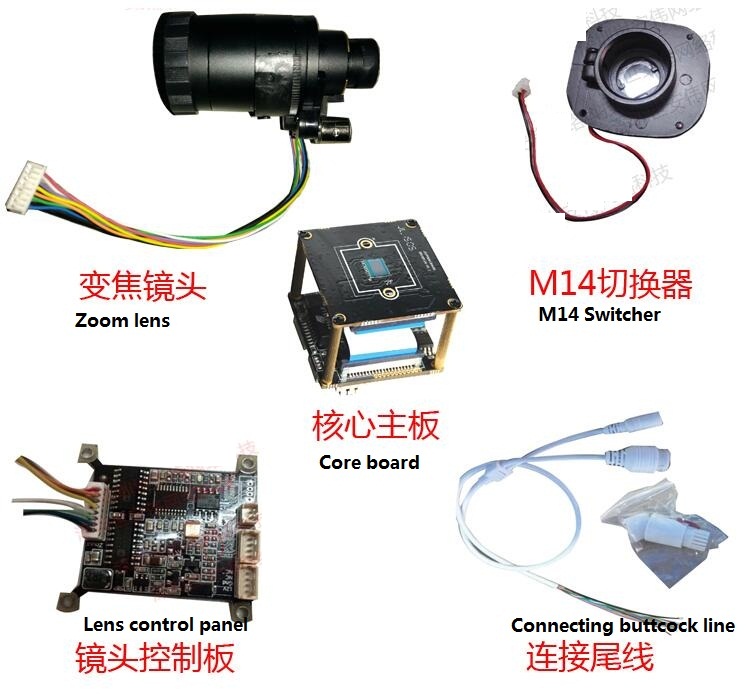

Package List:
- 1 x H.265 IP Camera 1/3" CMOS OV4689
- 1 x Hi3516D IPC Module Board
- 1 x LAN Cable
