5.5V-28V Operational Amplifier Tester Instrument OP AMP Tester Suitable for Single & Dual OP AMP
Description:

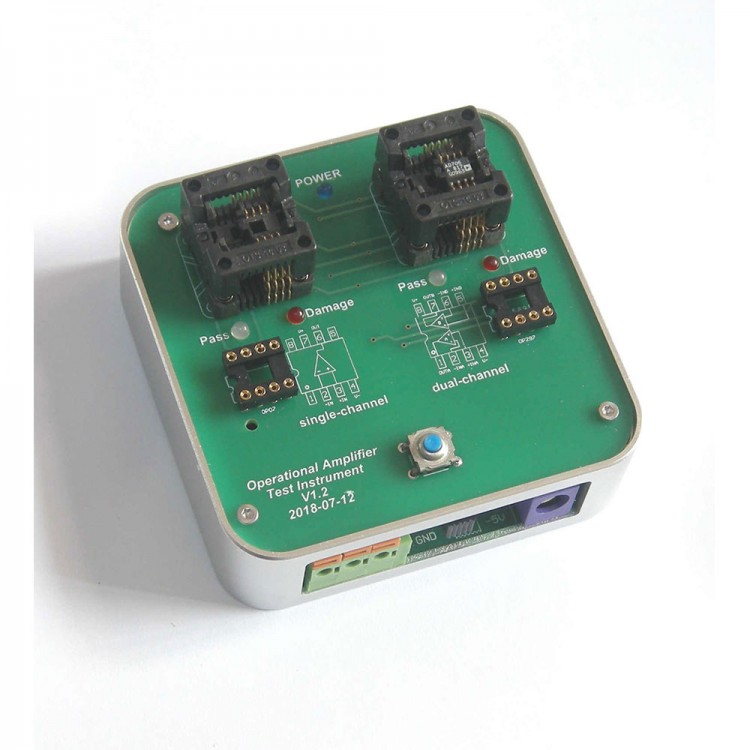

OP AMP Tester is used to judge the quality of the op amp. Its working voltage is 5.5V-28V. Plug a power supply into the power jack and the tester will beep briefly and the light will flash for about 3 seconds before the tester starts to work. Then put an op amp into the test socket according to its schematic diagram. If you want to inspect a chip component, you can use tweezers to put the chip component into the test socket. After placing the items to be tested, press the start button and the tester will start working. If the op amp under test passes the test, the tester will emit a short beep. If the op amp fails the test, the tester will emit three short beeps. And LED indicator lights (Pass and Damage) on the panel will indicate that the op amp passes the test or not.
The operational amplifier tester is specifically designed for SOIC packages and is suitable for single and dual op amps in general-purpose. It has audible and visual cues of pass and damage results for tested items, making the detection accurate and efficient. The principle is that the precision voltage division is buffered and then scanned by multiple ADCs to automatically calculate the fluctuation range and stability.

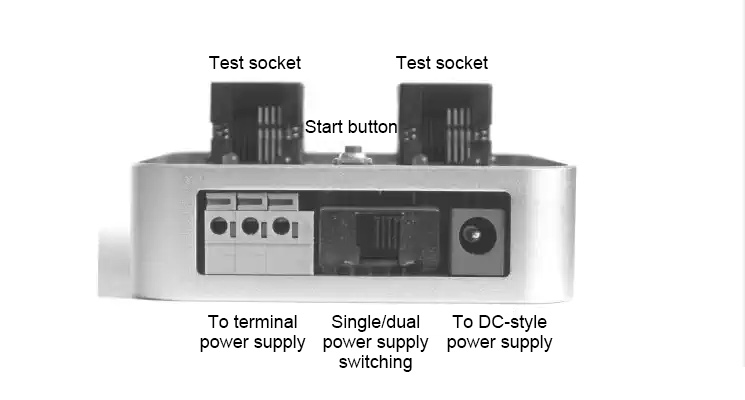

The tester can complete tests in 1-3 seconds. Tested op amps can be powered by dual 5V and single 5V power supply. And the power supply mode can be switched by a manual switch to fit your classic op amps (e.g. OP07) and new op amps (low-voltage single-supply rail-to-rail).
The tester can be powered by a normal wire or by a transformer with a DC plug. Its supply voltage is 5.5V-12.5V. Its sturdy aluminium alloy shell makes it durable and aesthetically pleasing.
Package Included:
- 1 x Operational Amplifier Tester
Packaging Details:
- Weight: 0.22kg
