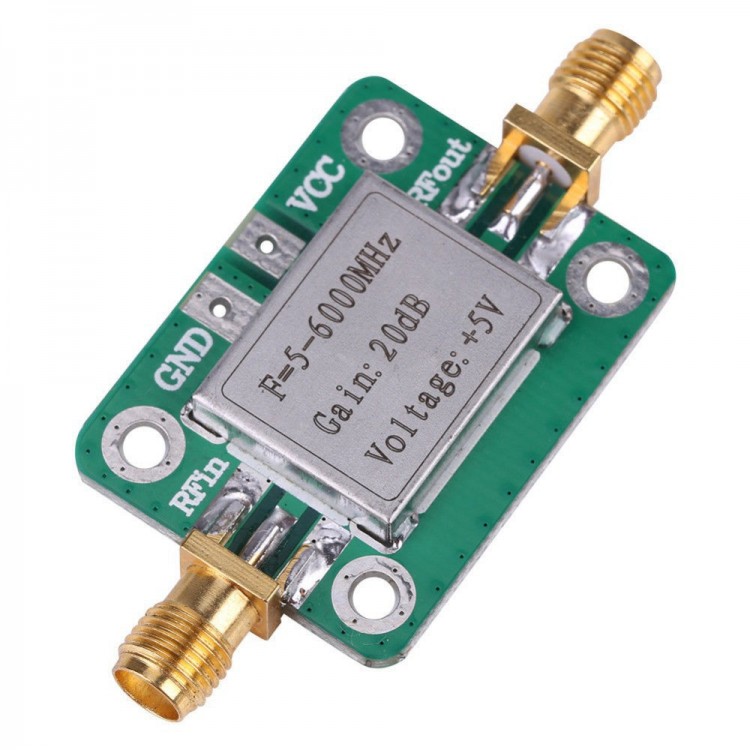

5-6000MHz RF Power Amplifier UWB Medium Power RF Power Amp Gain 20DB SMA Female Connector
1. Product Application:
The working frequency range of this amplifier is 5-6000MHz, and it has a power gain of 20dB. It boasts wide frequency range, stable gain, small noise figure, and large dynamic range (+20dBm at 1dBP). It is suitable for fixed gain amplification of various RF signals.
2. Technical Indicators:
1) Working frequency: 5-6000MHz
2) Amplification gain: 20dB
3) Output power: +21dBm (100mW) at 1dB compression point
4) Working current: 85mA (5V)
5) Supply voltage: 5VDC
6) System impedance: 50 ohms
7) Product weight: 5g
Package Included:
- 1 x RF Power Amplifier
