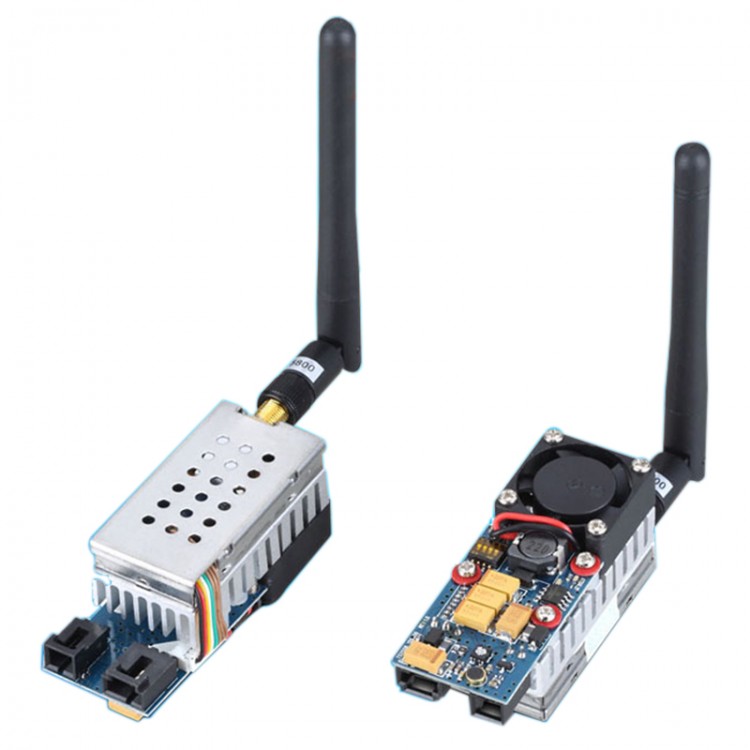

5.8G 1W 1000MW 8CH Weirless Audio Video A/V Transmitter for FPV Multicopter
Description:
1000MW transmitting module adopts wide dynamic 7-15V power supply (support 2-4S lithium battery), but to camera considerations, the 3S battery or 12V regulated power supply module ia necessary, comes with mic microphone, small volume. MIC sound transmission, to adjust the sound volume size, please adjust the MIC side of the potentiometer
Transmitter main features:
- 5.8GHz video / audio synchronous transmission (compatible with PAL and NTSC)
- Compact structure, small volume, high emission power
- Integrated micro air cooling radiator, the heat is small, the work efficiency is high.
- Large-scale integrated circuits, high reliability
- Working voltage DC 7V-15V
- 8 working channels, DIP switch option settings
- Built in frequency phase locked loop, low harmonic radiation, high reliability and stability
- Digital phase locked loop circuit, no temperature drift phenomenon
- Working current: 750mA
- Size: X 26mm x17mm 55mm
Working frequency:
CH1/CH5: 5705/5885MHz CH2/CH6: 5685/5905MHz
CH3/CH7: 5665/5925MH CH4/CH8:5645/5945MHz
Notes:
- The antenna must not being off, or will ruin the power module
- The receiver power supply plug is positive outside and negative inside.
Package included:
- 1 x A/V Transmitter
