5.8G 1W 16Channels For AHD Analog HD Video Signal Transmission Long Distance Launch Module Wireless Audio Video AV Transmitter

5.8G 1W 16Channels For AHD  Analog HD Video Signal Transmission Long Distance Launch Module Wireless Audio Video AV Transmitter

Description:
This is a great transmitter and a receiver for both video and audio;
It allows you to transmit video and audio to one location to another, it's good for home and office use;
Microwave anti-interference performance well;
This machine sound/video signal adopt the microwave transmission means with 5.8G frequency with few interference

Specification:
- Transmit Power: 1W
- Working Frequency: 5.8G
- Working Voltage: DC12V/1A
- Weight: 0.95kg
- Emission Distance: (open air and no interference) 1000~1500 m
- Working Band: 5.8G
- Signal Standards: AHD
- Receiving Mode: Manual receiver

Others:
1. Front Panel: 3 Plugs
- AHD: Yellow, the input port of video signal(Transmitter)/ output port of video signal(Receiver)
- AUDIO R: Red, the right sound channel audio intput(Transmitter)/ right sound channel audio output(Receiver)
- AUDIO L: White, the left sound channel audio intput(Transmitter)/ left sound channel audio output(Receiver)
2. Two Groups of Supported Frequency:
- The first group: CH1,5725MHz; CH2,5745MHz; CH3,5725MHz; CH4,5785MHz; CH5,5805MHz; CH6,5825MHz; CH7,5845MHz; CH8,5865MHz
- The Second Group: CH9,5645MHz; CH10,5665MHz; CH11,5685MHz; CH12,5705MHz; CH13,5885MHz; CH14,5905MHz; CH15,5925MHz; CH16,5945MHz
3. Note:
It is important to distinguish the one from another, because the Transmitter and  Receiver are the same in color, shape and size,
please notice the character that printed on the machine.

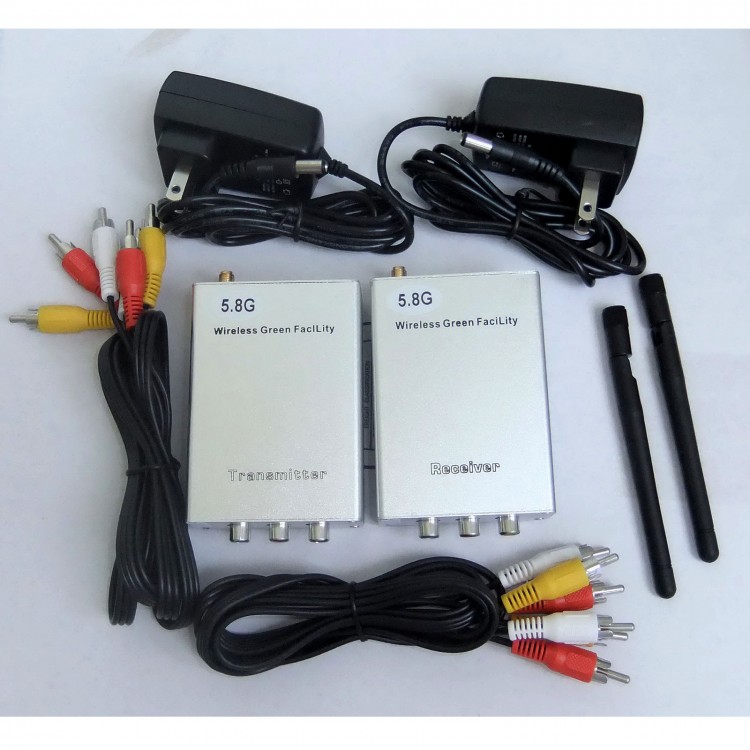

Packing List:
- 1x 16 Channels AV Wireless Receiver
- 1x 16 Channels Wireless AV Transmitter
- 1x AV Cable for Receiver
- 1x AV Cable for Transmitter
- 1x 5.8 G Antenna for Receiver
- 1x 5.8 G Antenna for Transmitter
- 1x AC/DC adapter for Receiver
- 1x AC/DC adapter for Transmitter
