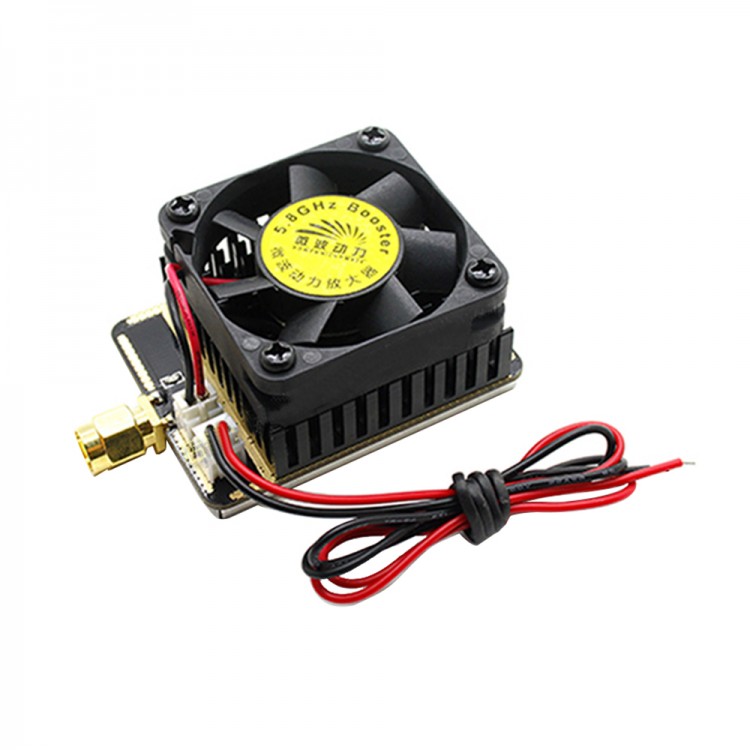

5.8G 3W 4.5W Image Transmission FPV Transmitter Signal Booster Amplifier for Multicopter - Black
Introduction:
The TXPA58002W5-5.8GHz Transmitter Signal Booster is a highly efficient and compact unit designed to increase the performance and range of the transmitter work in the 5.8GHz ISM band.Such as 5.8GHz wireless AV transmitter, baby monitor, wireless camera , wireless audio, wireless earphone. Using this product can be the wireless signal coverage increased to more than double in the visible range. Can enhance the signal to prevent interference. Can be used with all kinds of antenna.
Specifications:
- MAX input power 600mW/27.8dBm
- Frequency Band 5-6GHz
- Power Supply Voltage 12-16V
- Cooling mode active magnetic fan
- Lithium battery 3S 4S
- Power dissipation 20W
- Output connector type RP-SMA jack
- 3S 2200mAh 30 minutes
- Input connector type RP-SMA plug
- 4S 5200mAh 90 minutes
- MAX output power 2500 mW/+34dbm
- Temperature < 80 deg C
Quick Install Guide:
- STEP 1:Turn off the power supply of the Transmitter, take down the antenna of the Transmitter.
- STEP 2:The booster input port connection with the output port of the transmitter.
- STEP 3:Reconnect the antenna to the booster.
- STEP 4:Connect the power supply. Fan rotating means the booster to work.
Package included:
- 1 x Transmitter
