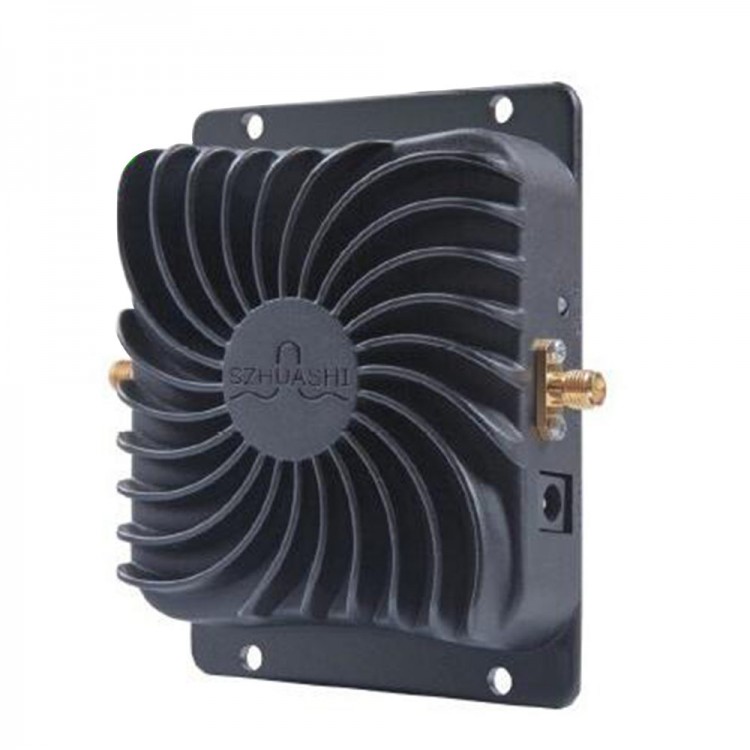

5.8G WLAN Signal Booster Power Amplifier WIFI Wireless Router 2W Extender

5.8G WLAN Signal Booster Power Amplifier WIFI Wireless Router 2W Extender

Specifications:
- WLAN Signal Booster/ Power Amplifier /WIFI Wireless Router
- Frequency range: 5.725G-5.85G
- Working voltage: 6-18V
- Receive gain: 14dB
- Transmit gain: 13dB
- Minimum input power: 3dBm
- Maximum input power: 20dBm
- EVM: 3%@25dBm 802.11a 54Mbps OFDM 64QAM BW 20M
- DC current :12V 575mA@25dBm
- Noise : < 3.5dB
- Switching time of TX/RX :  less than 1US
- LED light
- Ambient temperature: -40 degrees -+70
- Size: 103.5*96.55*30.5mm
- Weight: 0.4Kg

Installation steps
1, Remove the power of the router
2, Remove the router antenna
3, Use the standard of RG316 feeder line to connect signal amplifier and router
4, Supply power to the first signal amplifier , and then to the router

Note :
- RFIN terminal input power is recommended 7dBm-15dBm;
- Before the removal of the antenna, to ensure that the router and the signal amplifier power off
- If used for outdoor, please add waterproof and lightning protection equipment;
- Far away from the heat source to maintain ventilation
- Comply with the local electromagnetic radiation

Package List:
- 1 x 2.4G WLAN Signal Booster
- 1 x Power adapter
- 1 x Antenna
