Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $51.24 | $50.20 | $48.63 | $46.54 | Contact US |
5.8GHZ 1W 1000MW 8CH Wireless FPV Video Audio RC305 Receiver TS581000 Transmitter TX RX for Multicopter
Description:
1000MW transmitting module adopts wide dynamic 7-15V power supply (support 2-4S lithium battery), but the actual to camera considerations, the 3S battery or 12V regulated power supply module is necessary, comes with mic microphone, small volume. MIC sound transmission, to adjust the sound volume size, please adjust the MIC side of the potentiometer
Features:
- 8channels;DIP switch
- 5.8GHz video / audio synchronous transmission (compatible with PAL and NTSC)
- Compact structure, small volume, high emission power
- Integrated micro air cooling radiator, little heat, the work efficiency is high.
- Large-scale integrated circuits, high reliability
- Receiving sensitivity:-90dBm
- Frequency control:built - in frequency and phase lock loop
- Double lines AV output:analog AV signal output
- Antenna connector:SMA(Inside the needle)
- Power supply voltage: 7 - 15V (support 2-4S Lithium battery)0
- Operating current: 750mA
- Size: 55m x 26mm x 17mm
Working frequency:
CH1/CH5: 5705/5885MHz CH2/CH6: 5685/5905MHz
CH3/CH7: 5665/5925MH CH4/CH8:5645/5945MHz
Applications:
- Rc Hobbies
- Remote control aircraft
- Remote spacecraft
- Remote control toys
Note:
- The transmitting antenna must not being removed or will ruin the power module.
- The receiver power plug cable is : positive outside and negative inside
Package includes:

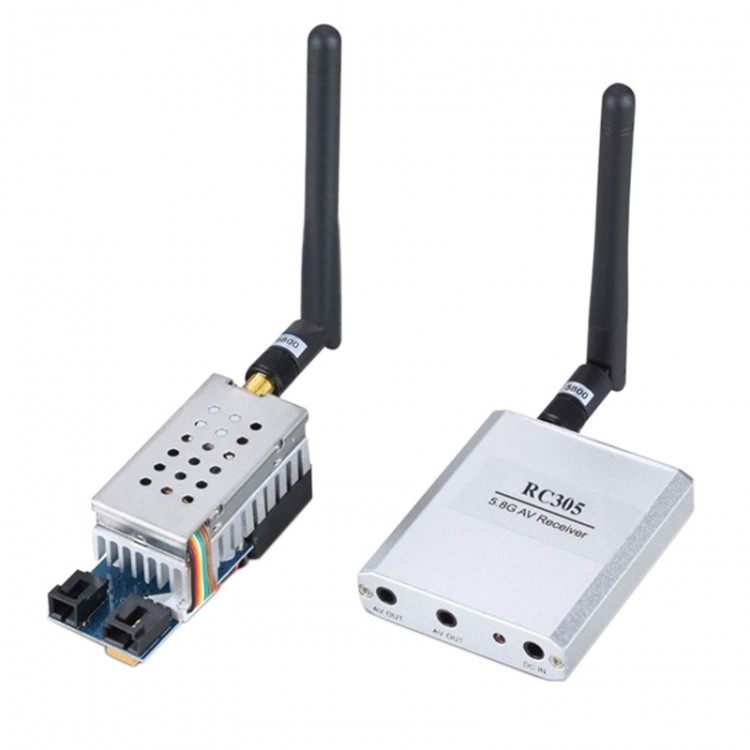

- 1 x Receiver RC305+TS581000 transmitter
- Antenna
- Manual
- Cables
