Product Description:
- This package is a great plug-and-play solution to your FPV needs.No soldering is required at all,and the monitor features audio,a built in battery and charges VIA usb.The system is lightweight,powerful,easy to install and provides a clear image in daylight or night.

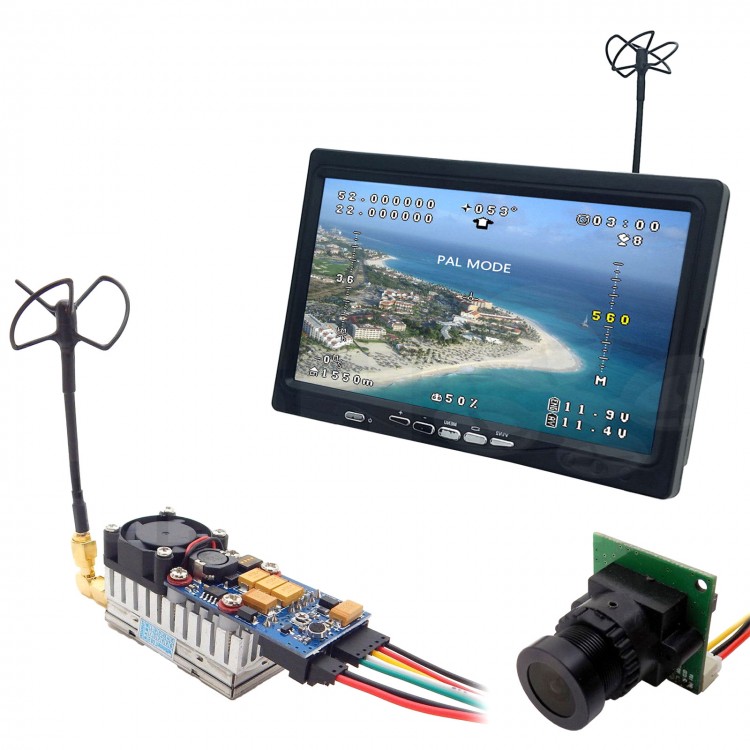

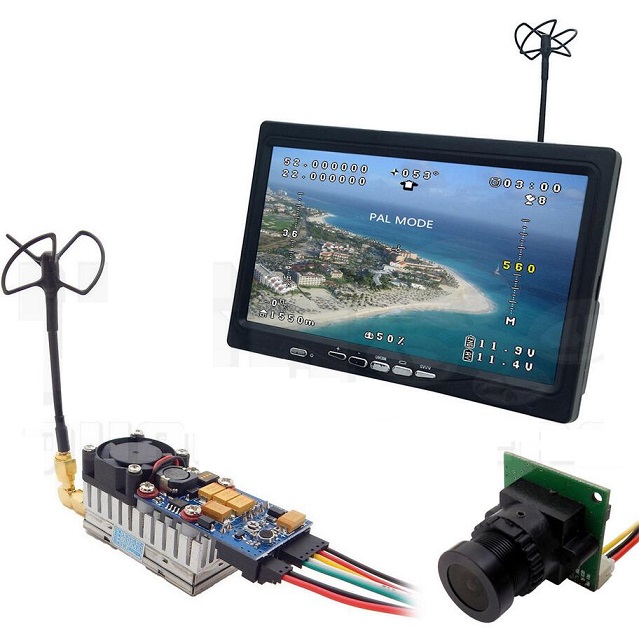

- The package includes a 1000mw 5.8GHz video transmitter,lightweight and small HD camera,a set of cloverleaf antennas and a 7" LCD monitor with built-in 5.8GHz receiver.Simplify your setup with our plug-n-play FPV solution that can be installed in a matter of minutes without soldering or complicated wiring.
Video Transmitter Specifications:
- Output impedance: 50ohm
- Output Power: 33dBm (typical)
- Frequency control: built-in frequency and phase lock loop
- Double lines AV output: analog AV signal output
- Antenna connector: SMA (Inside the needle)
- Power supply voltage: 7-15V
- Supply current: 800mA @12V
- Video bandwidth: 0~8.0MHz
- Audio frequency: 6.5MHz
- Video input level: 0.8~1.2Vp-p
- Video input impedance: 75ohm
- Audio input level: 0.5~2.0Vp-p
- Audio input impedance: 10K / Ohm
- Item size: 7.7x2.7x3.0cm/3.1x1.1x1.2in
- Weight:52g/1.8oz

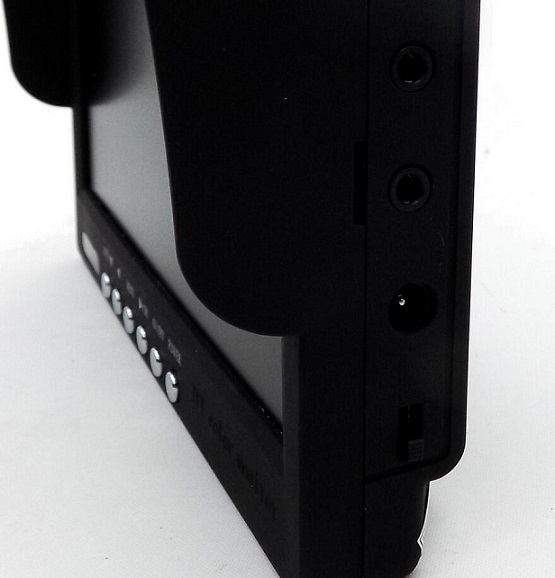

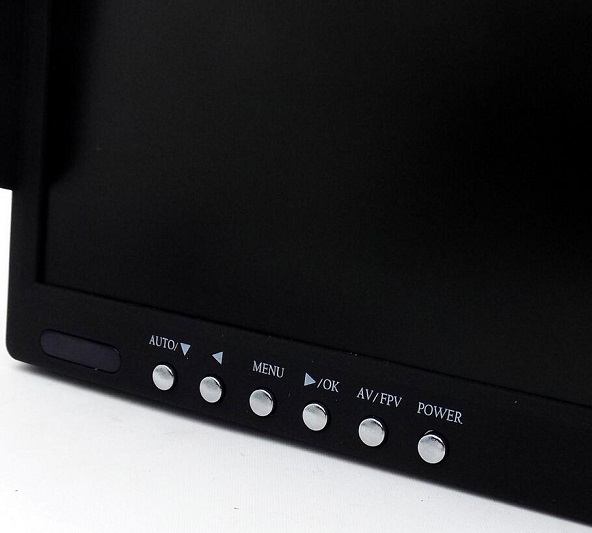

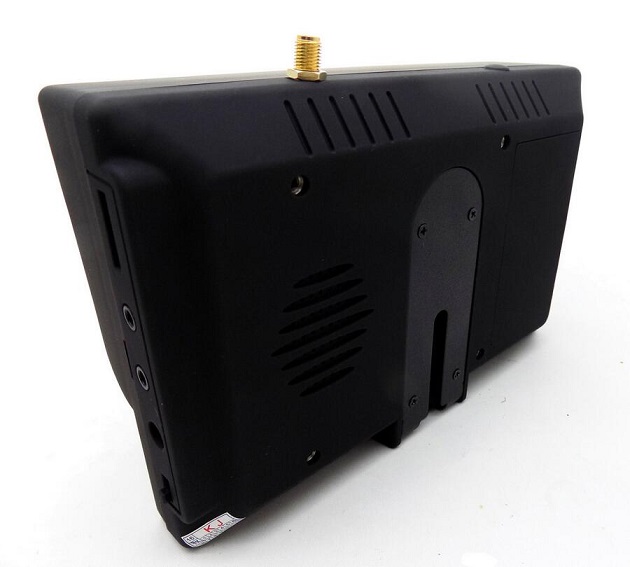

FPV Monitor Specifications:
- Screen Size: 150mm x 90mm

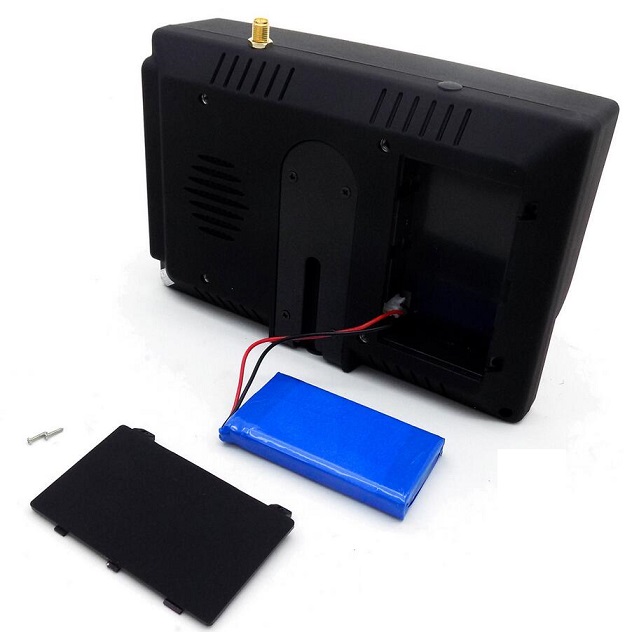

- Battery Capacity: 4960mah
- Receiver Channels: (See Below)
- Weight (Monitor): 288g
- Battery Life: 2 hours
- Antenna Connector: SMA Female
Package List:

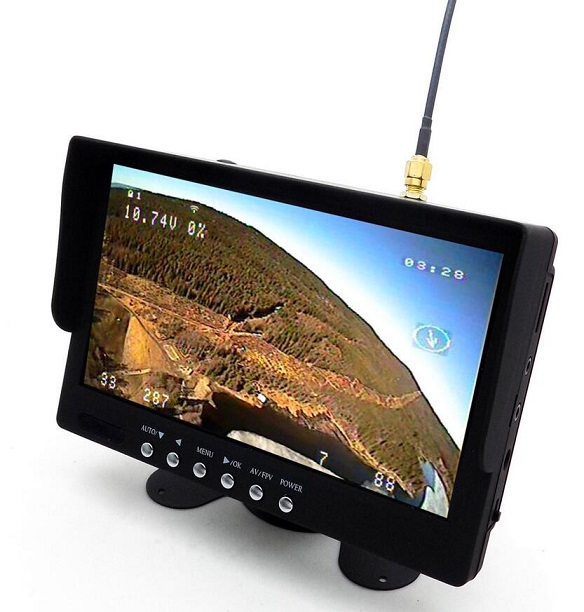

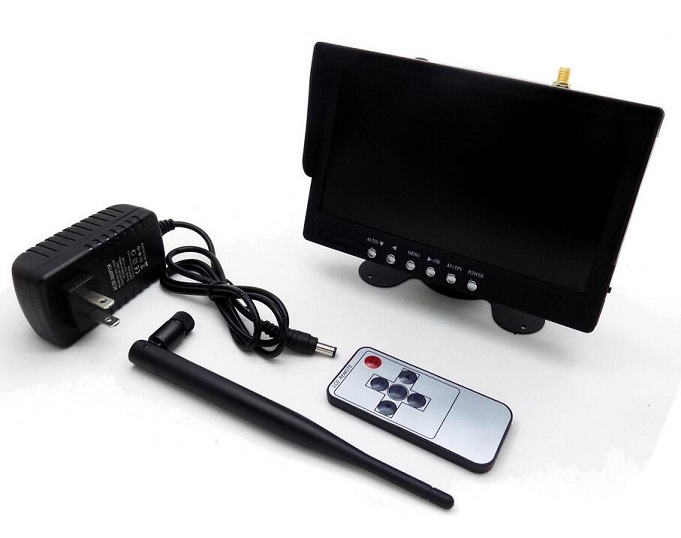

- 1 x LCD 7" FPV Monitor

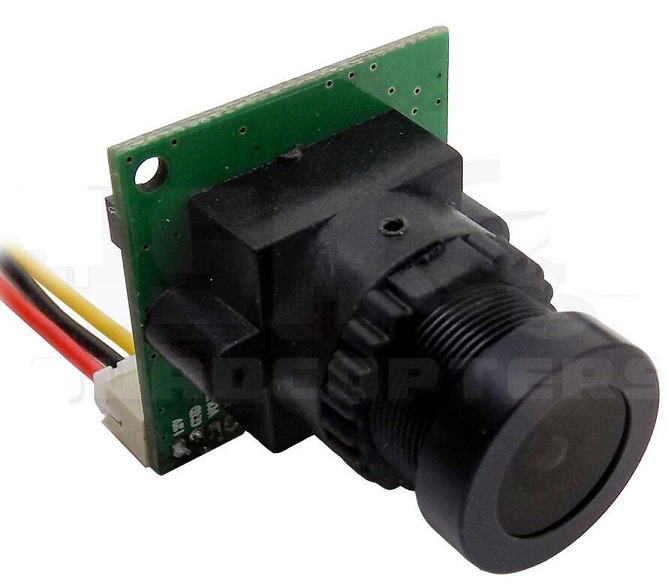

- 1 x HD NTSC Camera
- 1 x TS581000 Video Transmitter

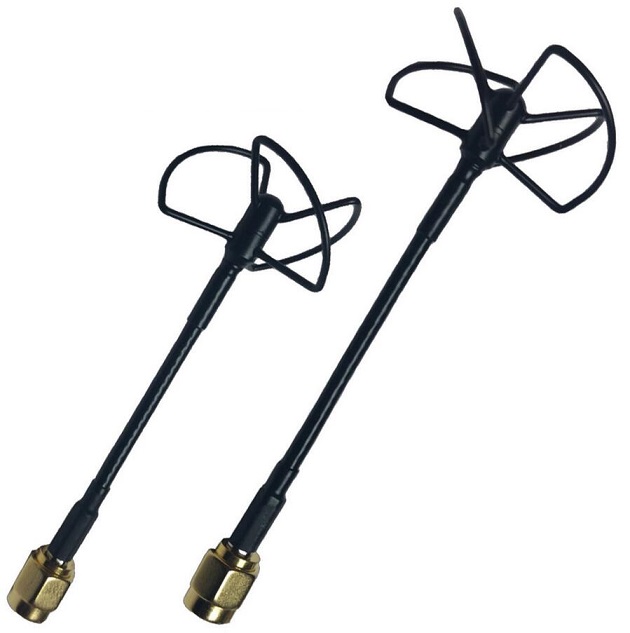

- 1 x Clover Antennas
- 1 x 90 Degree Antenna Brackets
