5 Axis MACH3 CNC Breakout Board 1000KHz USB CNC Motion Control Card Engraving Machine
Product Details:
- USB interface; use MACH3 software; 5 axis linkage; maximum output 100KHZ per axle; with inverter interface; with hand wheel interface; strong anti-interference ability.
- Supports various versions of MACH3 software, support the latest version.
- Supports Windows XP, WIN7, WIN8, WIN10, support 64 bit system, support laptop, support Tablet PC.
- Peripheral wide voltage input, 12-24V, and anti reverse function.
- All input signals can be connected by optical coupling isolation, emergency stop, knife, limit, back to zero, to protect computer security.
- One way through the opt coupler isolation 0-10V analog voltage output, can control the 0-10V analog voltage input frequency converter, control spindle speed.
- Provide PWM output (5V level), and can be connected to spindle speed governor controlled by PWM.
- Provide 4 output ports (5V level), which can be connected to the relay module with optical coupler, and control water cooling, spray and so on.
- Can be connected with common anode or common cathode, input level is 5V, with opt coupler input stepper motor driver.
- At the same time, provide 5 axis interface wiring outlet (XH2.54), convenient connection.
- Provide an electronic hand wheel interface.
- Easy to control and operate with a jog handler
Specifications:
- Model: USB MACH 3
- Current: DC
- G.W.: 0.3 kg

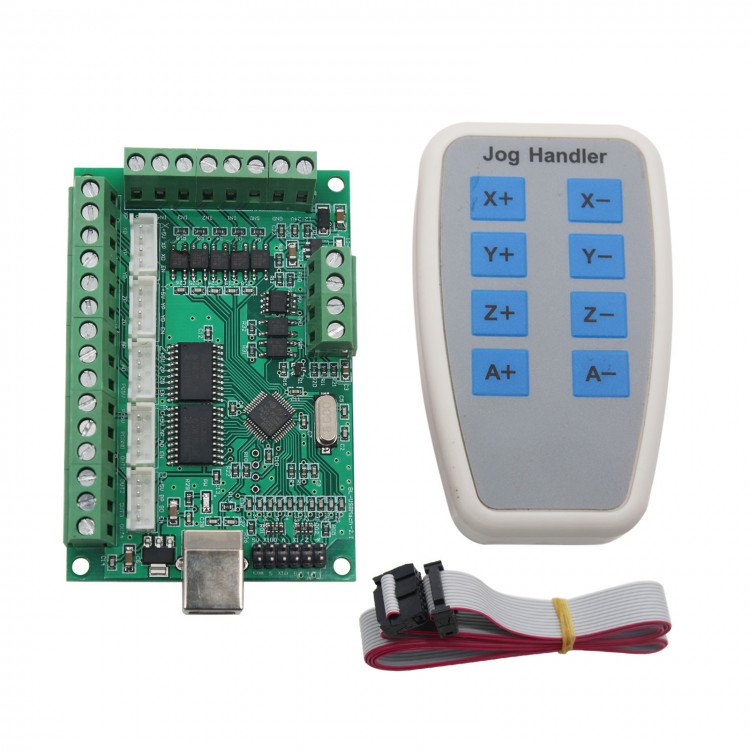

Package Included:
- 1 x MACH 3 CNC Breakout Board
- 1 x Jog Handler
