5-Channel Stereo Microphone Mixer with Earphone Monitoring B895

5-Channel Stereo Microphone Mixer with Earphone Monitoring B895

Product Details:
The B895 is a mini five-channel stereo mixer designed for audio and video applications with independent volume control and earphone/line output.

The product has one XLR input, one 1/8 input and three groups stereo RCA inputs. It has enough gain and output level to connect to the power amplifier with RCA or 1 / 8 Jack. 12VDC adapter power supply. Channel 1 has a microphone XLR input with a switchable Phantom Power supply. Channel 2 has 1/8 and RCA input. Channel 3 and channel 4 have RCA jacks. The product can also output 1/8 headset output, can drive up to 600 ohms headphone, with a full frequency response.

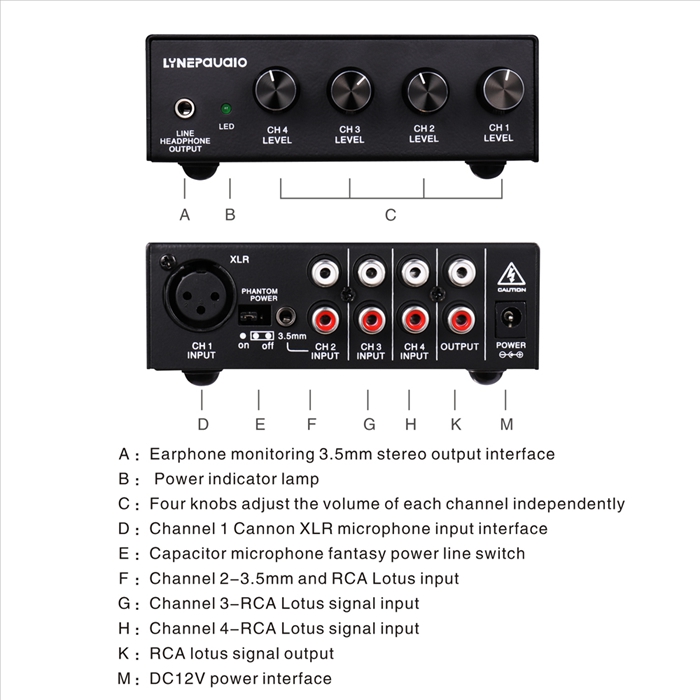

DC PWR: used to connect a DC12V power supply.
OUT: stereo RCA jack for connecting mixers or amplifiers.
CH 4 and CH 3 INPUT: stereo RCA jack for connecting signal sources such as CD player, tape deck, tuner, computer, mobile phone, tablet, etc.
CH 2 input: stereo RCA and a 1/8 jack (parallel) are used to connect signal sources, such as those mentioned in CH 3 and CH 4, or to wireless microphones or musical instruments.
CH 1 INPUT: XLR Jack used to connect the microphone. A switchable jumper power source marked on the unit. Line/headphone output: 1/8 stereo jack for connecting sound console, amplifier, or stereo headset.
CH 1-4 LEVEL: adjust the volume of each channel.

Features:
- For mixed microphone XLR input and up to three RCA input signals
- Input impedance: 10K ohms per jack
- CH 1 gain: 32dB XLR jack (maximum gain)
- Phantom power: for CH 1 microphone XLR
- CH2 gain: 26dB 1 / 8 "and RCA
- CH 3 and CH 4 gain: each RCA--26dB
- Output: 1/8 "stereo and stereo RCA
- Signal-noise ratio: > 90dB
- THD：<. 008％
- IMD（SMPTE）：<. 008％
- Power supply: 12 VDC adapter
- Product net weight: 0.36 kg
- Product weight after packing: 0.53g
- Product size: length 120mm X width 70mm X height 38mm
- Packing size: Length 200mm X width 180mm X Height 55mm

Package Included:
- 1 x Stereo Microphone Mixer

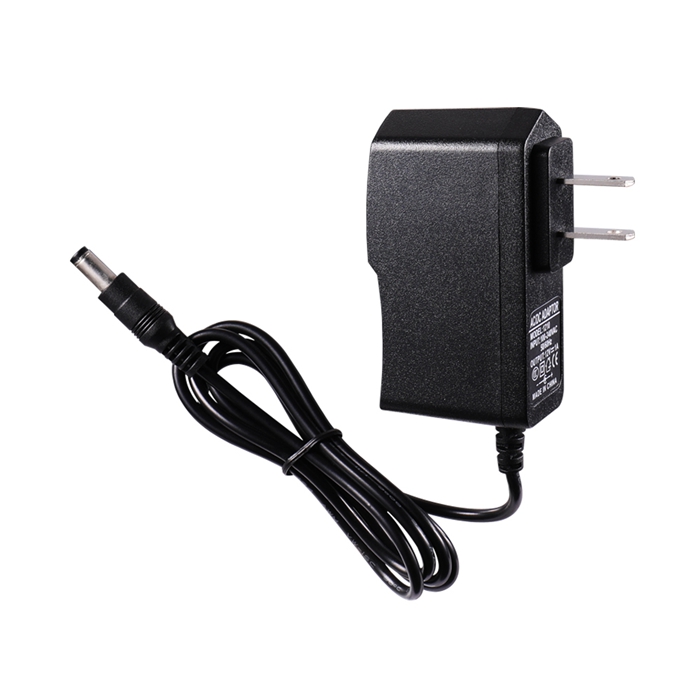

- 1 x DC12V Power supply-US standard plug (line length 100CM)
