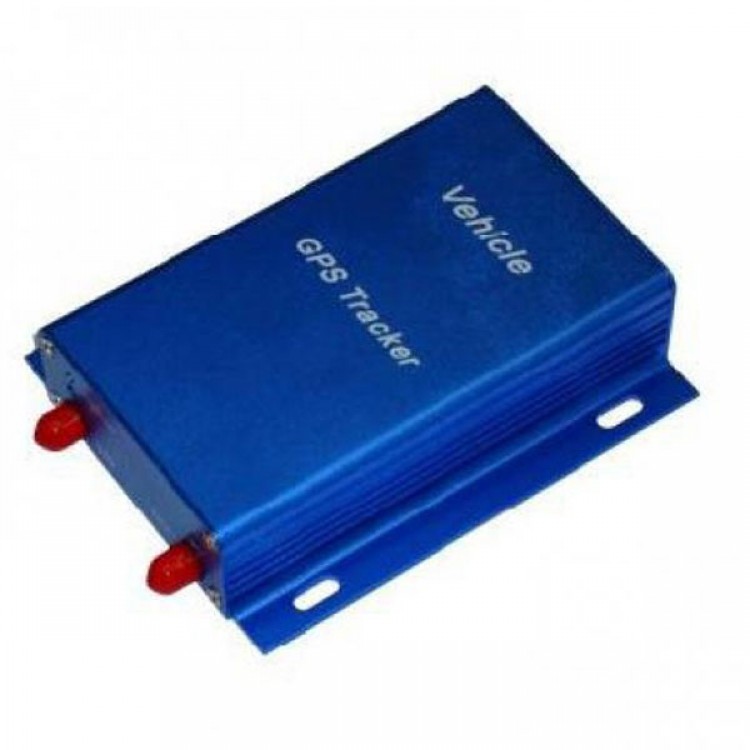

5 Digital Input & Output Port Vehicle Gps Tracker GSM 4 Bands VT310

Availability: Out Of Stock

  • Price:$97.17
  • Price in reward points: 972 Reward Points: 10
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $95.23 $93.28 $90.37 $86.48 Contact US
Quantity:

5 Digital Input & Output Port Vehicle Gps Tracker GSM 4 Bands VT310
Description:
- Vehicle Gps Tracker
- 5 Digital input & output port
- Compatible with original car alarm
- Built-in 8Mb memory data logge
- Tracking via SMS or GPRS (TCP/UDP)
- Current location report
- Tracking by time interval
- Position logging capacity up to 260,000+ waypoints
- Built-in motion sensor for power saving
- SOS panic button
- Geo-fencing control
- Low battery alert
- Speeding alert
- Engine Cut
- Wiretapping (optional)
- Alert when VT310 enters/exits GPS blind area
- Alert when VT310 is turned on
- I/O: 5 digital inputs, 3 negative and 2 positive triggering; 5 outputs.
- Analog Input: 2 10 bits resolution analog inputs

Specfication:

Power Supply

+9V - +35V / 1.5A

Backup Battery

850mAh

Dimension

104mm x 62mm x 24mm

Installation Dimension

104mm x 83mm x 24mm

Weight

150g

Operating temperature

-20° to 55° C

Humidity

5% to 95% Non-condensing

Frequency

GSM 900/1800/1900Mhz or GSM 850/900/1800/1900Mhz

GPS Module

latest GPS SIRF-Star III chipset

GPS Sensitivity

-158Db

GPS Frequency

L1, 1575.42 MHz

C/A Code

1.023 MHz chip rate

Channels

20 channel all-in-view tracking

Position Accuracy

10 meters, 2D RMS

Velocity Accuracy

0.1 m/s

Time Accuracy

1 us synchronized to GPS time

Default datum

WGS-84

Reacquisition

0.1 sec., average

Hot start

1 sec., average

Warm start

38 sec., average

Cold start

42 sec., average

Altitude Limit

18,000 meters (60,000 feet) max.

Velocity Limit

515 meters/second (1000 knots) max.

LED

2 LED lights to show GPS/GSM working status.

Flash Memory

8MB

Interface

5 digital inputs, 3 negative and 2 positive triggering; 2 analog inputs;

5 outputs.
