500KHz-2000KHz Donut AM Antenna + 4MHz-24MHz Donut SW Antenna for Malachite Malahit Receivers
Description:

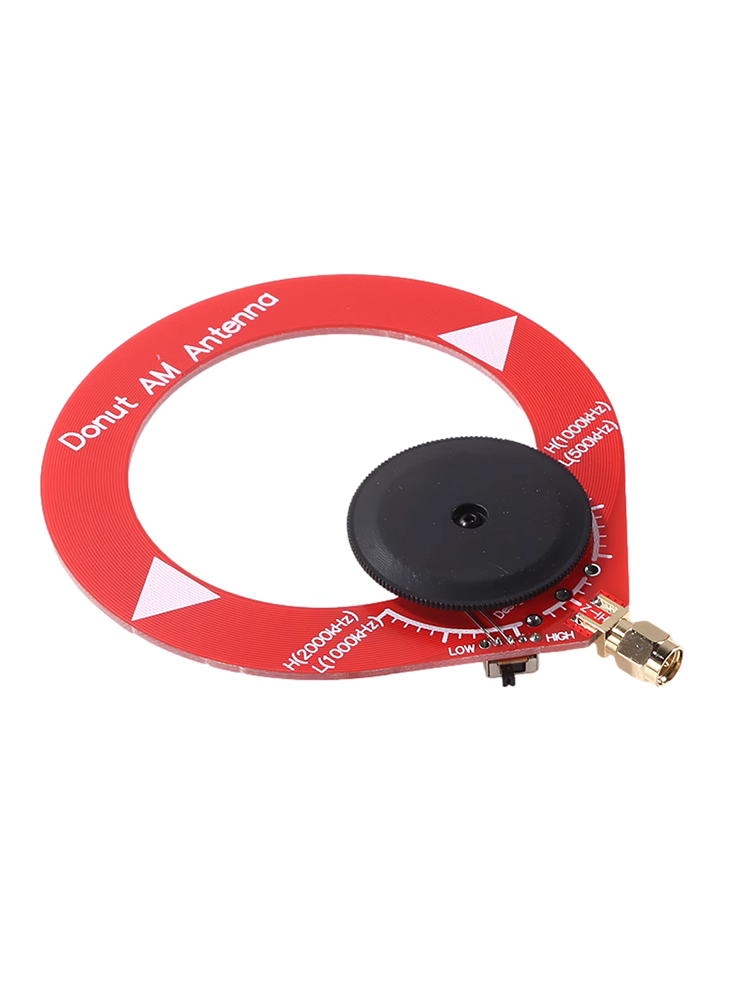

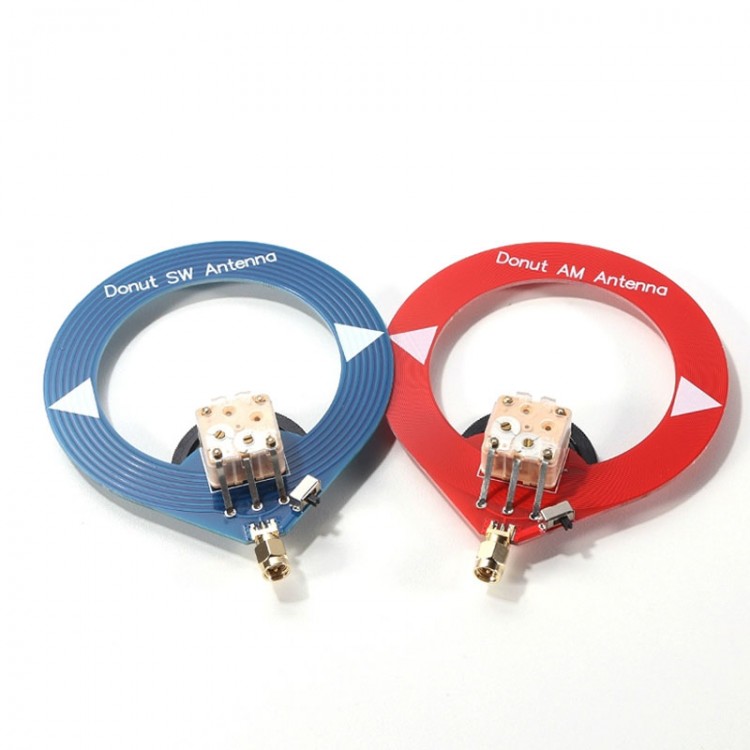

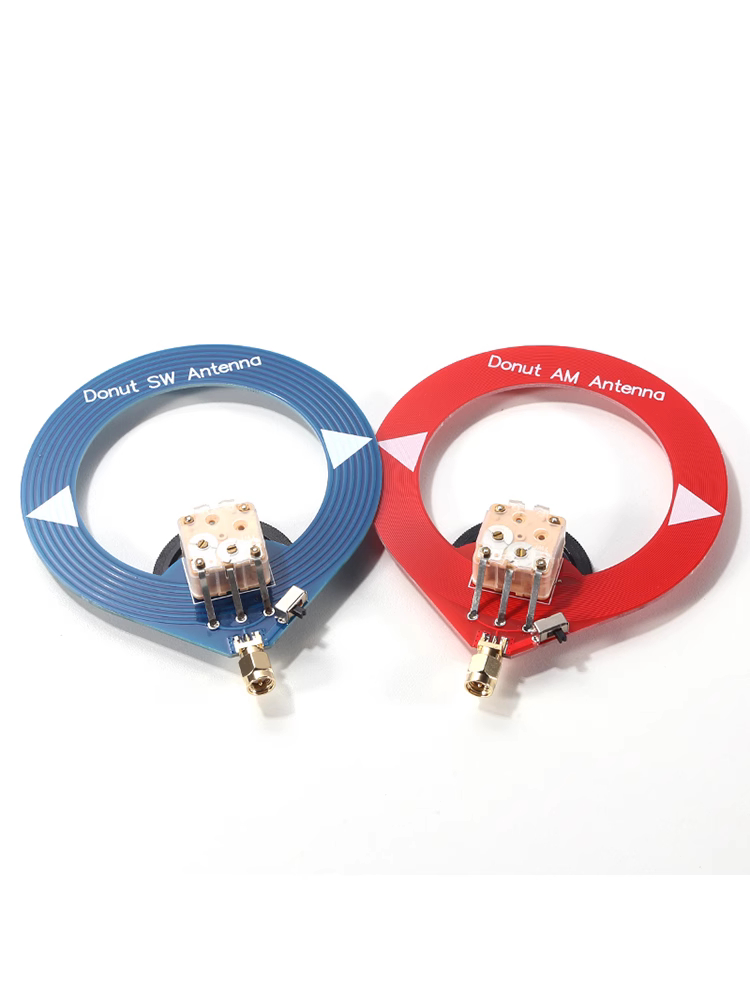

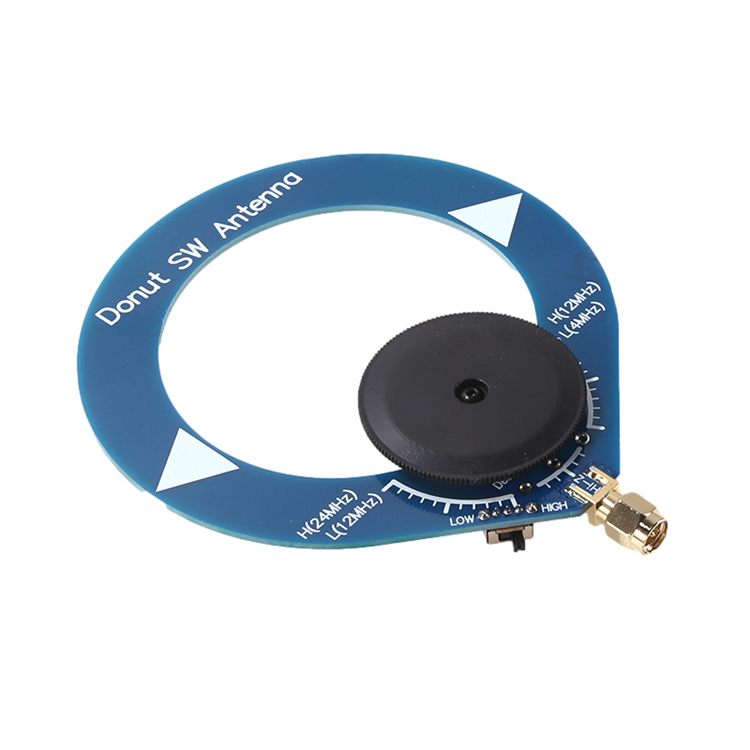

The frequencies of red AM antenna and blue SW antenna are 500KHz-2000KHz and 4MHz-24MHz, respectively.

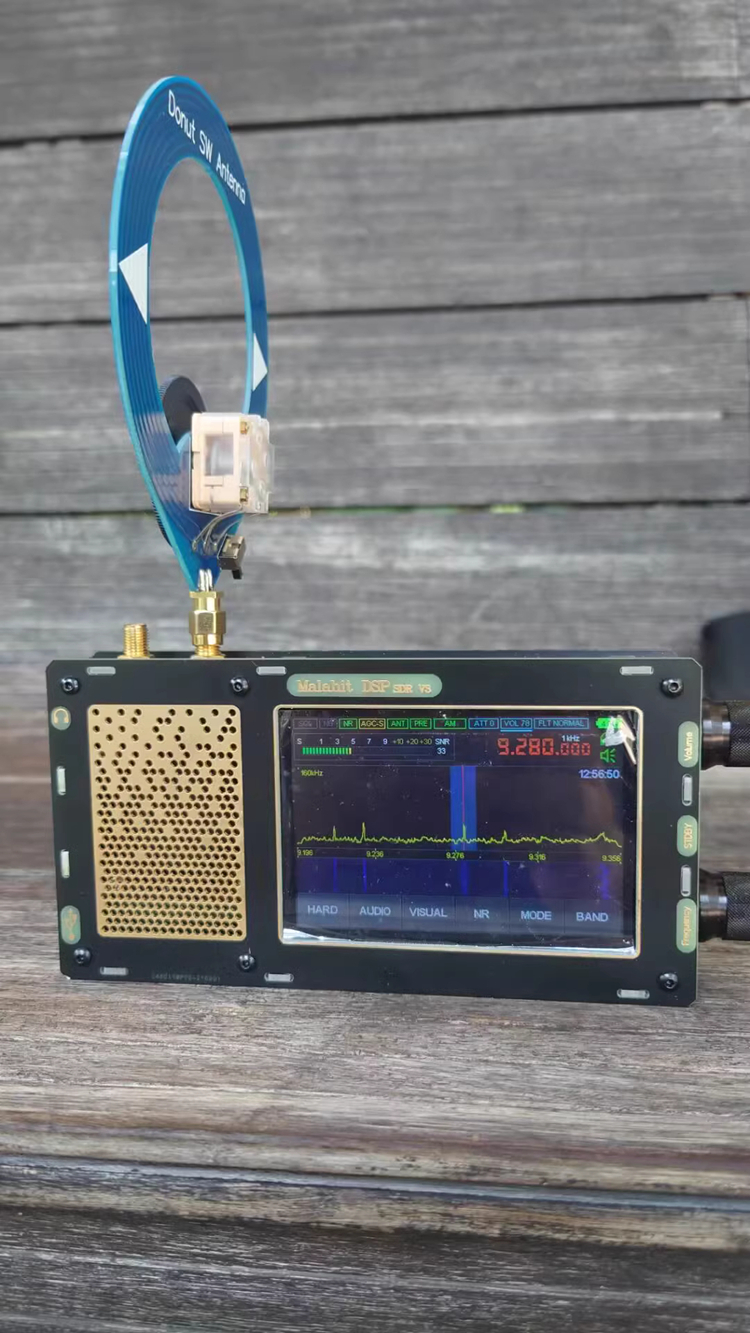

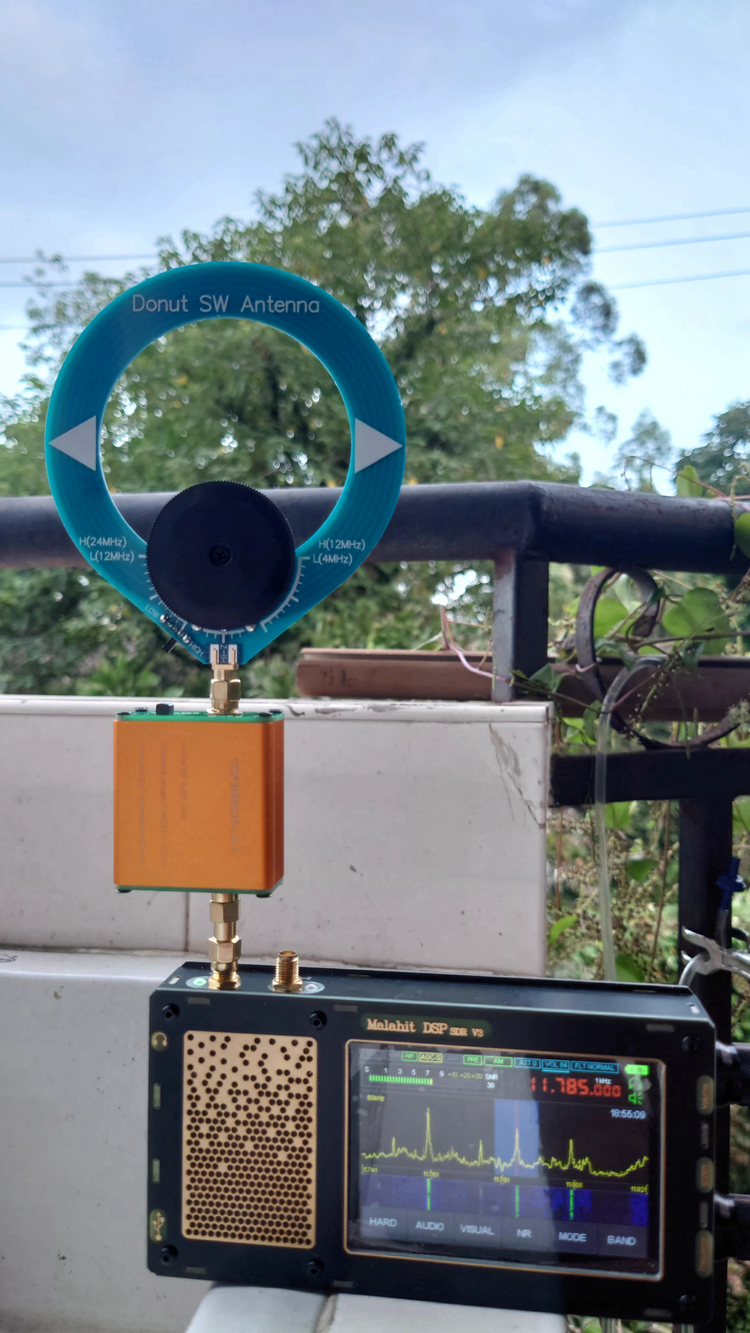

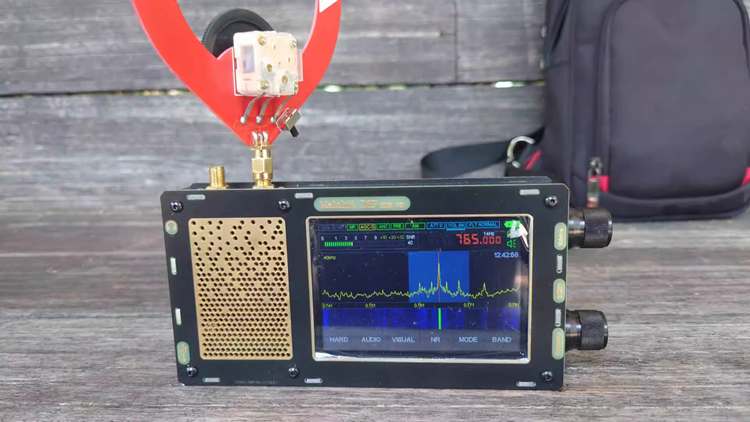

The loop antennas are narrow-band, high-impedance resonant antennas (Hi-Z). Therefore, when connected to a malachite receiver, the antennas should be connected to the high-impedance antenna input (Hi-Z) of the malachite. Please ensure correct connection because wrong connection will cause the impedance of the antennas to mismatch, and it will cause the antennas to be detuned and not working.
Compact size makes it easy to carry. The antennas use the tuning of variable capacitor to improve signal reception. Thus, the antennas are ideal for malachite receivers.
Specifications:
- Frequency range of red AM (MW) antenna: 500kHz-2000kHz
- Frequency range of blue SW antenna: 4MHz-24MHz
- Interface: SMA connector with pin
Package Included:
- 1 x Donut AM antenna
- 1 x Donut SW antenna
Note:
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
