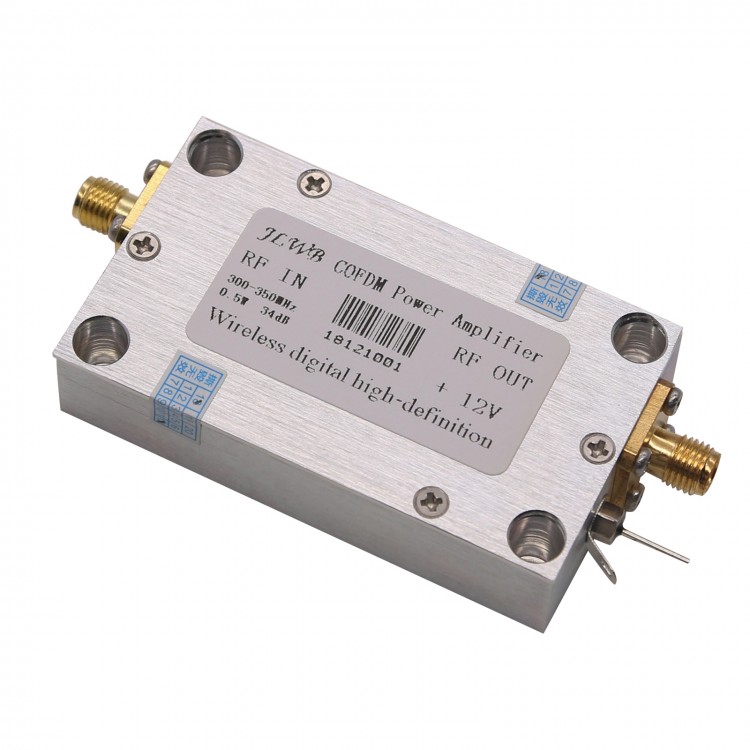

500mw Power Amplifier 300-550MHz 0.5W for DVB-T COFDM Digital Wireless Transmission Telemetry

Availability: In stock, usually dispatched in 1 business day

  • Price:$185.90
  • Price in reward points: 1859 Reward Points: 19
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $182.18 $178.46 $172.89 $165.45 Contact US
Quantity:

500mw Power Amplifier 300-550MHz 0.5W for DVB-T COFDM Digital Wireless Transmission Telemetry


Specification:
- Rate range: 300~550 MHz continuous 50MHz
- Gain: 27 + 0.5 dB
- Input power: 0 + 1 dBm
- Output power: 27 + 0.5 dBm COFDM
- The spectrum from the shoulder: less than or equal to -30 dBc
- Power supply voltage: DC +12 V
- Working current: 300 + 50 mA
- Temperature range: - 40 ~ + 65 C
- Module weight: 60 g
- Module size: 62 * 36 * 14 mm without connectors
- Radio frequency joint: SMA-K
- Impedance: 50 ohm

Note: 300-550MHz series is available. Within the range, you can choose continuous 50MHz bandwidth.
