| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $88.82 | $87.00 | $84.29 | $80.66 | Contact US |
TCB-NC-S 12-24V Thermoelectric Cooler TEC Temperature Control Module Digital PID Controller RS232 Port with 10K NTC Probe
$93.72
TCB-NC-PT1000-4 Thermoelectric Cooler TEC Temperature Control Module Digital PID Controller RS485 Port Support PT1000 Probe
$130.25
TCB-NC-PT100-4 Thermoelectric Cooler TEC Temperature Control Module Digital PID Controller RS485 Port Support PT100 Probe
$130.25

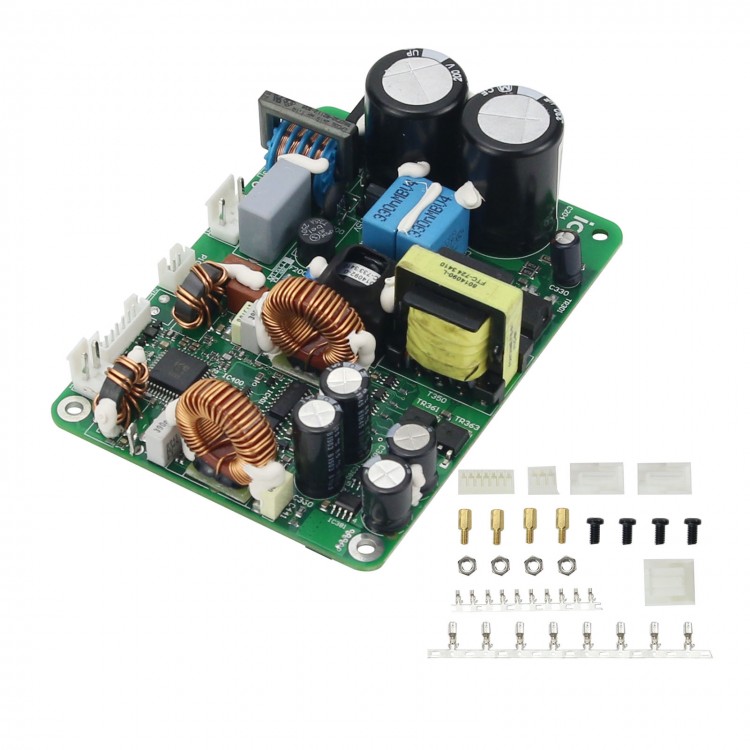

50ASX2 Digital Power Amplifier Module BTL Power Amplifier Board Amp Accessories For ICEPOWER
Key Performance Parameters:
- Output Power 1 % THD+N, 20 Hz – 20 kHz: 170W (4Ω)
- Output Power 10 % THD+N, 20 Hz – 20 kHz: 220W (4Ω)
- Minimum load impedance: 3Ω
- Maximum total amp+psu efficiency: 81%
- Supply voltage input (Selectable): 85-264VAC
- Peak output current: 20A
- Dynamic range: 125 dB
- Amplifier maximum output voltage per channel: 37V
- Output referenced idle noise (A-weighted): 20µV
- THD+N 1W/1kHz: 0.002%
Package Included:
- 1 x Power Amplifier Board
