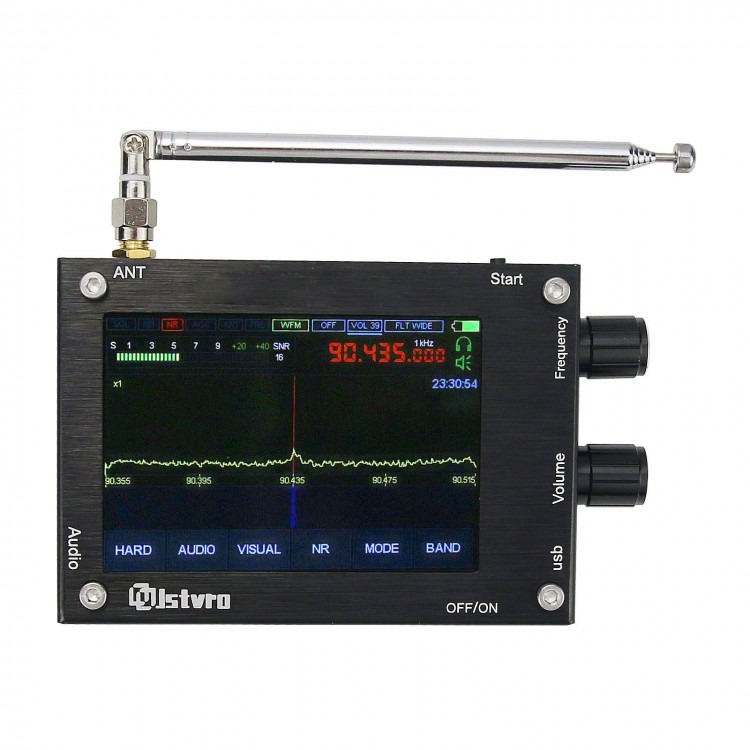

50KHz-2GHz 1.10C Malachite DSP SDR Receiver Malahit SDR Shortwave Radio With Aluminum Alloy Shell
Features:
- DSP SDR Receiver for Malahit
- 3.5-inch capacitive touch screen
- Flash via USB cable
- Default frequency range: 50KHz to 2GHz
- Demodulation mode: AM, SSB, NFM, WFM
Product Parameters:
1) The radio is built on the principle of SDR-the function is determined by loaded software;
2) Frequency range: 50KHz to 2GHz;
3) All types of analog modulation: AM, SSB, NFM, WFM;
4) Powerful functions: variable filter width, adaptive noise suppressor, threshold noise suppressor, for Noise Blanker, AGC, equalizer;
5) Use cheap but fully functional chip msi001;
6) The powerful stm32h743 with a clock frequency of 480 MHz is applied;
7) 3.5-inch IPS display touch screen;
8) Controls: 2pcs; encoders with buttons and touch screen;
9) It is powered by an external TYPE-C interface or battery (Built-in battery 3.7V 3800mA), which can be charged by TYPE-C.
10) Consumption: 300mA when listening to headphones;
11) The reception on built-in telescope or external antenna is to improve the HF reception on telescope antenna, and an additional board with source follower has been developed. The board will be built into standard receiver design.
12) Connect to computer via USB, which can transfer CAT, IQ and audio.
13) 160 kHz span, with scalability;
14) Sensitivity: Under the condition of up to 250MHz, s/w is 0.3μV = 10dB; due to lack of measurement equipment, so the above measurements were not taken;
15) Due to the characteristics of msi001 chip used, dynamic blocking range is about 85dB.
16) With backlight control;
17) SMA female antenna socket;
18) Motherboard size: 112 x 70mm (without the sizes of connectors).
Package Included:
- 1 x Set of SDR Receiver (with Aluminum Alloy Shell)
Note:
- We do not provide a registration code, but our current version is 1.10c.
- The motherboard can be powered by TYPE-C charger for Huawei mobile phone. It can be equipped with a long wire as an antenna for easy listening.
- Other items pictured are not included, for demonstration purposes only.

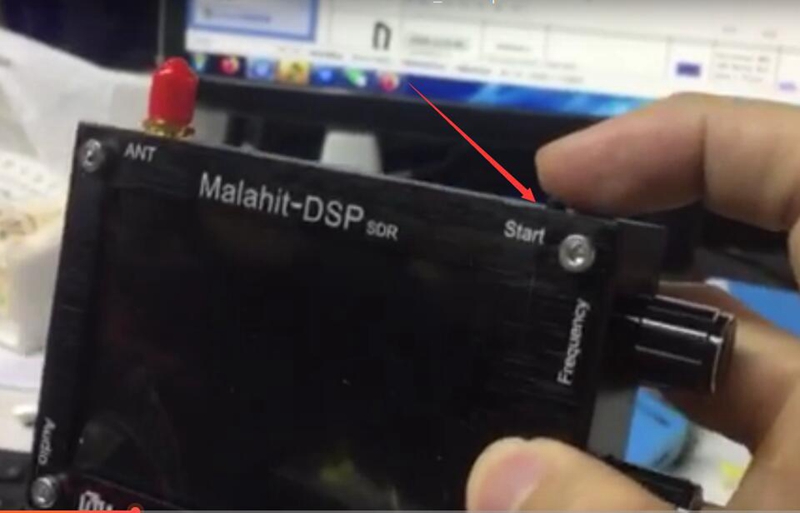

How To Turn ON/OFF?
Quickly press the top button three times to turn it on, and press it for the fourth time to turn it off. If it is failed to turn on, you need to wait for a few seconds, and then try again.
