50KHz-2GHz NanoVNA Vector Network Analyzer for MF HF VHF UHF Antenna 2.8" Touch Screen No Shell

50KHz-2GHz NanoVNA Vector Network Analyzer for MF HF VHF UHF Antenna 2.8" Touch Screen No Shell

Description:
We have redesigned its PCB board. Designed with simple but practical PC control software, you can export Touchstone (snp) files for various radio design and simulation software through PC software. Its improved frequency algorithm can support the measurement frequency of 50KHz-2GHz.

It is a DIY vector network analyzer. It features a 2.8-inch touch screen, 400mAh electricity for off-line application in 2 hours. If you want to prolong the testing time, you can connect it to an extra power bank, or contact us for larger capacity. As for testing via TX/RX, you can get full set of parameters of S11 and S21. What you have to do is to replace the connection cables in the receiving and transmitting ports.

Basic Parameters:
- PCB: 54mm x 85.5mm x 11mm (without the size of connectors, switches)
- Measurement Frequency: 50KHz-2GHz
- RF Output: -13dbm (maximum -9dbm)
- Frequency Accuracy: ＜0.5ppm
- Port SWR: < 1.1
- Display: 2.8 inch TFT (320 x 240)
- USB Interface: USB Type-C; Communications Mode: CDC (Serial)
- Power Supply: USB 5V 120mA, built-in 400mAh electricity, maximum charging current 0.8A
- Number of Calibration Points: 101 (Fixed)
- Number of Scanning Points: 101 (Fixed)
- Display Tracking: 4, Marking: 4, Save Setting : 5
- Measuring S parameters, voltage standing wave ratio, phase, delay, Smith chart and the like

Official Information Reference:
https://github.com/ttrftech/NanoVNA?tdsourcetag=s_pcqq_aiomsg

Package Included:

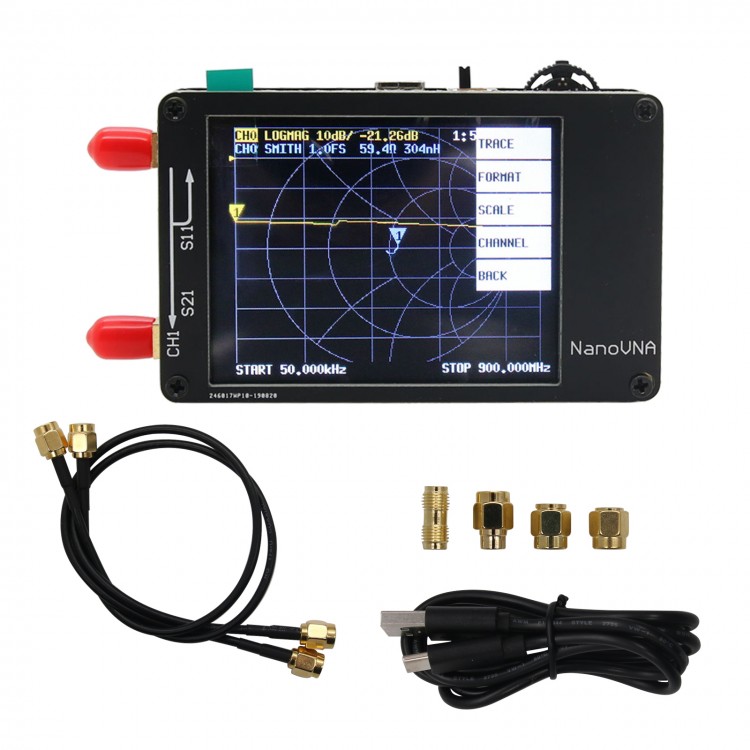

- 1 x NanoVNA Main Unit
- 1 x USB Type-C Data Cable
- 2 x 30cm SMA Male to Male RG174 RF Cables
- 1 x SMA Calibration Kit Male
- 1 x SMA Female to Female Connector

Download Operation Manual & Control Software for PC:
https://share.weiyun.com/5HFmWGl

Note: Please note that the analyzer comes without a shell.
