50KHz-900MHz NanoVNA Vector Network Analyzer HF VHF UHF Antenna Analyzer With 2.8" TFT Screen
Description:
NanoVNA is a compact hand-held Vector Network Analyzer. It is designed with 2.8-inch TFT display screen. As a practical RF gadget, it is a must piece for you.
Basic Parameters:
- PCB: 54mm x 85.5mm x 11mm (without connectors, switches)
- Measurement Frequency: 50KHz ~ 300MHz (50KHz -900MHz, enable extended firmware)
- RF Output: -13dbm (maximum -9dbm)
- Measurement Range: 70dB (50kHz-300MHz), 50dB (300M-600MHz), 40dB (600M-900MHz) enable extended firmware);
- Port SWR: < 1.1
- Display: 2.8 inch TFT (320 x240)
- USB Interface: USB type-C; Communications Mode: CDC (Serial)
- Power: USB 5V 120mA, built-in 400mAh, maximum charging current 1A
- Number of Calibration Points: 101 (Fixed)
- Number of Scanning Points: 101 (Fixed)
- Display Tracking: 4, Marking: 4, Setting Save: 5
- Measuring S parameters, voltage standing wave ratio, phase, delay, Smith chart and the like
Official Information Reference:
https://github.com/ttrftech/NanoVNA?tdsourcetag=s_pcqq_aiomsg

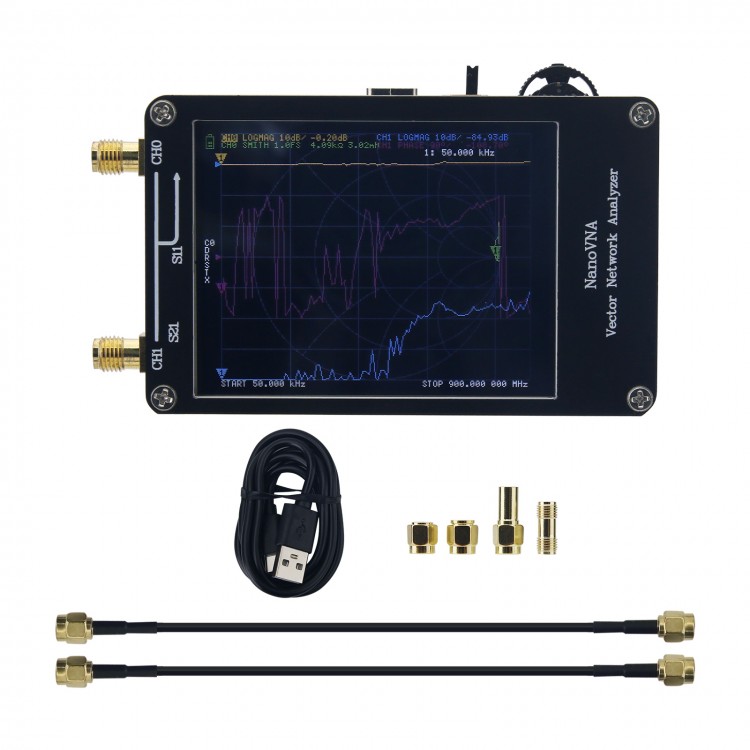

Package Included:
- 1 x NanoVNA Main Unit
- 2 x 30mm SMA Male to Male RG174 RF Cables(2x70mm SMA Male to Male RG174 RF Cables)
- SHORT, OPEN, LOAD, SMA Connectors
