50KHz-960MHz Handheld Spectrum Analyzer RF Spectrum Analyzer RF Explorer WSUB1G+
Description:
RF Explorer WSUB1G+ is a powerful, high performance digital spectrum analyzer, covering the range of 50KHz to 960MHz.
It is a very affordable solution replacing base model WSUB1G with additional features, capabilities and frequency coverage.
Features:
- Internal LNA amplifier and selectable attenuator
- Low frequency support from 50KHz to 960Mhz, covering LF, MF, HF, VHF and UHF
- New HELP and SET buttons to improve user interface and configuration selection with 2-clicks
- Ideal choice for HAM bands from 160m to 33cm
- Broadband covers all popular sub-1Ghz bands, including FM, TV and DTV, ISM, RFID, GSM
- Pocket size and light weight
- Solid aluminum metal case
- Spectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite and Averaging modes
- Rechargeable by USB
- Support for multi-platform Windows/Linux/MacOS Open Source software and API libraries
- Can be extended with internal Expansion Modules for additional band and functionality
Technical Parameters:
- Measured Frequency Range: 0.05-960MHz (50KHz-960MHz)
- Frequency Span: 0.1 – 960MHz
- Internal Selectable: LNA 25dB Gain
- Internal Selectable: Attenuator 30dB
- Screen: Graphics LCD 128x64 pixels, great visibility outdoors
- Amplitude Resolution: 0.5dBm
- Dynamic Range: -125dBm to 10dBm
- Absolute Max. Input Power: +30dBm
- Average Noise Level (Typical LNA): -125dBm
- Frequency Stability and Accuracy (Typical): ±10ppm
- Amplitude Stability and Accuracy (Typical): ±2dBm
- Frequency Resolution: 1KHz
- Resolution Bandwidth (RBW): Automatic 2.6Khz to 600Khz
- Supported Systems: Support for Windows, Linux and MacOS X
- N.W.: 543G

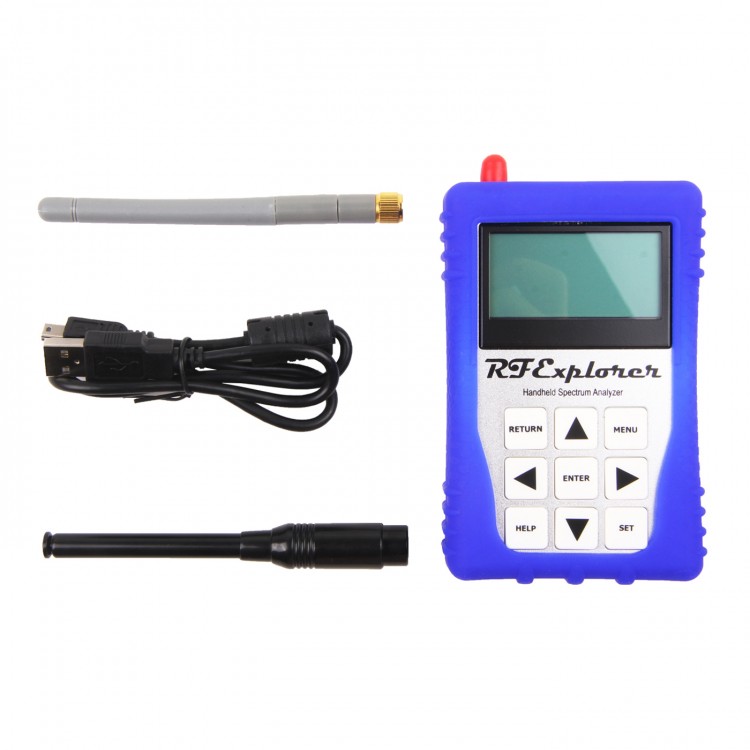

Package Included:
- 1 x Spectrum Analyzer
- 2 x Antennas
- 1 x Silicone Sheath
- 1 x EVA Shell
- 1 x Instructions
