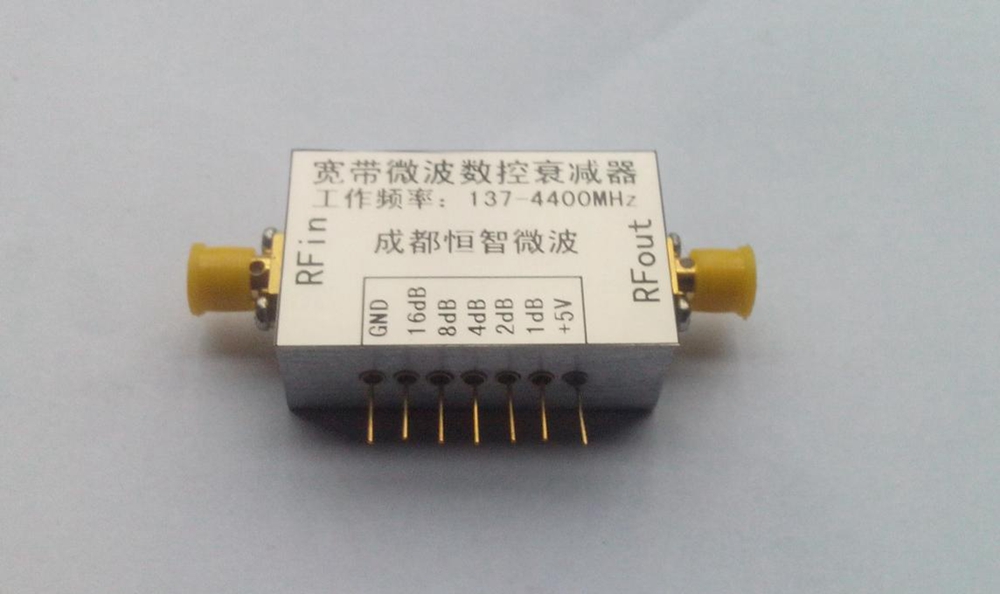

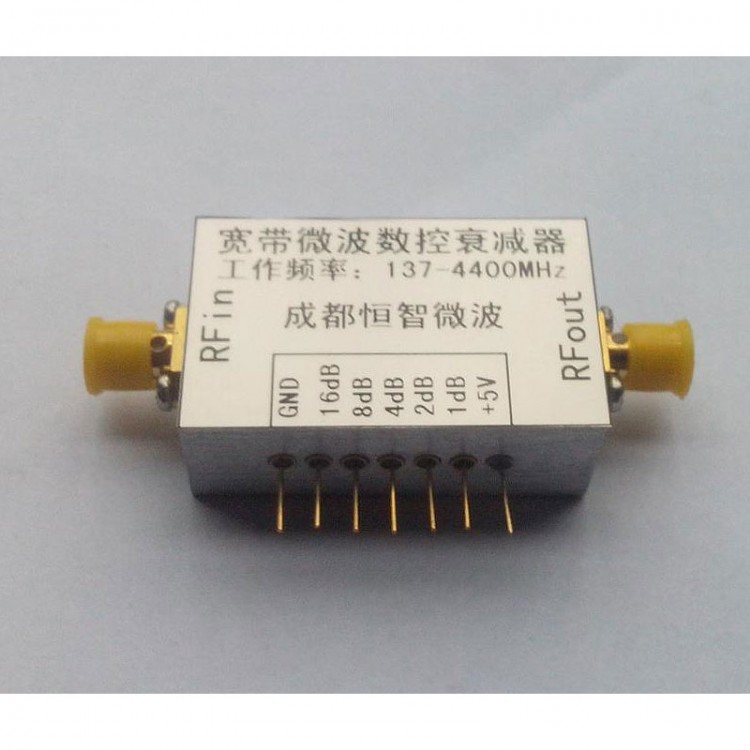

50MHz - 4400MHz RF Microwave Digital Control Attenuator High Precision Attenuation and Flat Curve RF Attenuator
Description:
- This product is mainly used in the fields where amplitude output control is required on RF and IF links. The programmable attenuator has the advantages of ultra wide frequency range, extremely low power consumption, high attenuation accuracy, small attenuation step, flat curve, etc.
- The control interface is equipped with pull-up resistance, which is high level when suspended, and the grounding of a pin represents the corresponding attenuation.
Specification:
- Working frequency: 50MHz - 4500MHz
- Insertion loss: < 1.5dB
- Maximum attenuation: 31dB
- Attenuation step: 1dB
- SWR: < 1.5
- Input and output impedance: 50ohm
- Controlled digit: 5 digits; that is the five lines 1, 2, 4, 8, 16 can be combined to form a 0-31dB attenuation range
- Attenuation precision: < 1dB
- Input maximum power: < 20dBm
- Input and output interface: SMA-K
- Power supply: +5V
- Controlling interface: glass beads, 7 needles in total
- Dimension: 40 x 25 x 14mm
Package Included:
- 1 x RF Attenuator
