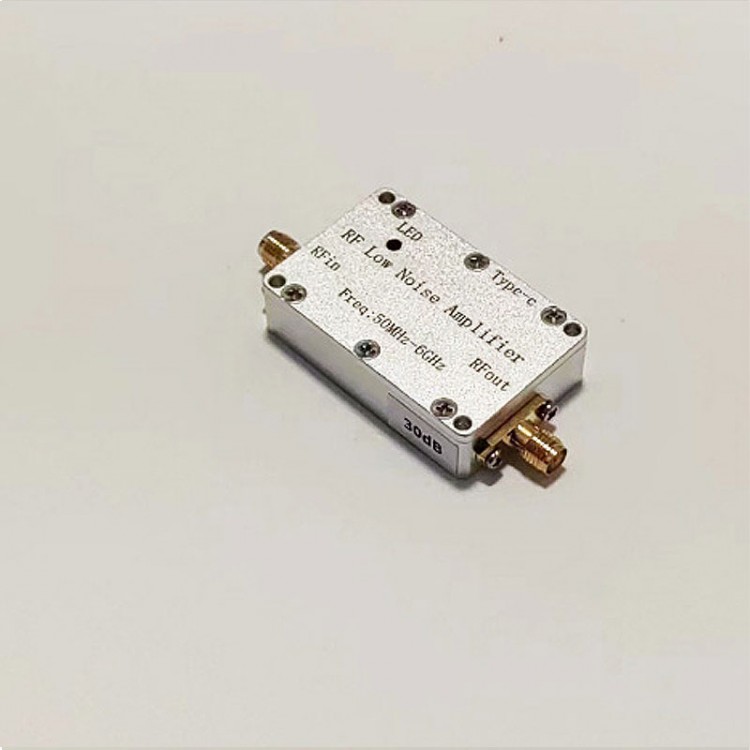

50MHz-6GHz 30dB RF LNA Low Noise Amplifier Small Signal Receiving Amplifier RF Accessory with SMA Female Connector
Description:
- The RF low-noise amplifier module is used for small signal reception amplification in 50M-6GHz receiver systems, covering the broadband range of P, VHF, UHF, S, L, and C. As a front-end microwave signal receiving module, it has the characteristics of high linear gain and low noise figure. The module adopts Type-C interface +5V power supply and has a power indicator light for operation.
Specification:
- Working voltage: +5V single power supply
- Power interface: Type-C
- Working current: 80mA
- Working frequency: 50MHz - 6GHz

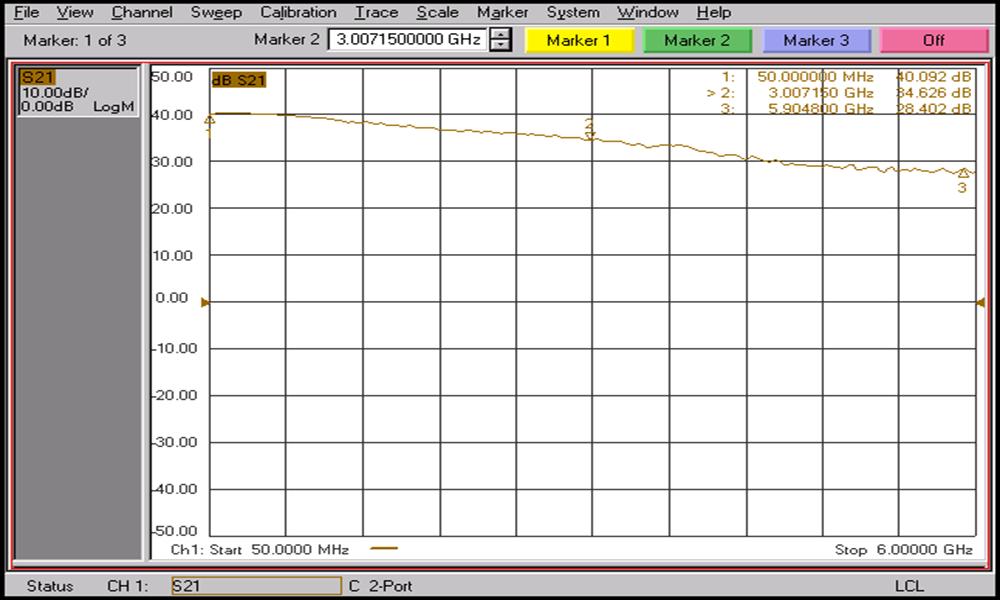

- Gain: 30dB typical value
- P1dB output power: +16dBm at 3GHz
- Noise ration: 2.4dB
- Input and output interface: SMA female connector

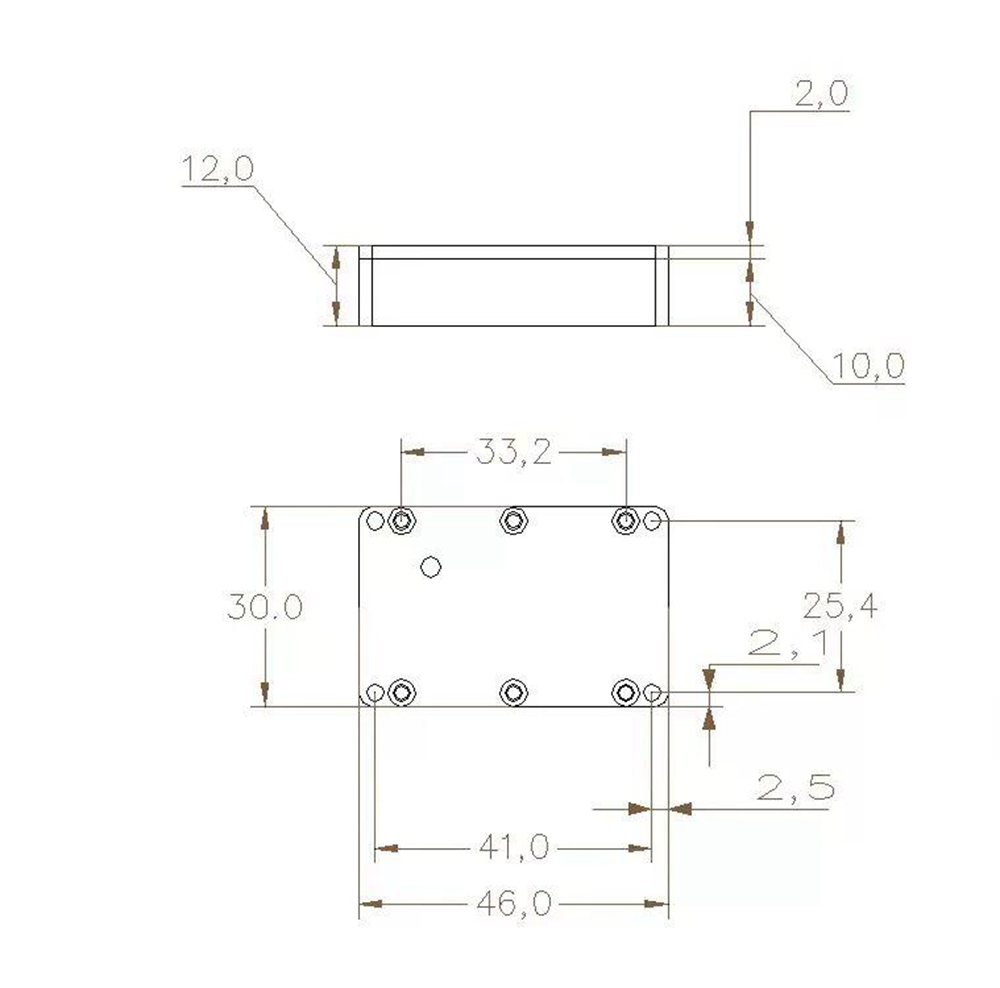

- Module size: 46 x 30 x 12mm (excluding the connector length)
Package Included:
- 1 x Low Noise Amplifier
- 1 x Type-C Cable
