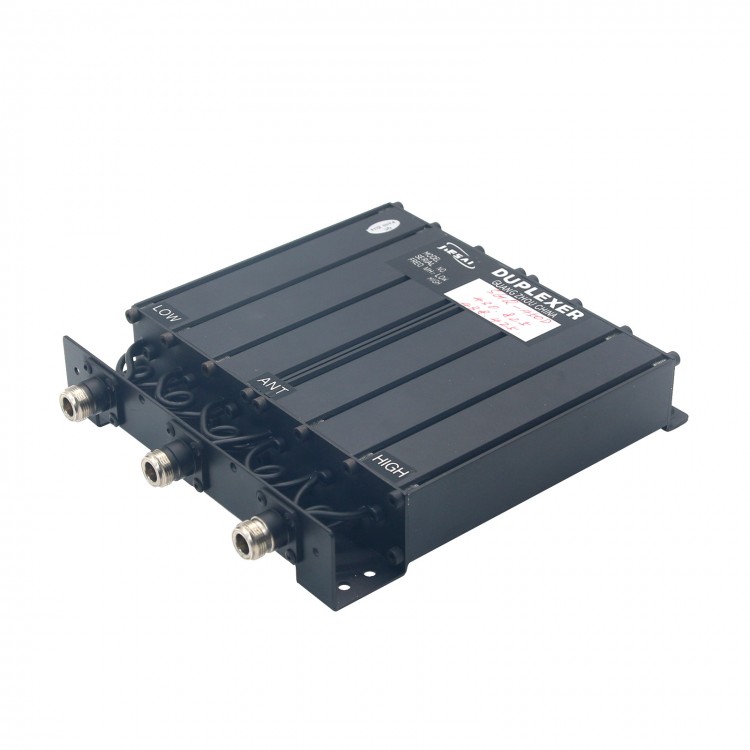

50W Duplexer 6 Cavity Duplexer Optional 137-180MHz 340-390MHz 380-520MHz for Ham Radio Communication

50W Duplexer 6 Cavity Duplexer Optional 137-180MHz 340-390MHz 380-520MHz for Ham Radio Communication

Specifications:
Type 1:
- Frequency Range: 380-520MHz
- VSWR: ≤ 1.35
- Bandwidth (KHz): ±100; ±400; ±100
- Frequency Spacing (MHz): > 5-7; > 7-12; > 12-20
- Insertion Loss: ≤ 1.5dB; ≤ 1.2dB; ≤ 1.5dB
- Isolation: ≥ 75dB
- Maximum Input Power: 50W
- Input Impedance: 50Ω
- Connector: N-F/BNC-F
- Operating Temperature: -20℃ to +50℃
- Weight: 1.6KG
- Dimensions: 225x190x40mm (±0.5mm)

Type 2:
- Frequency Range: 137-180MHz
- VSWR: ≤ 1.40
- Bandwidth (KHz): ±100; ±200; ±100
- Frequency Spacing (MHz): > 6-15; > 5-6; > 3.8-5
- Insertion Loss: ≤ 1.5dB; ≤ 1.2dB; ≤ 1.5dB
- Isolation: ≥ 75dB
- Maximum Input Power: 50W
- Input Impedance: 50Ω
- Connector: N-F/BNC-F
- Operating Temperature: -20℃ to +50℃
- Weight: 1.5KG
- Dimensions: 216x190x40mm (±0.5mm)

Type 3:
- Frequency Range: 340-390MHz
- VSWR: ≤ 1.35
- Bandwidth (KHz): ±100; ±400; ±100
- Frequency Spacing (MHz): ≥ 5-7; > 7-12; > 12-15
- Insertion Loss: ≤ 1.5dB; ≤ 1.2dB; ≤ 1.5dB
- Isolation: ≥ 75dB
- Maximum Input Power: 50W
- Input Impedance: 50Ω
- Connector: N-F/BNC-F
- Operating Temperature: -20℃ to +50℃
- Weight: 1.8KG
- Dimensions: 270x190x40mm (±0.5mm)

Package Included:
- 1 x Duplexer

Note:
- Please inform us the frequency range you want while purchasing. Thank you!
