| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $95.39 | $93.45 | $90.53 | $86.63 | Contact US |
50W Portable Shortwave Radio 2MHz-30MHz RF Power Amplifier with 4-level Low Pass Filter Support for ICOM/XIEGU Band Switch
Description:
- This shortwave power amplifier features automatic transmit/receive switching for more convenient operation during communication to ensure smooth transitions without manual intervention. Supports 4-band manual or external control band switching, compatible with multiple band switching protocols, providing versatility for different radio applications. Features a compact design with a power output of 40-55W at 13.8V, making it suitable for portable shortwave radio setups and field operations.
Features:

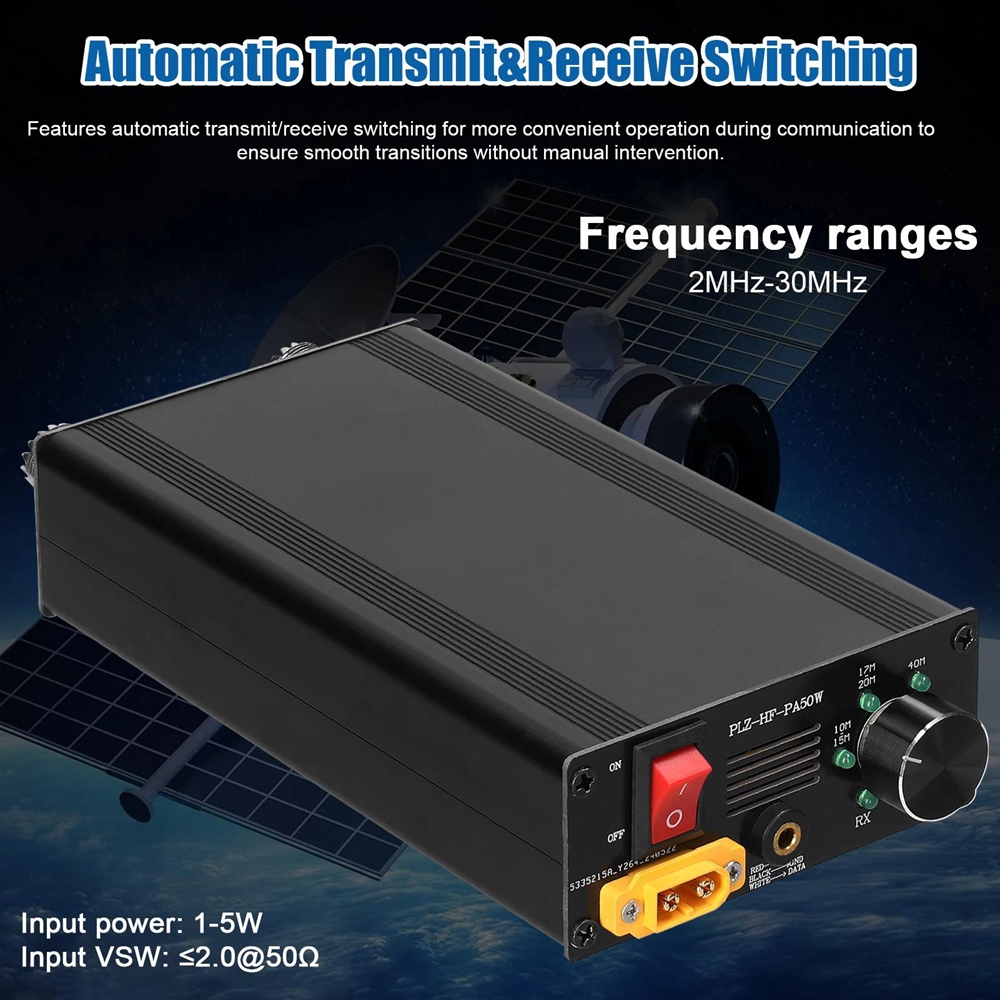

- Automatic Transmit & Receive Switching: Features automatic transmit/receive switching for more convenient operation during communication to ensure smooth transitions without manual intervention.

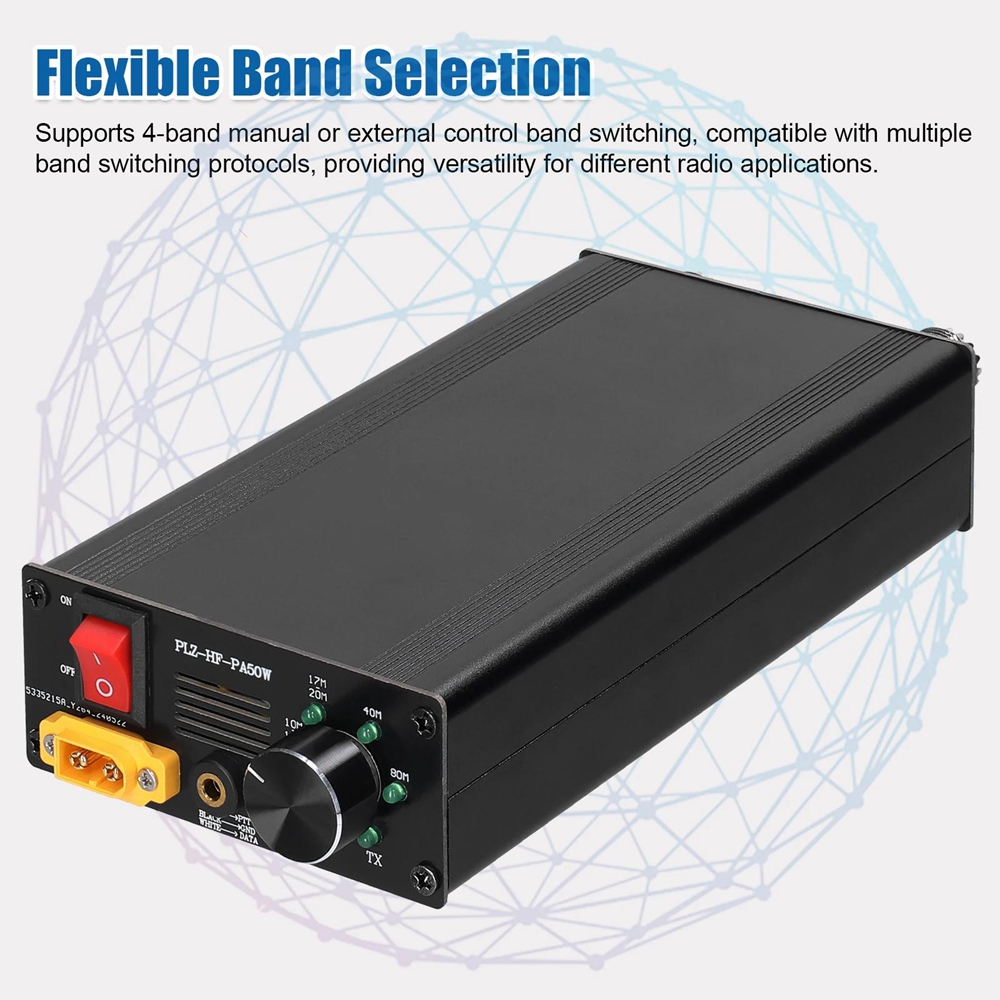

- Flexible Band Selection: Supports 4-band manual or external control band switching, compatible with multiple band switching protocols, providing versatility for different radio applications.

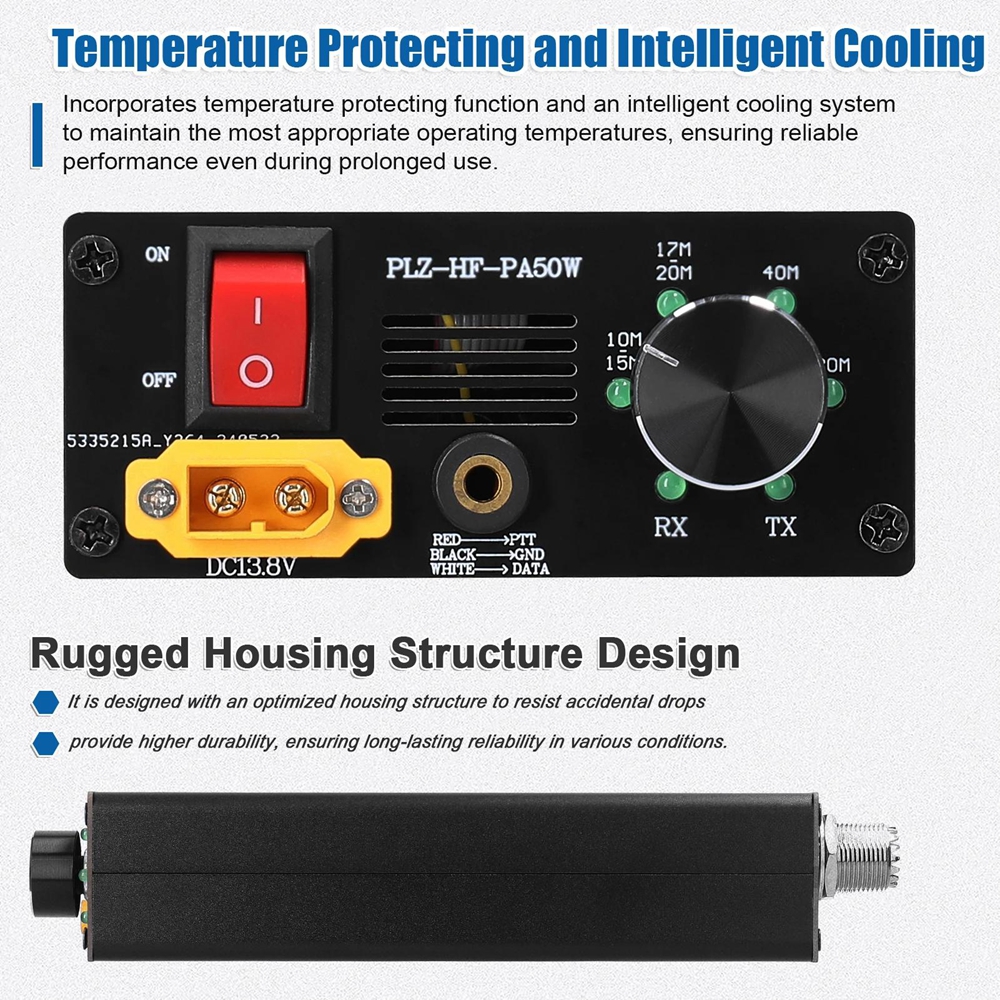

- Temperature Protecting and Intelligent Cooling: Incorporates temperature protecting function and an intelligent cooling system to maintain the most appropriate operating temperatures, ensuring reliable performance even during prolonged use.
- Rugged Housing Structure Design: It is designed with an optimized housing structure to resist accidental drops and provide higher durability, ensuring long-lasting reliability in various conditions.
- Compact and Portable: Features a compact design with a power output of 40-55W at 13.8V, making it suitable for portable shortwave radio setups and field operations.
Specifications:
- Frequency range: 2MHz - 30MHz
- Input power: 1 - 5W
- Input VSW: ≤2.0 at 50ohms
- Output power: 40 - 55W at 13.8V
- Output impedance: 50ohms
- Power supply voltage: 12 - 15V; 13.8V (typ.)
- Current consumption: ≤12A
- Working temperature: ≤ 65℃
Package Included:

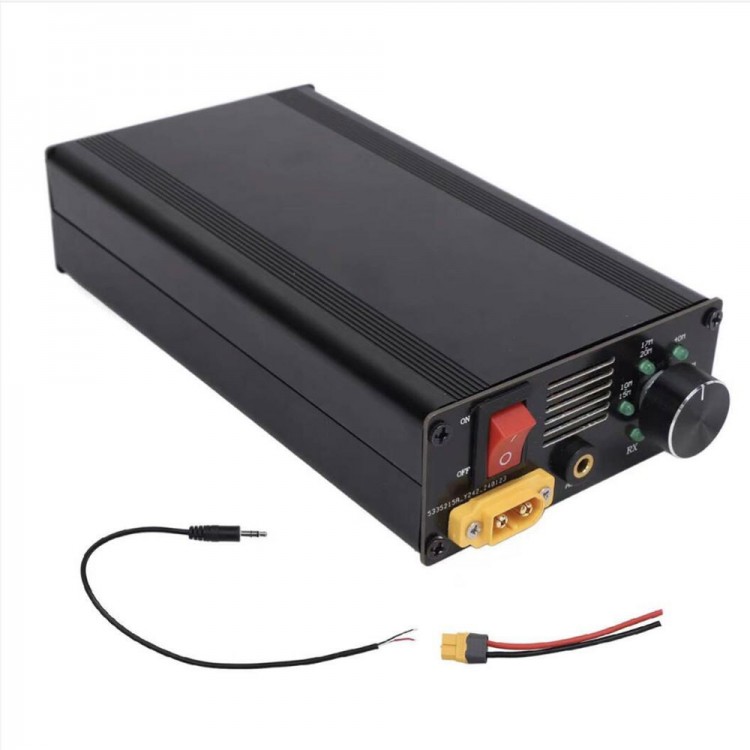

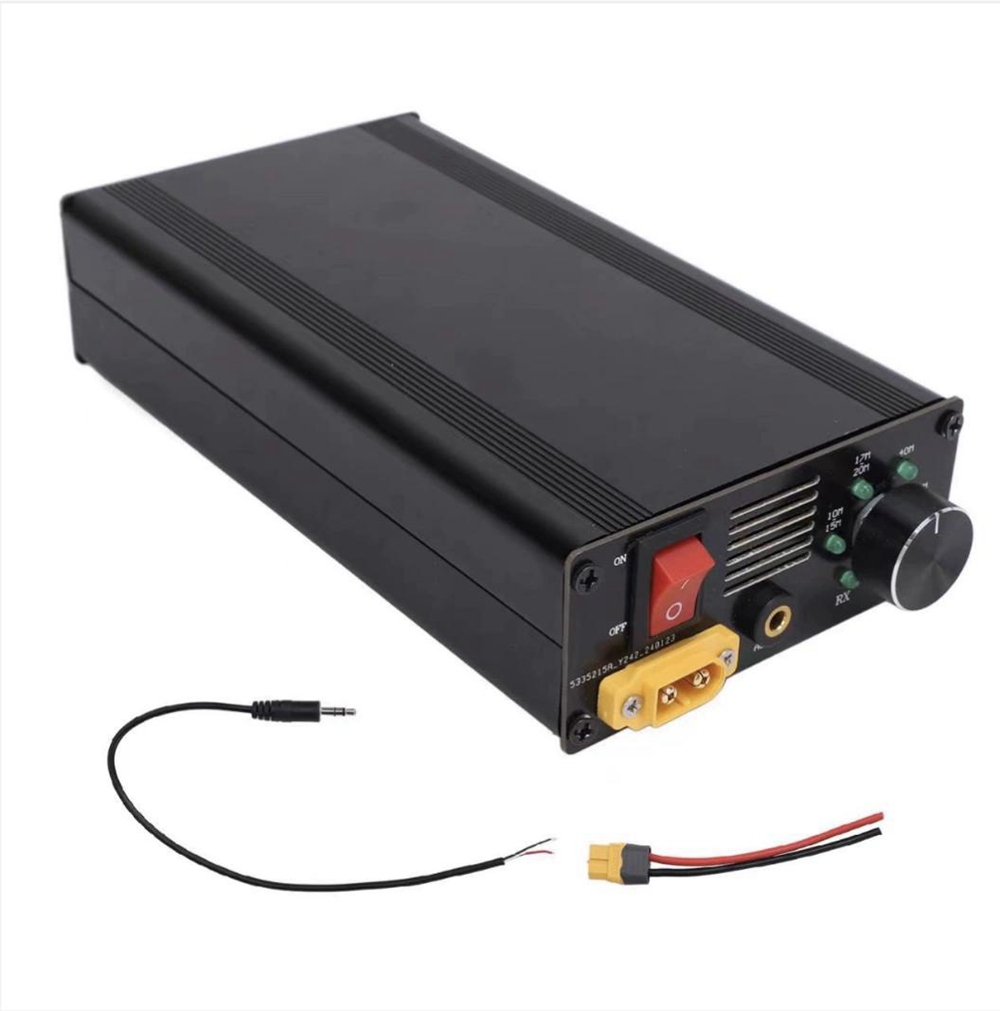

- 1 x Power Amplifier
- 1 x Power Cable
- 1 x Controlling Cable
