512 Canal USB-DMX512 CYT-S5102 Stage LED Lighting Controller Console Support MA Freestyler+3D

512 Canal USB-DMX512 CYT-S5102 Stage LED Lighting Controller Console Support MA Freestyler+3D

Product Description:
- The USB-DMX512 (S5102) light controller is a simple, convenient and flexible design that connects with the computer USB interface and uses the computer light to control software. It controls all kinds of DMX512 lamps and equipment.
- It adopts the international advanced technology, conforms to the DMX-512/1990 international standard protocol, and outputs the standard DMX512 signal.

Functional use:
- It can be used for wedding performances, stage performances, KTV bars, advertising signboards, sand table exhibition halls, building lighting and other places.
- Through the computer software,it can simultaneously control computer controlled lighting, laser lights, color changer, PA lights, smoke machines, monochrome and full-color LED lamps, magic crystal ball with a DMX signal equipment,etc.

Product characteristics:Adopt Freestyler's normal and legal high-speed interface to transmit data.The high and low versions include the interface existence. It has powerful function, stable performance, high speed stability and no delay!The Freestyler pipe network is available at any time to download the latest version of Freestyler), the latest version of FreestylerX2 can output 1024 channel DMX512 signal.

Product Characteristics:
- It can support a variety of lighting control software, such as Avolites, pearl 2004, TigerTitan simulator, SUNLITE, Daslight, Martin, LightJockey, GrandMA, onPC, GrandMA2, onPC, LumiDesk and other software. As a result, customers can use these software to control light as well as analog learning of imported high-end software and console

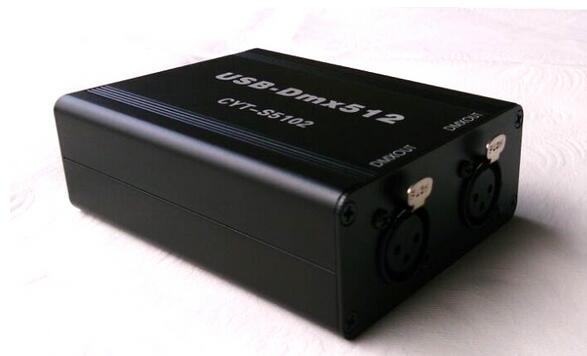

- The shell is black, sand blasting aluminum alloy, clear handwriting, no paint, no rust, light, better anti-interference!

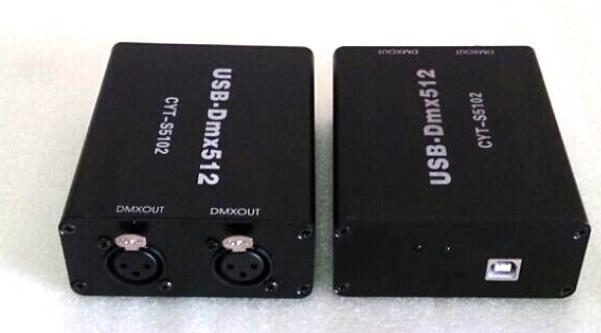

- The DMX512 signal transmission scheme complie with international standards (output with the female XLR seat) with no adapter, convenient use, and anti disturbance ability more stable! This product uses antiskid XLR base.

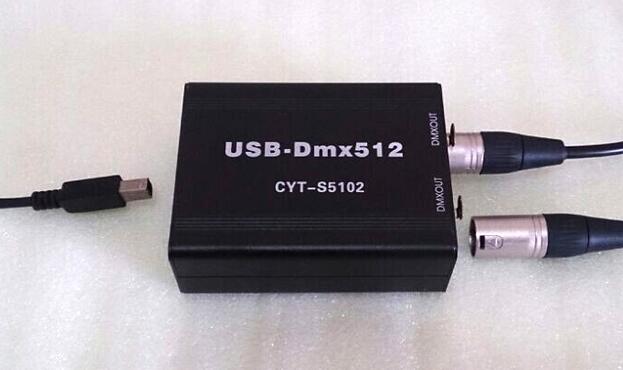

- Double XLR stronger design,stronger driving capability. It is safer to use.Signal isolation amplifier,more affordable price. a controller= another control+a amplifier.That's to say that the product adds a spare interface.Eventhouth one accidentally burned out,there still has another one.
- It can be freely programmed and stored in the pre-designed lighting effects in the computer software.The next time you continue to use the play,  you also can field operate and control.
- It supports hot plug, double seat XLR output, with photoelectric isolation.It is safe to use and support Windows XP/VISTA/win7(32 and 64 bit) /win8/Win10 operating system.The Freestyle3.6.2 Chinese version, give the tutorial, a variety of international distribution for simulation console software.
- Support USB1.0 and USB2.0 (remind: the standard DMX512 agreement and its transmission rate is 250KB/p, and the USB transmission rate is the slowest in the world is 1.5X1024KB/P, so USB/DMX512=6.14 (Times).That is to say the USB transmission of DMX512 signal the slowest in the world are more than sufficient). Our controller supports USB2.0, far more than the rate. So don't worry about the transmission speed.
- Support hot plug, plug USB line program lighting arbitrary during the software operation,will not affect the playing. Note:You need to install hardware driver the first time.
- With photoelectric isolation protection design,it is safe and computer hardware and lighting equipment will not be damaged.
- If the simple control software can not meet your requirements, we also provide SDK development kit.It is easy for the second development of control software.
- The music rhythm can trigger the lighting effect, and the music can be synchronized.
- A USB signal input, a dual XLR signal output, equal to 1 Taiwan Taiwan 1 2 amplifier controller +1
- It can control 512 channel lamps and lanterns, if according to 16 channel lamps and lanterns computation, may control 32 computer lamps. And our baby has been upgraded to dual 512 channel, which can prevent the need unpreparedly can also control more of the same lamp. This is one of the incomparable advantages of other products on the market
- It has been Chinesization, and it can control many lamps and lanterns simultaneously
- Freestyler is a free, internationally renowned, powerful lighting effects design software, and many lighting designers are using it all over the world. Software for the original version of the English version, but we have now finished it into Chinese version, and we have finished the Chinese version of the long-term trial.It is very stable.
- Freestyler also has a large library of lights.
- Exclusive distribution of walking lights effect (adjustable speed)

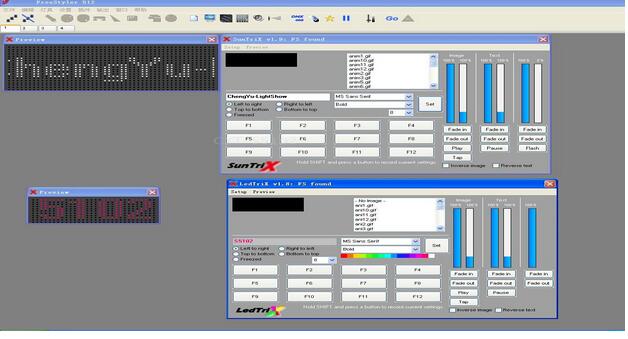

- This software also has a plug-in LED matrix, you can display a variety of text. Distribution 3DMagic demo software or multilingual version, including the Chinese version.

Freestyler Software Download:Click here

Operation procedure:
- Insert the CD to the computer
- Connect the controller to the USB interface for the computer.
- Install the Freestyler software
- Connect the controller to the lamps

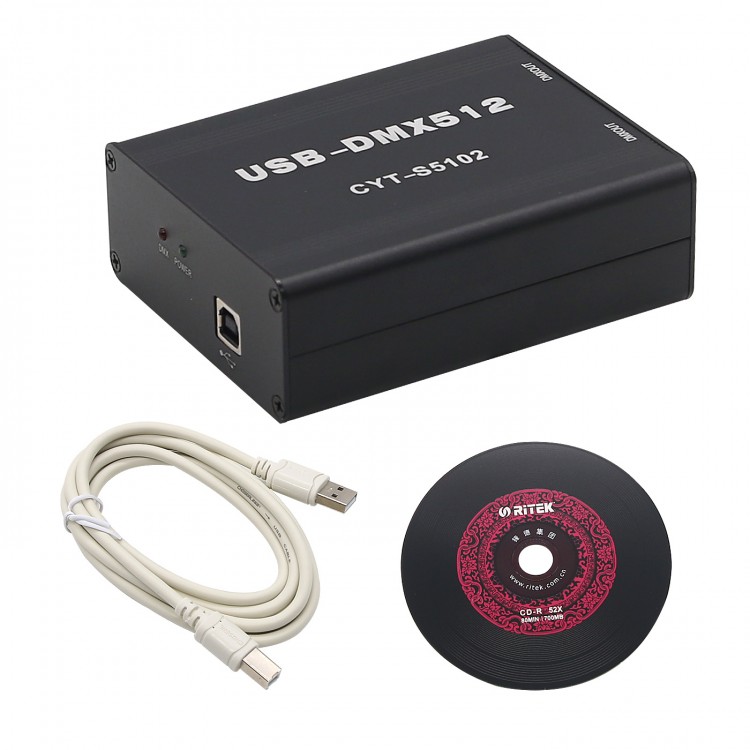

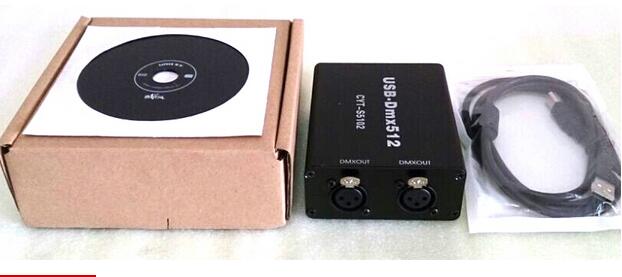

Package List:
- 1 x A USB-DMX512 (S5102) host
- 1 x A USB data line
- 1 x A CD-ROM (containing a number of famous lighting software installation files and Freestyler tutorials)
