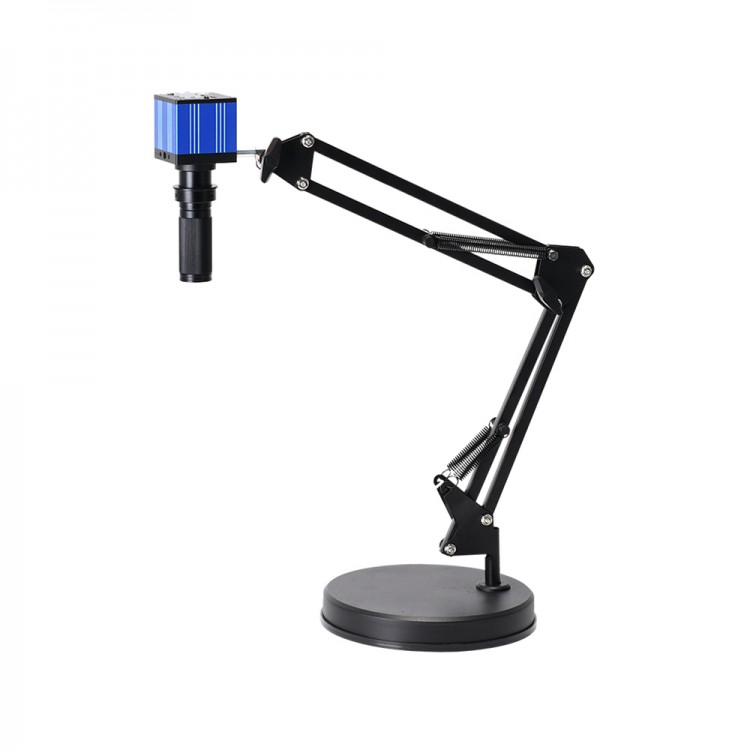

51MP 1080P 2K USB Industrial Microscope Camera Big Visual Field 120X Lens For PCB Soldering Repair

51MP 1080P 2K USB Industrial Microscope Camera Big Visual Field 120X Lens For PCB Soldering Repair

Features:
1. Widely used in the fields of microelectronics, molds, jewelry, printing, mobile phone repair schools, etc.
2. Especially suitable for observing the surface microstructure of large objects
3. Using highquality materials which are strong and durable, enjoying a long service life
4. HD camera with 51MP 1/2.9 inch sensor for CMOS, with HDMI USB port
5. Strict quality control and quality assurance, high safety factor, can be used with peace of mind

Specifications:
- Item Type: Microscope Camera
- Module: 2037D
- Sensor: 51MP for CMOS
- Optical Format: 1/2.9inch
- Pixel Size: 1.335μmx1.335μm
- Interface: HDMI (Type A). USB (Type B). Small memory card
- HDMI Image Resolution: 51MP
- Video Resolution: 2K at 30FPS 1080p at 60FPS
- HDMI Resolution: 1920 x 1080p 60FPS
- HDMI Scale: Support 4:3,16:9 and 16:10 screen
- USB2.0 (Drive Free): 1920 x 1080 at 30FPS 1280 x 720 at 30FPS 640 x 480 at 30FPS
- Small Memory Card: Up to 128GB (not included)
- AWB: AWB color correction/automatic/manual
- R.G.B value setting independent
- Exposure: Automatic/manual. AE value can be set
- Cross Line: 8 lines, color, width, position can be set
- Scale Line: 2 lines.
- Dotted Line: 2 lines, color, width, position can be set
- Sharpness Contrast Color Gain: Support
- Mono Negative Film: Support
- Mirror: Horizontal and vertical mirror
- Language: English/Simplified Chinese/French/Spanish/Japanese/German And other languages
- Digital Zoom: Support
- Infrared Remote Control: Support
- Voltage Input: DC 12V
- Power Supply Voltage: Input: AC100-240V
- Output: DC12V
- Power Consumption: Maximum 0.15W 12V, 0.12A
- Lens Interface: C/CS port

120X Lens:
- Magnification Power by 0.12-2X (about 8X-120X on the display)
- Visual field: 2.4-66mm/0.09-2.6"
- Zoom ratios: 5:1
- Size: 100 x 28mm/3.9 x 1.1" (LxDia.)
- Weight: 100g (0.2 lb)

Problems & Solutions:
LCD with no video or flickering
1. Check the power supply. Check if the red LED lights up. Press Power Key to move it up.
2. Check the lens cover. Increase lighting.

LCD has black bars and image distortion
1. Change the resolution of LCD
2. Change the camera resolution

Dirty spots
1. Check the camera and lens, find the dust, and then cleanly it with absolute ethanol or detergent

Package Included:
- 1 x 51MP Microscope Camera
- 1 x HDMI Cable
- 1 x USB Cable
- 1 x IR Remote control
- 1 x Power Adapter
- 1 x Stand
- 1 x 120X Lens

Note:
- Battery for the remote control is not included. A CR2025 button battery is recommended.
