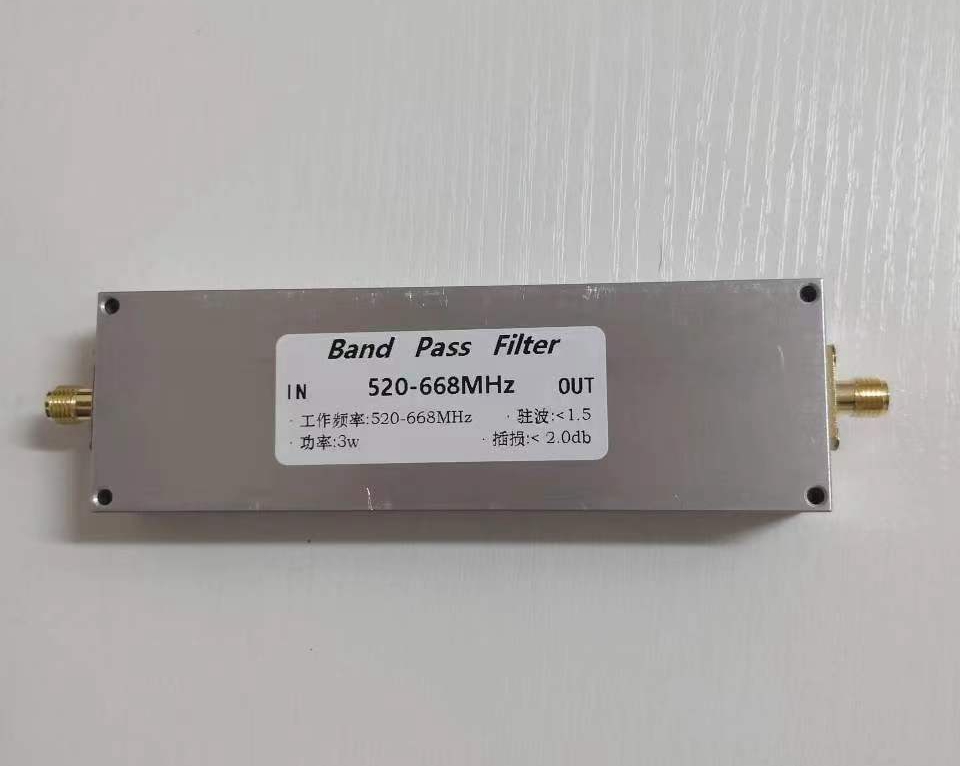

520 - 668MHz 3W BPF High Quality Band Pass Filter with SMA Female Connector Radio Accessory

520 - 668MHz 3W BPF High Quality Band Pass Filter with SMA Female Connector Radio Accessory

Application:
- This bandpass filter is suitable for using in close proximity to medium wave radio stations or when subjected to strong medium wave interference, as well as in situations where short wave radio stations interfere with FM radio receivers during transmission. In order to minimize electromagnetic interference from the surrounding environment, this bandpass filter can be connected, which will greatly improve the signal-to-noise ratio.

Usage:
- Connect this band-pass filter in series between the antenna and the receiver. If you want to receive remote FM stereo radio, you can add LNA (not included) between the filter and the receiver.

Specification:
- Input impedance: 50 - 75ohm
- Output impedance: 50 - 75ohm

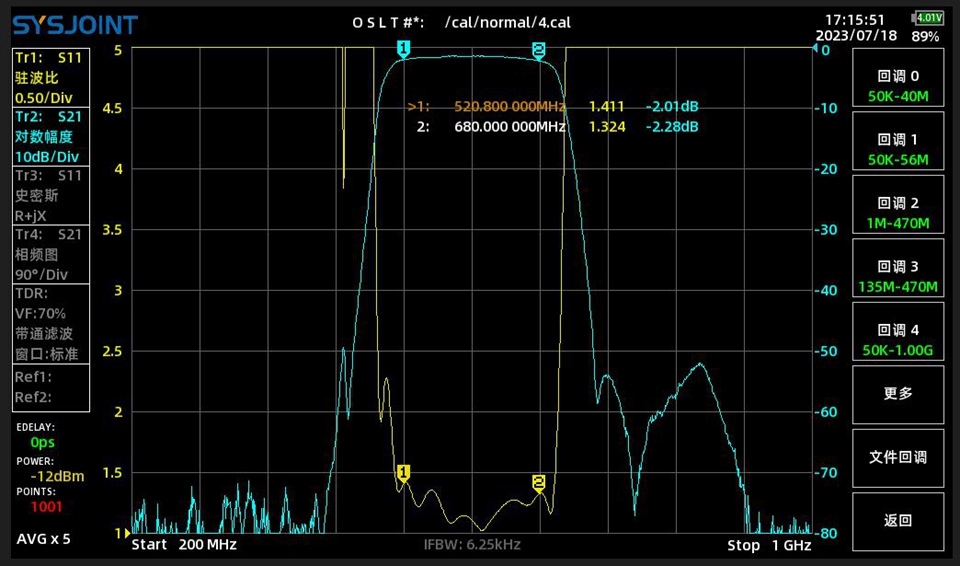

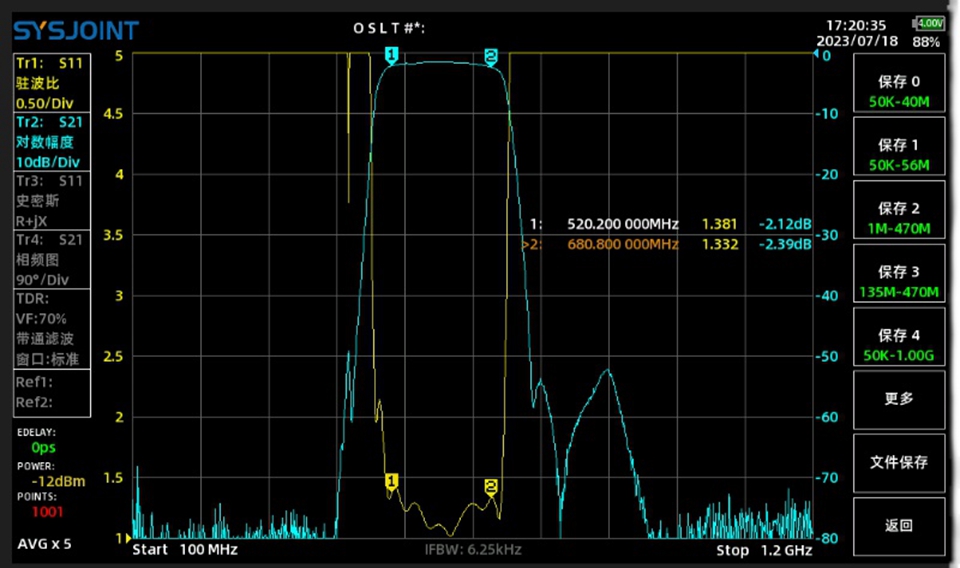

- Bandwidth: 520 - 668MHz
- Insertion loss: <2.0dB
- TX port for radio, ANT port for antenna
- Power: 3W (for any mode)
- SWR: < 1.5

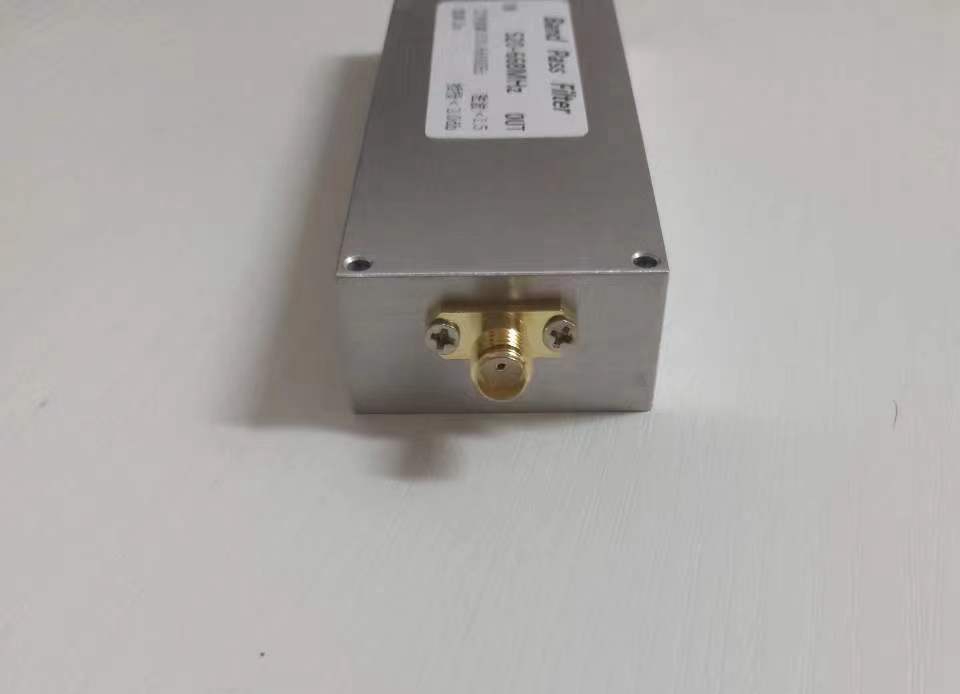

- Interface: SMA female connector
- Size: 130 x 34 x 14mm (installation hole size: 105 x 29.5mm)
- Weight: 95g

Note:
- If the interference comes from within the pass band of 520-668MHz, this filter will not have any effect.

Package Included:
- 1 x Band Pass Filter
