520X Fiber Fusion Splicer Machine w/5" LCD Touch Screen 800x480 Innno View3

520X Fiber Fusion Splicer Machine w/5" LCD Touch Screen 800x480 Innno View3

Description:
View3 is one of the most reliable fusion splicers on the market, featuring precise core alignment technology and the world's highest magnification performance. View3 uses an industrial-grade quad-core CPU, which is 8 times faster than that of the previous generation IFS series. Its GPU has a built-in WcatPro graphics accelerator for faster response. Simple and intuitive graphics operating system and its 5-inch 800x480 high-resolution LCD capacitive touch screen bring in greater convenience. With outstanding performance and unbeatable price, View3 is a must for you.

Furthermore, View3 is compatible with virtually all optical fiber cables (250μm, 900μm, 2.0mm, 2.4mm, 3.0mm, home optical fiber cables) and SOC (hot-melt connectors).

By double-tapping the display, clients may zoom in the fiber image to the industry’s largest magnification of 520x. Fiber condition may be very readily monitored with unaided eyes.

Features:
- Precise core alignment splicing method with V-type groove
- Maximum magnification up to 520X
- 5 Inch high resolution capacitive colorful touch screen
- 3 LEDs with white light for easy operation at night
- Without reflector glass, it cuts down core alignment time, improving working efficiency
- Ceramic hammer enhances its durability
- Removable SOC heating fixture
- Waterproof, dust-proof, windproof performance enable uses in severe environment
- Shorten heating time

Parameters:
- Model: View3
- Dimensions: 177 x 147 x 149mm
- Weight of Main Unit: 1.90kg
- Applicable Core Number: Single core
- Applicable Fiber Type: SM (ITU-T G.652&G.657) / MM (ITU-T G.651) / DS (ITU-T G.653) / NZDS (ITU-T G.655)
- Applicable Fiber Diameter: 0.25 ~ 3.0 mm / home optical fiber cables
- Fiber Placement & Cutting Length: Coating 0.125 ~ 1mm; Cutting length 8 ~ 16mm
- Welding Mode: Preset 7 welding modes / up to 128 welding modes
- Typical Welding Loss: SM: 0.03dB / MM: 0.02dB / DS: 0.05dB / NZDS: 0.05dB / G.657: 0.03dB (measured by the cut-off method of ITU-IT standard)
- Return Loss: > 60dB
- Lighting: 3 White LEDs
- Splicing Time: Quick Mode: 7S; Standard Mode: 9S
- Estimated Splice Loss: Available
- Welding Length: 20 to 26mm
- Heating Time: Preset 5 Heating Modes/Typical Heating Time: 30s
- Results Storage: The latest 2000 records
- Tension Test: 1.96 to 2.25N
- Operating Conditions:
  Operating Altitude: 0 to 5000m above sea level;
  Relative Humidity: 0 to 95%;
  Temperature: -10 to 50℃
  Max. Wind Speed: 15m/s.
- Storage Environment: Relative humidity 0 to 95%, -40 to 80℃
- Display: 90°Dual-camera, 5.0'' 800x480 high resolution capacitive touch screen
- Magnification & Display of Optical Fiber: X, Y, XY, X/Y; Double tapping to reach 520X
- Power Supply: Input AC 100 ~ 240V, DC 9 ~ 14V
- Operating Way: Via buttons & touch screen
- Self-adapted Discharge: Automatically adjust in accordance with the air pressure and environment temperatures
- Electrode Lifespan: Discharge up to 3500times
- Interface: USB2.0/MINI USB

Package Included:

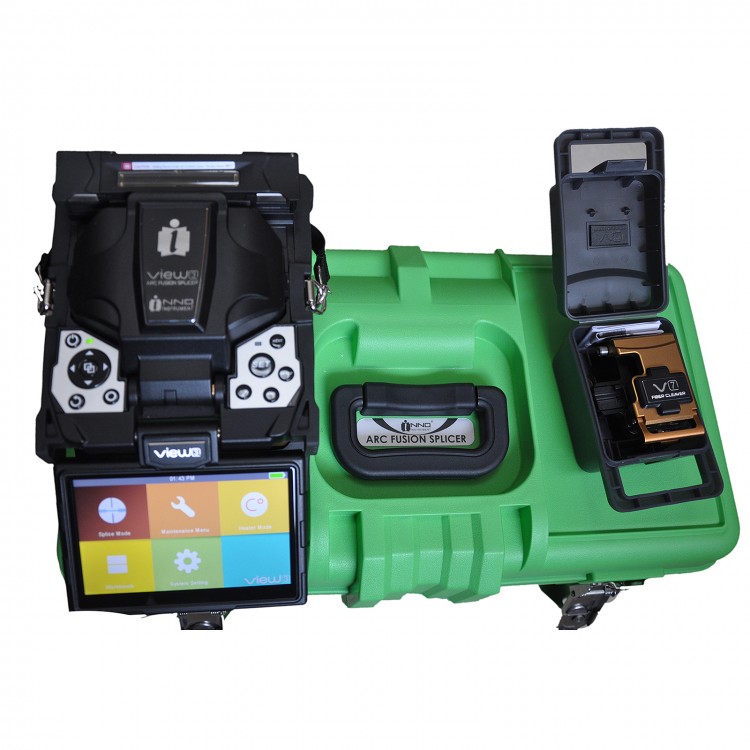

- 1 x Fusion Splicer
- 1 x V-7 Fiber Cutter
- 1 x FH-SOC Fixture
- 1 x JS-180300 Charger Adapter
- 1 x CG-22 Cooling Rack
- 1 x E-27 Electrode Rod
- 1 x CD
- 1 x ACC-25 Power Cord for Charger Adapter
- 1 x NBX-45 Carry Case
- 1 x DC300 Pliers
- 1 x HT-SP Split Heating Groove
